Product Description

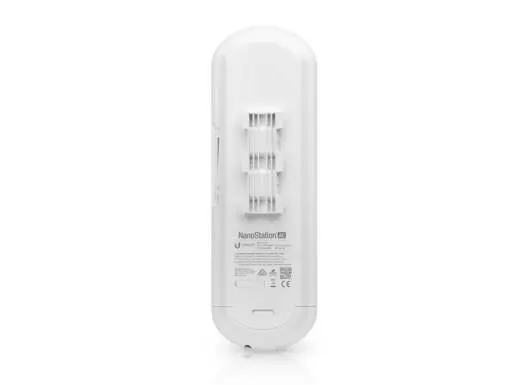

Ubiquiti NanoStation 5AC (NS-5AC)
High-Performance Outdoor Wireless CPE – 5GHz airMAX AC
The Ubiquiti NanoStation 5AC is a powerful and cost-effective outdoor wireless CPE designed for long-range point-to-point and point-to-multipoint links. Built on airMAX AC (MIMO TDMA) technology, it delivers stable, low-latency performance with real-world throughput of 450+ Mbps over distances of 15+ km.
With its compact all-in-one design, integrated high-gain antenna, and Gigabit Ethernet connectivity, the NS-5AC is an ideal solution for WISPs, CCTV backhaul, campus networks, and rural broadband deployments.
Key Features
5GHz airMAX AC with MIMO TDMA protocol
450+ Mbps wireless throughput
Long-range performance up to 15+ km
Integrated 16 dBi directional antenna

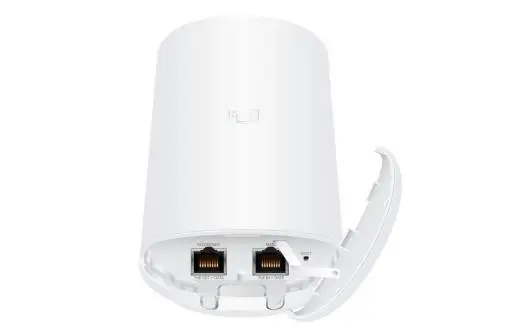

Dual Gigabit Ethernet ports (secondary port with software-enabled PoE)
Dedicated Wi-Fi management radio for quick setup
Wide channel support: 10–80 MHz
Rugged UV-resistant outdoor enclosure
Advanced RF analytics with airOS® 8
Why Choose NanoStation 5AC?
High performance at low cost – perfect for scalable deployments
Compact & lightweight – minimal visual impact and easy installation
Reliable outdoor operation – designed for harsh environments
Flexible networking – power external devices such as IP cameras via PoE
Specifications
System
| Item | Details |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Operating System | airOS® 8 |
Wireless
| Item | Details |
| Wireless Technology | airMAX AC (MIMO TDMA) |
| Operating Frequency | 5 GHz |
| Wireless Throughput | 450+ Mbps |
| Channel Bandwidth | 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz |
| Antenna Gain | 16 dBi |
| Beamwidth | 45° |
| Polarization | Dual Linear |
| Max VSWR | 1.6 : 1 |
Networking
| Item | Details |
| Ethernet Ports | 2× 10/100/1000 Mbps |
| Secondary Port | Software-enabled PoE output |
Power
| Item | Details |
| Max Power Consumption | 8.5W |
| Power Supply | 24V 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 802.3af Alternative A / 24V Passive PoE |
Mechanical & Environmental
| Item | Details |
| Enclosure | UV-Resistant Polycarbonate |
| Mounting | Pole Mount Kit Included |
| Operating Temperature | -40 to 70°C |
| Operating Humidity | 5–95% (Non-condensing) |
| Dimensions | 257 × 84 × 41 mm |
| Weight | 233 g |
