Product Description

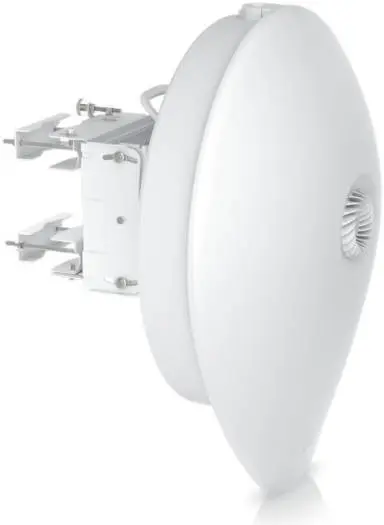

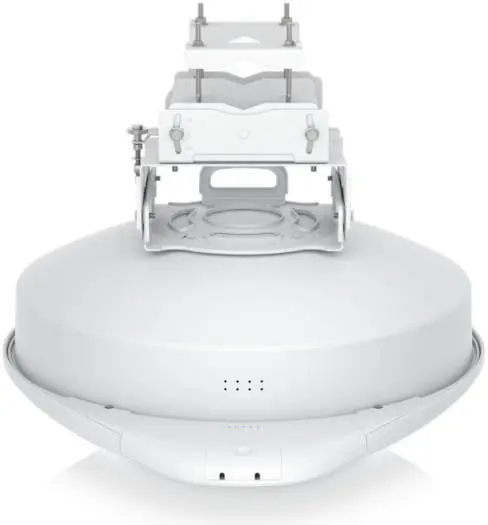

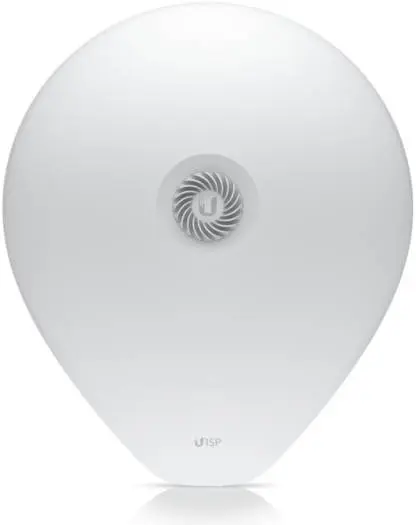

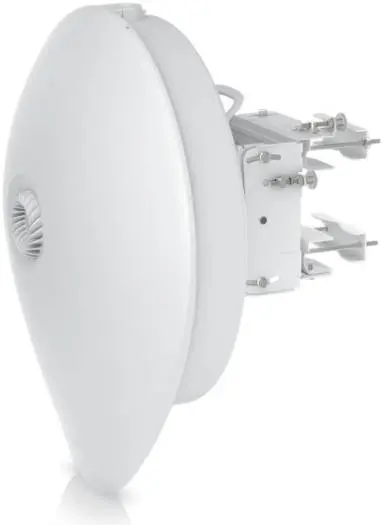

Ubiquiti airFiber 60 Xtreme-Range Network Bridge (AF60-XR)
The airFiber 60 Xtreme-Range (AF60-XR) from Ubiquiti is a multi-gigabit, 60 GHz point-to-point bridge engineered to push ultra-high throughput across long distances up to 15+ km. Built on Wave technology, it delivers 5.4 Gbps total throughput (2.7 Gbps duplex) over a highly focused beam—ideal for carrier backhaul, campus interconnects, and data-hungry enterprise links.
To ensure reliability in all conditions, the AF60-XR integrates a weather-resilient 5 GHz backup radio (800+ Mbps) that automatically maintains connectivity when 60 GHz conditions are challenged. Precision is simplified with an included alignment mount, while integrated GPS and Bluetooth streamline synchronization, discovery, and mobile setup through UISP.
Key Features
Ultra-long-range PtP bridge: 15+ km link distance
High capacity: 2.7 Gbps duplex (5.4 Gbps aggregate)
Primary 60 GHz radio with Wave technology
Automatic 5 GHz backup radio for weather resilience
High-speed uplinks: (1) GbE RJ45 + (1) 1/10G SFP+
Precision alignment mount included
Integrated GPS & Bluetooth for fast deployment
IPX6 weatherproofing for harsh outdoor environments
Performance & Reliability
Narrow 1.4° beamwidth (azimuth & elevation) for excellent interference rejection
Dual-radio architecture maintains uptime during rain fade
WPA2-PSK (AES) encryption for secure links
UISP management with built-in tools: alignment, discovery, speed test, and monitoring
Technical Specifications (Highlights)
| Category | Details |
| Processor | Quad-core ARM® Cortex-A53 @ 1.4 GHz |
| Memory | 1 GB DDR3L |
| Max Throughput | 2.7 Gbps duplex |
| Max Range | 15+ km |
| Primary RF | 60 GHz (57–71 GHz, region-dependent) |
| Backup RF | 5 GHz (802.11ac) |
| Network Ports | 1× GbE RJ45, 1× 1/10G SFP+ |
| Power | 48V DC, 0.65A PoE (included) |
| Power Consumption | 24 W (max) |
| Weatherproofing | IPX6 |
| Operating Temp | −40 to 55 °C |

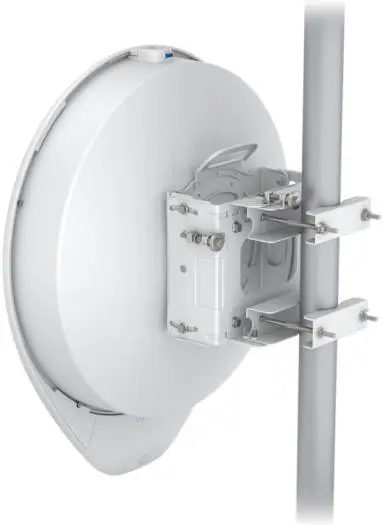

| Mounting | Precision alignment kit (included) |
| Management | UISP (Web, iOS, Android) |
