Product Description

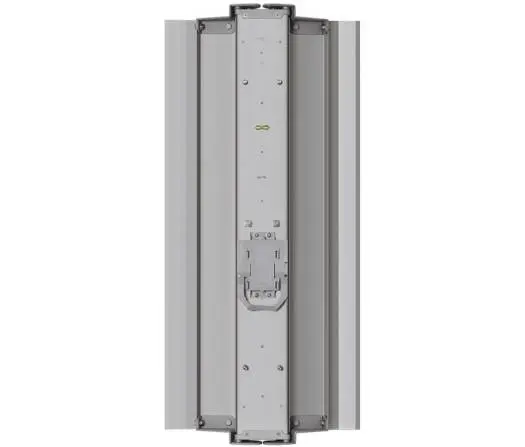

Ubiquiti Networks airMAX Titanium 2.4 GHz Sector Antenna (AM-V2G-TI)
The airMAX Titanium AM-V2G-TI from Ubiquiti is a carrier-class 2.4 GHz sector antenna engineered for Point-to-MultiPoint (PtMP) base station deployments. Designed to integrate seamlessly with Rocket M2 and Rocket M2 Titanium radios, this antenna delivers exceptional RF isolation, flexible beamwidth control, and rugged outdoor durability—ideal for high-capacity WISP networks and dense co-location sites.
Featuring a variable beamwidth (60° / 90° / 120°), the AM-V2G-TI allows operators to precisely shape coverage to match sector layouts and minimize interference. Its dual-linear 2x2 MIMO design, high gain (up to 17 dBi), and advanced airMAX TDMA support ensure predictable throughput, low latency, and scalable performance across wide coverage areas.
A built-in Rocket mount and protective titanium shroud simplify installation while shielding the radio from harsh environmental conditions.
Key Features
Carrier-class 2x2 MIMO PtMP sector antenna
2.3 – 2.6 GHz frequency range (ideal for 2.4 GHz deployments)
Adjustable beamwidth: 60°, 90°, or 120°
High gain: up to 17 dBi (beamwidth dependent)
Advanced RF isolation for reduced co-location interference
Built-in Rocket™ mount for fast, tool-free installation
Protective titanium shroud for outdoor durability
Dual RP-SMA connectors (weatherproof)
Pole-mount kit included
Performance & RF Design
airMAX TDMA technology for superior scalability and latency control
High cross-polarization isolation (25 dB typical) for cleaner links
Electrical downtilt of 4° to optimize ground-level coverage
Optimized sector pattern for high-capacity multipoint networks
Technical Specifications
| Parameter | Details |
| Model | AM-V2G-TI |
| Frequency Range | 2.3 – 2.6 GHz |
| Beamwidth Options | 60° / 90° / 120° |
| Gain | 17 dBi @ 60° / 16 dBi @ 90° / 15 dBi @ 120° |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB (typical) |
| Electrical Downtilt | 4° |
| Max VSWR | 1.5:1 |
| RF Connectors | 2 × RP-SMA (weatherproof) |
| Compatible Radios | Rocket M2, Rocket M2 Titanium |
| Wind Survivability | 200 km/h (125 mph) |
| Dimensions | 773 × 372 × 120 mm |
| Weight | 6.4 kg (with mount) |
| Mounting | Pole mount (included) |
| Certifications | CE, FCC, IC |
