Product Description

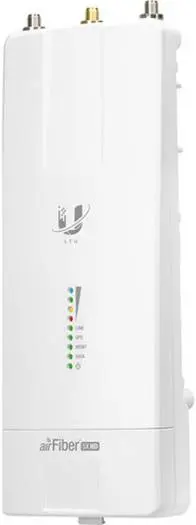

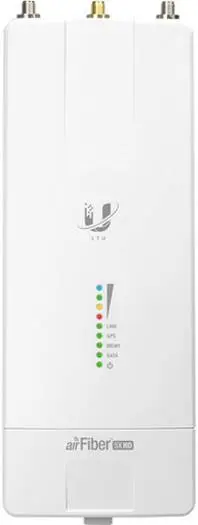

Ubiquiti Networks airFiber 5XHD – 5 GHz Carrier-Class Backhaul Radio (AF-5XHD)
The airFiber AF-5XHD from Ubiquiti is a high-performance carrier radio purpose-built for long-range Point-to-Point (PtP) backhaul and demanding WISP deployments. Powered by LTU (Long-Term Ubiquiti) technology, the AF-5XHD breaks free from traditional Wi-Fi chipset limitations, delivering exceptional spectral efficiency, ultra-low latency, and rock-solid reliability—even in congested RF environments.
Operating across a wide 4.8–6.2 GHz frequency range with full DFS support, the airFiber 5XHD enables operators to customize new backhaul links or upgrade existing ones without replacing antennas. Its Hybrid Division Duplexing (HDD) and high-order modulation (up to 4096-QAM) achieve 1+ Gbps throughput and clean, predictable performance over links up to 100 km (62 miles).
Designed for real-world carrier use, the AF-5XHD features IP67 weatherproofing, GPS synchronization, and clean power output for superior co-location and network scaling.
Key Features
Carrier-class 5 GHz PtP backhaul radio
LTU technology for industry-leading spectral efficiency
Up to 1.34 Gb/s throughput with low latency
Range up to 100 km (62 miles)
Wide frequency support: 4.8 – 6.2 GHz (DFS certified)
Hybrid Division Duplexing (HDD)
GPS Sync for scalable, interference-aware networks
IP67-rated enclosure for extreme outdoor conditions
Clean power output ideal for co-location sites
Performance & Technology Highlights
Advanced Modulation: Up to 4096-QAM for maximum capacity
Spectral Efficiency: Up to 21.2 bps/Hz
Flexible Channel Widths: 10 / 20 / 30 / 40 / 50 / 60 / 80 / 100 MHz
High Packet Processing: 2+ million PPS
Unlicensed Band Operation with carrier-grade performance
Durability & Deployment
IP67 weather resistance – water- and dust-proof for all climates

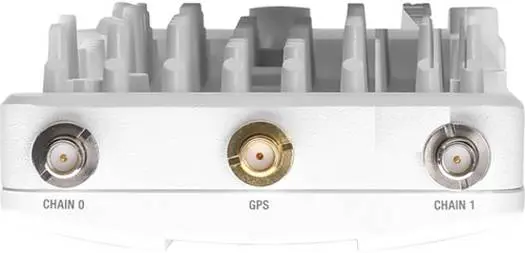

External GPS antenna (included) with magnetic base
UNMS / UISP Bluetooth support for fast field setup
Optimized for tower co-location and dense RF environments
Technical Specifications
| Parameter | Details |
| Model | AF-5XHD |
| Frequency Range | 4.8 – 6.2 GHz |
| Max Throughput | 1+ Gbps (up to 1.34 Gb/s) |
| Max Range | Up to 100 km (62 miles) |
| Modulation | Up to 4096-QAM |
| Spectral Efficiency | 21.2 bps/Hz |
| Channel Widths | 10–100 MHz |
| Duplexing | Hybrid Division Duplexing (HDD) |
| GPS | External (included) |
| Weather Rating | IP67 |
| App Support | UNMS / UISP (Bluetooth) |
