Product Description

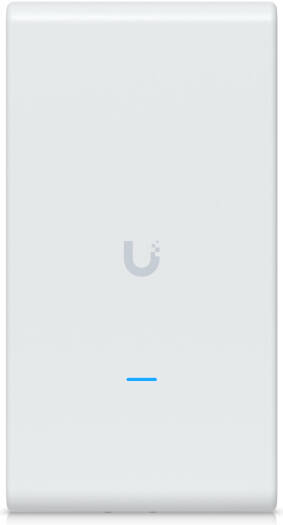

Ubiquiti UniFi U6 Mesh Pro (U6-Mesh-Pro)
High-Performance Indoor & Outdoor Wi-Fi 6 Mesh Access Point
The Ubiquiti UniFi U6 Mesh Pro is a powerful Wi-Fi 6 (802.11ax) mesh access point built for demanding indoor and outdoor deployments. Designed to deliver high throughput, low latency, and excellent client capacity, it supports 350+ concurrent devices while maintaining stable performance in high-density environments.
Featuring a rugged IPX6-rated weatherproof enclosure, dual-band MU-MIMO antennas, and low power consumption of just 9W, the U6 Mesh Pro is ideal for campuses, warehouses, hotels, public venues, and outdoor areas requiring reliable, scalable wireless coverage.
Key Features
Wi-Fi 6 (802.11ax) dual-band performance
Supports 350+ connected devices
Indoor & outdoor deployment with IPX6 weatherproofing
High data rates up to 2.4 Gbps on 5 GHz
Dual GbE RJ45 ports for flexible networking
PoE powered with low 9W power consumption
2×2 MU-MIMO on both 2.4 GHz and 5 GHz
Elegant design with white/blue status LEDs
Performance & Wireless
| Item | Details |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Max Data Rate | 2.4 GHz: 573.5 Mbps / 5 GHz: 2.4 Gbps |
| MIMO | 2×2 DL/UL MU-MIMO |
| Max TX Power | 2.4 GHz: 22 dBm / 5 GHz: 27 dBm |
| Antenna Gain | 8 dBi (2.4 GHz & 5 GHz) |
| BSSID | Up to 8 per radio |
| Concurrent Clients | 350+ |
Networking & Power
| Item | Details |
| Ethernet Ports | 2× GbE RJ45 |
| Power Method | PoE |
| Supported Voltage | 42.5–57V DC |
| Max Power Consumption | 9W |
| Power Source | UniFi PoE switch or 48V PoE adapter |
Advanced Network Features
| Feature | Support |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
Mechanical & Environmental
| Item | Details |

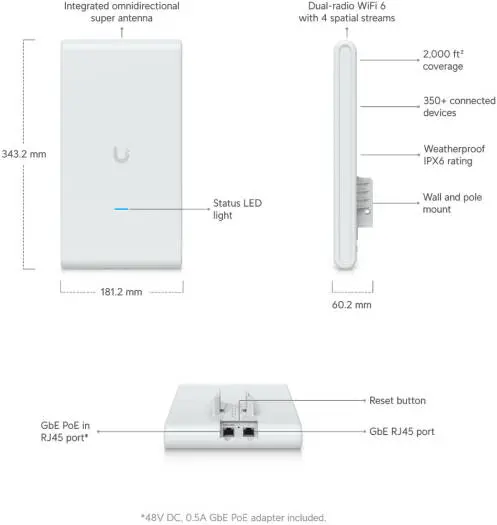

| Dimensions | 343.2 × 181.2 × 60.2 mm |
| Weight | 819 g |
| Enclosure | UV-stabilized polycarbonate |

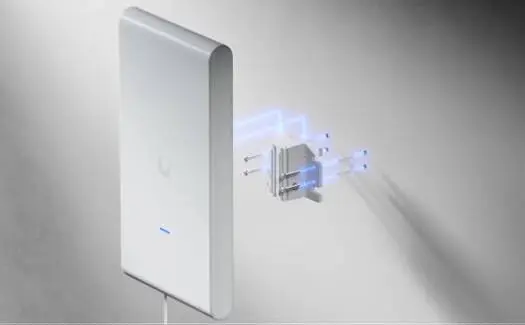

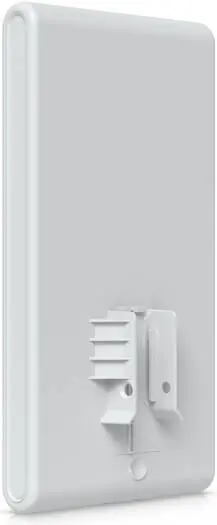

| Mounting | Wall & pole (kits included) |
| Pole Diameter | 1–2.5" |
| Operating Temperature | -30 to 60°C |
| Operating Humidity | 5–95% (non-condensing) |
| Weatherproofing | IPX6 |
Certifications
CE • FCC • IC
