Product Description

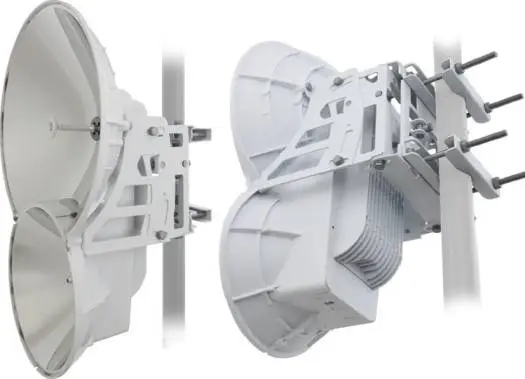

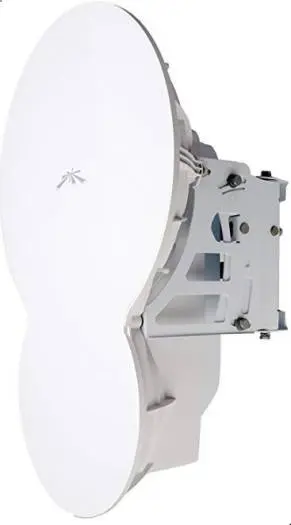

Ubiquiti airFiber 24 (AF-24)
Carrier-Class 24 GHz Point-to-Point Gigabit Radio
The Ubiquiti airFiber 24 (AF-24) is a carrier-grade point-to-point wireless radio engineered to deliver fiber-like Gigabit performance over long distances. Operating in the 24 GHz licensed/unlicensed band, it provides exceptional throughput, ultra-low latency, and rock-solid reliability—making it ideal for ISP backhaul, enterprise inter-building links, and mission-critical network connections.
With support for GPS synchronization, advanced RF status monitoring, and an integrated high-gain split antenna, the AF-24 ensures stable performance even in demanding RF environments. Its rugged outdoor design and comprehensive LED indicators allow precise alignment and real-time link diagnostics during deployment and operation.
Key Features
Up to 1.4+ Gb/s throughput
Long-range links up to 13+ km
24.1 / 24.2 GHz operating channels
Carrier-class reliability with GPS synchronization
Integrated RF status & signal strength display (dBm)
High-gain split antenna with narrow beamwidth
AES-128 encryption for secure links
Designed for ISP, enterprise, and critical backhaul deployments
Carrier-Grade Performance
The airFiber 24 supports advanced modulation schemes (up to 64QAM MIMO) and delivers over 1 million packets per second, ensuring high capacity and low latency. Fixed uplink/downlink ratios and forward error correction provide consistent, predictable performance for professional networks.
Specifications
System Performance
| Item | Details |
| Maximum Throughput | 1.4+ Gb/s |
| Maximum Range | 13+ km |
| Packets per Second | > 1 Mpps |
| Encryption | 128-bit AES |
| Uplink/Downlink Ratio | 50% fixed |
| Channel Bandwidth | 100 MHz |
Radio & RF
| Item | Details |
| Operating Frequency | 24.05 – 24.25 GHz |
| Operating Channels | 24.1 GHz, 24.2 GHz |
| Modulation | 64QAM / 16QAM / QPSK (MIMO & SISO) |
| EIRP | ~33 dBm (FCC/IC), ~20 dBm (CE) |
| GPS | Clock synchronization supported |
Integrated Antenna
| Item | Details |
| TX Gain | 33 dBi |
| RX Gain | 38 dBi |
| Beamwidth | < 3.5° |
| Front-to-Back Ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-Polar Isolation | > 28 dB |
Interfaces & Indicators
| Item | Details |
| Data Port | 10/100/1000 Ethernet |
| Config Port | 10/100 Ethernet |
| Auxiliary Port | RJ-12 (alignment tone) |
| LEDs | Link, speed, GPS, RF status, modulation, master/slave |
| Display | 2-digit LED (signal strength in dBm) |
Power & Environment
| Item | Details |
| Power Method | Passive PoE (42–58 V DC) |
| Power Supply | 50 V 1.2 A PoE adapter (included) |
| Max Power Consumption | 50 W |
| Operating Temperature | -40 to +55 °C |
| Wind Survivability | 200 km/h (125 mph) |
Mechanical
| Item | Details |
| Dimensions | 64.9 × 42.6 × 30.3 cm |
| Weight | 10.5 kg (mount included) |
| Mounting | Pole mount kit (included) |
Certifications
CE • FCC • IC
