SKU:
AF-5U
Product Description

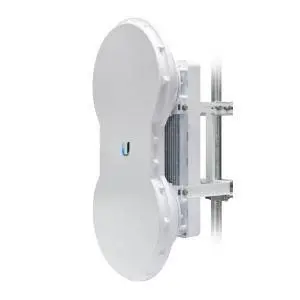

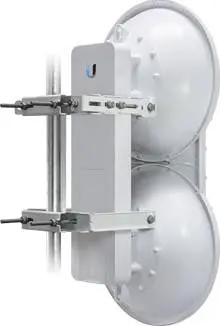

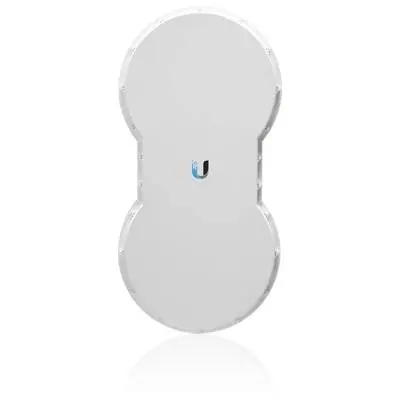

Ubiquiti airFiber AF-5U 5GHz Full-Duplex Point-to-Point Gigabit Backhaul Radio
The Ubiquiti airFiber AF-5U is a powerful 5GHz full-duplex wireless backhaul radio designed for high-capacity point-to-point (PtP) links. Operating in the license-free 5GHz spectrum (5725–6200 MHz), it allows service providers and network engineers to deploy high-performance wireless connections without licensing fees or regulatory complexity.
Built for carrier-grade networking, the AF-5U delivers wireless throughput exceeding 1.2 Gbps, enabling ultra-fast data transmission with extremely low latency. Using Ubiquiti’s xtreme Range Technology (xRT), the device can establish stable long-distance links of 100+ km, making it ideal for wireless ISP backhaul, enterprise campus connectivity, and remote infrastructure networks.
The device features a dual-independent 2×2 MIMO antenna architecture, with separate transmit and receive antennas. This design improves link budget and eliminates signal losses typically caused by shared antenna systems with RF switching components.
Key Features
5GHz license-free wireless backhaul radio
Full-duplex point-to-point connectivity
Up to 1.2+ Gbps wireless throughput
Long-range links up to 100+ km
Dual-independent 2×2 MIMO antenna architecture
Hybrid Division Duplexing (HDD) for improved efficiency
Supports TDD and FDD transmission modes
Designed for carrier-grade wireless backhaul
