Product Description

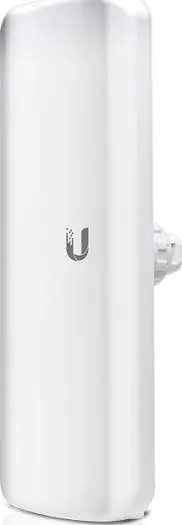

Ubiquiti airMAX LiteAP AC with GPS Sync – Outdoor PtMP Access Point (LAP-GPS)
The airMAX LiteAP AC (LAP-GPS) from Ubiquiti is a high-performance, cost-effective 5 GHz outdoor access point designed for Point-to-MultiPoint (PtMP) wireless deployments. Built on airMAX® AC (Wi-Fi 5 / 802.11ac) technology, it delivers up to 450+ Mbps real TCP/IP throughput, making it an excellent choice for WISPs and long-distance wireless broadband networks.
Featuring GPS Sync, the LiteAP AC enables precise frame synchronization between co-located access points, significantly reducing self-interference, improving frequency reuse, and enhancing overall network stability in dense deployments. Its ultra-lightweight, integrated antenna design with built-in radio ensures high efficiency, fast installation, and long-term outdoor reliability.
With Gigabit Ethernet, passive PoE powering, and a versatile ball-joint mount, the LiteAP AC combines performance, simplicity, and disruptive pricing—ideal for scalable outdoor wireless networks.
Key Highlights
Wi-Fi 5 (802.11ac) single-band 5 GHz
Up to 450 Mbps real TCP/IP throughput
GPS Sync for interference-free PtMP networks
Integrated antenna & radio (lightweight design)
Gigabit Ethernet for high wired throughput
Fast, tool-free installation
Why Choose LiteAP AC with GPS Sync?
GPS Synchronization
Precise GPS frame timing allows multiple LAP-GPS devices to transmit and receive without overlapping, reducing interference and increasing spectral efficiency—perfect for high-density PtMP deployments.
Efficient & Lightweight Design
An integrated antenna and radio eliminate RF cable losses while reducing weight and wind load, ensuring stable performance even in harsh outdoor conditions.
Quick & Flexible Installation
Minimal fasteners
Tool-free assembly (single wrench for pole mounting)
Ball-joint mount for precise alignment
Gigabit Ethernet Performance
High-speed wired connectivity ensures the wireless link is never bottlenecked on the LAN side.
Technical Specifications – airMAX LiteAP AC (LAP-GPS)
Mechanical
| Item | Specification |
| Dimensions | 361 × 124.6 × 71.3 mm (14.2 × 4.9 × 2.8 in) |
| Weight | 752 g (1.66 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Color | White |
Hardware & Power
| Item | Specification |

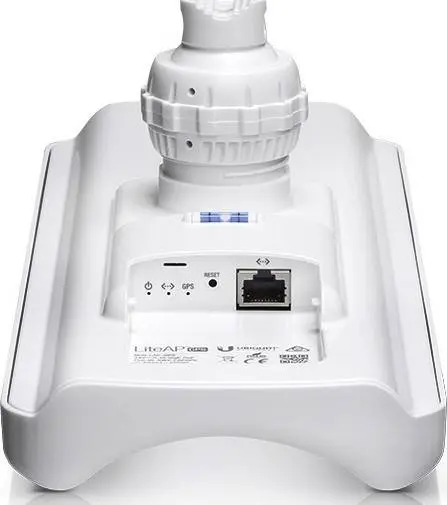

| Networking Interface | 1 × Gigabit Ethernet (RJ45) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Supported Voltage | 20–26V DC |
| Max Power Consumption | 7.1 W |
Wireless Performance
| Item | Specification |
| Wireless Standard | Wi-Fi 5 (802.11ac) |
| Frequency Band | 5 GHz (Single-Band) |
| Max Throughput | 450+ Mbps (Real TCP/IP) |
| Max TX Power | 25 dBm |
| Antenna Gain | 17 dBi |
| GPS Sync | Yes |
Environmental & Compliance
| Item | Specification |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5–95% non-condensing |
| ESD / EMP Protection | ±24 kV (Air / Contact) |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
