Product Description

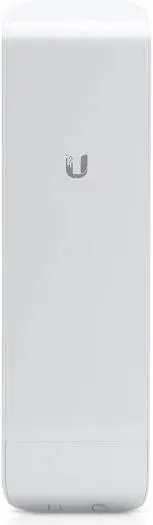

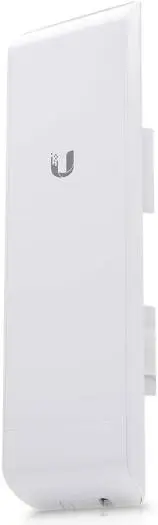

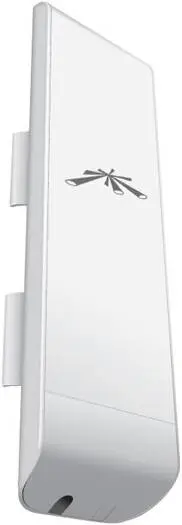

Ubiquiti Networks airMAX NanoStation M2 – 2.4 GHz Indoor/Outdoor CPE Bridge (NSM2)
The airMAX NanoStation M2 (NSM2) from Ubiquiti is a compact yet powerful 2.4 GHz airMAX® CPE bridge designed for reliable Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) wireless deployments. Integrating a high-gain 10.4–11.2 dBi dual-polarity panel antenna with 2×2 MIMO technology, the NanoStation M2 delivers stable long-range connectivity for WISPs, campus links, CCTV backhaul, and last-mile access.
Built around a 400 MHz Atheros MIPS processor with 32 MB RAM and 8 MB flash, the NSM2 is optimized for efficient throughput and low power consumption. It features two 10/100 Ethernet ports and supports 24V passive PoE, allowing one port to power the device while the secondary port can pass data and power to downstream devices (such as IP cameras). Housed in a UV-stabilized outdoor enclosure and supplied with a pole-mount kit, it’s ready for both indoor and outdoor installations. Configuration and monitoring are handled via airOS® for straightforward setup and management.
Key Features
2.4 GHz airMAX® CPE for indoor/outdoor use
Supports PtP & PtMP wireless links
Integrated 10.4–11.2 dBi dual-polarity panel antenna
2×2 MIMO for improved performance and reliability
2× 10/100 Ethernet ports (data + PoE passthrough)
24V passive PoE adapter included
UV-stabilized enclosure with pole-mount kit
Managed via airOS® software
Technical Specifications
Hardware
| Item | Specification |
| Processor | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM |
| Storage | 8 MB Flash |
| Networking Interfaces | 2× 10/100 Ethernet |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Power Supply | 24V, 0.5A PoE adapter (included) |
| Max Power Consumption | 5.5W (typical), up to 8W |
Wireless
| Item | Specification |
| Operating Band | 2.4 GHz (2412–2462 MHz) |
| Antenna Gain | 10.4–11.2 dBi |
| Polarization | Dual Linear |
| Cross-Pol Isolation | ≥23 dB |
| Beamwidth | 55° (H), 53° (V), 27° (Elevation) |
| VSWR | ≤1.6:1 |
| MIMO | 2×2 |
Mechanical & Environmental
| Item | Specification |
| Dimensions | 294 × 31 × 80 mm |
| Weight | 400 g |
| Enclosure | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (included) |
| Operating Temperature | −30 to 75 °C |
| Operating Humidity | 5–95% non-condensing |
| Compliance | RoHS, ETSI300-019-1.4 |
