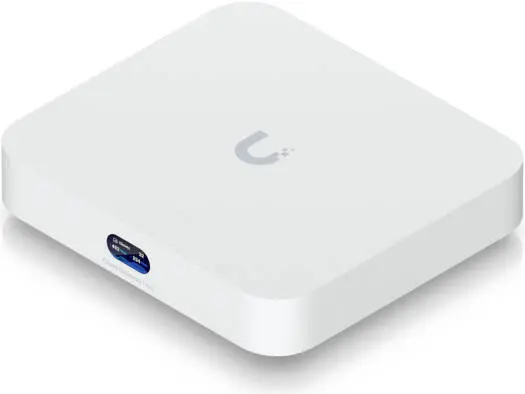

Ubiquiti UniFi Cloud Gateway Ultra (UCG-Ultra)
Compact. Powerful. Secure Network Management.
Cloud Gateway Ultra is a high-performance, compact UniFi gateway designed for modern businesses, offices, and advanced home networks. It seamlessly manages 30+ UniFi devices and over 300 clients, delivering up to 1 Gbps IDS/IPS routing, advanced security, and intelligent multi-WAN load balancing — all in a sleek, USB-C powered design.
With enterprise-grade firewall protection, application-aware traffic control, and license-free SD-WAN features, the UCG-Ultra ensures maximum uptime, security, and performance for demanding network environments.
Ideal for:
Small to medium businesses, branch offices, retail stores, and IT-driven home networks requiring scalability, reliability, and next-generation security.
Key Features
Supports 30+ UniFi devices & 300+ clients
1 Gbps IDS/IPS throughput for secure, high-speed routing
Multi-WAN load balancing & failover
Advanced application-aware firewall & threat detection
License-free SD-WAN with VPN support

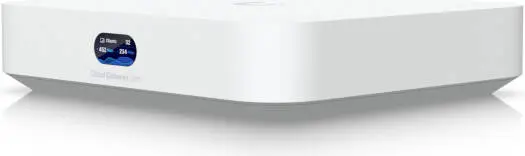

Compact design with 0.96” LCM status display
Low power consumption via USB-C
Specifications
Hardware Specifications
| Specification | Details |
| Processor | Quad-core ARM® Cortex®-A53 @ 1.5 GHz |
| System Memory | 3 GB DDR4 |
| On-board Storage | 16 GB eMMC |
| Management Interface | Ethernet |
| Bluetooth | Yes |

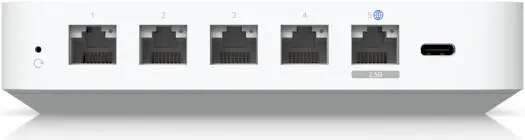

| LAN Ports | (4) GbE RJ45 |
| WAN Port | (1) 1 / 2.5 GbE RJ45 |
| IDS/IPS Throughput | Up to 1 Gbps* |
| Power Method | USB Type-C (5V DC / 3A) |
| Supported Voltage | 100–240V AC |
| Max Power Consumption | 6.2W |

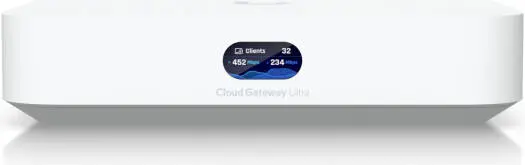

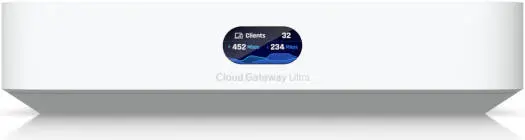

| Display | 0.96" LCM Status Display |
| Reset Button | Factory reset |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5–95% (non-condensing) |
| Certifications | CE, FCC, IC |
