Ubiquiti Networks Dream Wall UniFi Cloud Gateway, 4.7" Touchscreen, ARM Cortex-A57, 4GB RAM, 16GB Storage, Up to 2.7 Gb/s Throughput, WiFi6, Dual-Band, Wall Mount, 300+ Clients, Whi Dream Wall

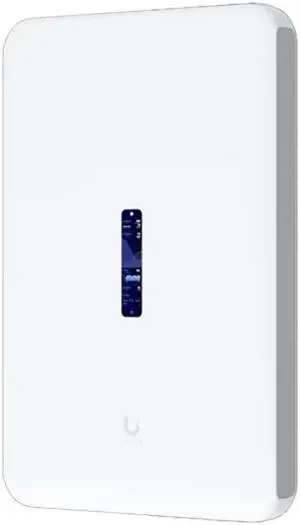

Ubiquiti Networks Dream Wall – UniFi All-in-One Cloud Gateway with Wi-Fi 6 (UDW)

The Dream Wall (UDW) from Ubiquiti is a powerful all-in-one UniFi Cloud Gateway designed to simplify enterprise and high-end commercial networking. Combining a UniFi OS console, Wi-Fi 6 access point, and a high-capacity PoE++ switch into a sleek wall-mounted design, the Dream Wall delivers performance, control, and scalability in a single device.

Powered by a quad-core ARM Cortex-A57 processor, 4 GB DDR4 RAM, and multiple onboard storage options, the Dream Wall supports 300+ concurrent clients and up to 2.7 Gb/s wireless throughput. The integrated 4.7" touchscreen provides instant visibility into network status, traffic, and system health—no external controller required.

With 10G SFP+ WAN & LAN, 2.5G WAN, and 12 PoE ports (PoE / PoE+ / PoE++), the Dream Wall is ideal for offices, retail spaces, hotels, schools, clinics, and smart buildings that demand clean installation and enterprise-grade performance.

Key Features

• All-in-One UniFi Cloud Gateway with UniFi OS

• Built-in Wi-Fi 6 (802.11ax) Access Point

• Up to 2.7 Gb/s wireless throughput

• 10G SFP+ WAN + 10G SFP+ LAN

• 2.5G RJ45 WAN + 17× Gigabit LAN ports

• 12 PoE ports

  • 4× PoE++ (60W)

  • 4× PoE+ (30W)

  • 4× PoE (15.4W)

• 4.7" Full-Color Touchscreen

• 300+ concurrent clients

• Dual hot-swappable power supply support

• Wall-mount design with premium industrial finish

Hardware Specifications

System

Networking Interfaces

PoE Capabilities

Maximum total power consumption: 532W

Power Supply: 2× hot-swappable 550W AC/DC PSU (1 installed)

Wireless Performance (Wi-Fi 6)

• Dual-Band: 2.4 GHz & 5 GHz

• MIMO:

  • 2.4 GHz: 2×2

  • 5 GHz: 4×4

• Throughput:

  • 2.4 GHz: up to 300 Mbps

  • 5 GHz: up to 2.4 Gbps

• Antenna Gain:

  • 2.4 GHz: 5.9 dBi

  • 5 GHz: 6 dBi

• Security: WPA / WPA2 / WPA3, Enterprise & Personal

Management & Software

• UniFi OS (built-in controller)

• VLAN (802.1Q)

• Advanced QoS & traffic shaping

• Guest network & isolation

• Touchscreen + Web + Mobile App

• Ethernet, Bluetooth & Wi-Fi management access

Physical & Environmental

Ideal Use Cases

• Enterprise & corporate offices

• Hotels & serviced apartments

• Retail chains & showrooms

• Clinics, schools & coworking spaces

• Smart buildings with PoE cameras & APs
