Product Description

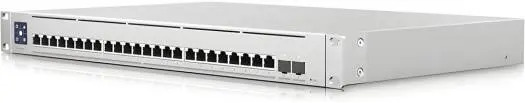

Ubiquiti UniFi Enterprise XG 24 (USW-EnterpriseXG-24)
24-Port 10G Layer 3 Managed Switch with 25G Uplinks
The Ubiquiti UniFi Enterprise XG 24 is a high-performance Layer 3 managed network switch engineered for modern enterprise environments that demand extreme bandwidth and low latency. Equipped with 24 × 10G RJ45 ports and 2 × 25G SFP28 uplinks, this switch delivers exceptional switching capacity and forwarding performance—making it ideal for data centers, core aggregation, server rooms, and high-density enterprise networks.
With an impressive 580 Gb/s switching capacity, 431.52 Mpps forwarding rate, and intuitive management via the 1.3" color touchscreen or UniFi Network Application, the Enterprise XG 24 provides powerful control, scalability, and reliability in a rack-mountable form factor.
Key Features
24 × 10G Ethernet (RJ45) ports (1/2.5/5/10 GbE auto-negotiation)
2 × 25G SFP28 uplink ports for high-speed fiber aggregation
Layer 3 switching for advanced routing and segmentation
580 Gb/s switching capacity (290 Gb/s non-blocking)
431.52 Mpps forwarding rate for ultra-low latency
1.3" LCM color touchscreen for real-time status & management
Rack-mount design with steel enclosure
Centralized control via UniFi Network Application
Enterprise-Grade Performance
Built to handle bandwidth-intensive workloads, the Enterprise XG 24 ensures fast, reliable data transfer between servers, storage systems, virtualization platforms, and high-speed clients. The 25G SFP28 ports provide seamless fiber uplinks to core switches or data center infrastructure.
Specifications
Mechanical
| Item | Details |
| Dimensions | 442 × 285 × 44 mm |
| Weight | 4.5 kg (without brackets) / 4.6 kg (with brackets) |
| Enclosure Material | SGCC steel |
| Form Factor | 1U rack-mount |
Hardware & Performance
| Item | Details |
| Switching Capacity | 580 Gbps |
| Non-Blocking Throughput | 290 Gbps |
| Forwarding Rate | 431.52 Mpps |
| Ports | 24 × 1/2.5/5/10 GbE RJ45 |
| Uplinks | 2 × 25G SFP28 |
| Layer | Layer 3 |
| Services | SMB Layer 3 GbE switch |
Note: 25G SFP28 ports do not support mixed speeds when configured at 25 Gbps.
Power
| Item | Details |
| Power Supply | Internal AC/DC, 100W |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Redundant Power | USP-RPS DC input (11.5V DC, 8.7A) |
| Max Power Consumption | 100W |
Management & Interfaces
| Item | Details |
| Management Interface | Ethernet In-Band |
| Display | 1.3" Color Touchscreen |
| Button | Factory Reset |
Environmental & Safety
| Item | Details |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 10–95% (non-condensing) |
| ESD/EMP Protection | ±16kV Air / ±12kV Contact |
| Certifications | CE, FCC, IC |
