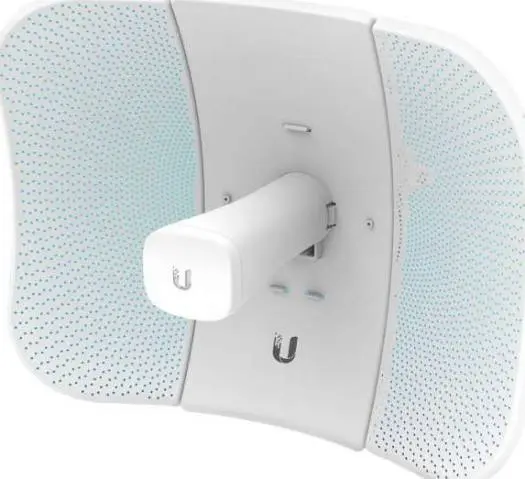

Ubiquiti Networks LBE-5AC-Gen2 AC Gen2 2x2 MIMO airMAX ac CPE with Management Wi-Fi , 5 GHz Operating frequency, 23 dBi Gain, 125 mph Wind Loading sur LBE-5AC-Gen2

Ubiquiti LiteBeam AC Gen2 airMAX ac CPE, 5GHz, 23 dBi, 2x2 MIMO, Gigabit PoE  LBE-5AC-Gen2

The Ubiquiti LiteBeam AC Gen2 is a high-performance airMAX ac CPE designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) wireless links.

Operating on the 5 GHz band with a 23 dBi high-gain directional antenna, it delivers reliable, high-throughput connectivity even in RF-congested environments.

With a dedicated management Wi-Fi radio, improved mounting system, and airOS 8 with airView, the LiteBeam AC Gen2 ensures fast deployment, precise alignment, and professional-grade performance.

Key Features

• 5 GHz airMAX ac Technology

• 23 dBi High-Gain Directional Antenna

• 2×2 MIMO for Long-Distance Links

• Dedicated Management Wi-Fi Radio

• Gigabit Ethernet Port

• airOS 8 with airView RF Analytics

• Enhanced Mount with Azimuth & Elevation Adjustment

• Wind Survivability up to 125 mph (200 km/h)

• ±24 kV ESD / EMP Protection

• Ultra-Lightweight & Tool-Free Assembly

High-Performance Wireless Connectivity

The LiteBeam AC Gen2 is optimized for long-distance wireless links:

• Antenna Gain: 23 dBi

• Directional Radiation Pattern for superior noise immunity

• Channel Widths:

  • PtP: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz

  • PtMP: 10 / 20 / 30 / 40 MHz

Ideal for WISP backhauls, rural connectivity, CCTV links, and building-to-building connections.

Dedicated Management Wi-Fi

A built-in separate management Wi-Fi radio allows quick configuration and alignment using a smartphone or tablet—no need to disconnect the main link.

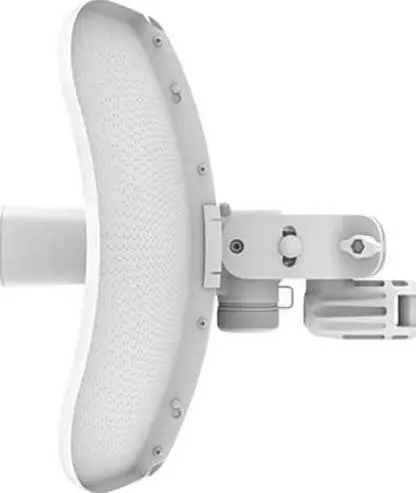

Improved Mounting & Industrial Design

• Three-axis alignment for precise installation

• Separate azimuth and elevation adjustments

• Built-in bubble level

• Tool-free assembly (only one wrench required for pole mounting)

Robust Outdoor Reliability

Designed to withstand harsh environments:

• Wind Loading: 275 N @ 200 km/h

• Wind Survivability: 125 mph

• Operating Temperature: -40°C to +70°C

• ESD/EMP Protection: ±24 kV (Contact & Air)

Technical Specifications

Hardware

• Processor: MIPS 74Kc

• Memory: 64 MB DDR2

• Network Interface: 1× Gigabit Ethernet (10/100/1000)

• LEDs: Power, Ethernet

Power

• Power Method: Passive PoE

• Voltage Range: 24V ±10%

• Power Supply: 24V 0.3A Gigabit PoE Adapter (Included)

• Max Power Consumption: 7W

Physical Specifications

Certifications

• CE

• FCC

• IC
