Product Description

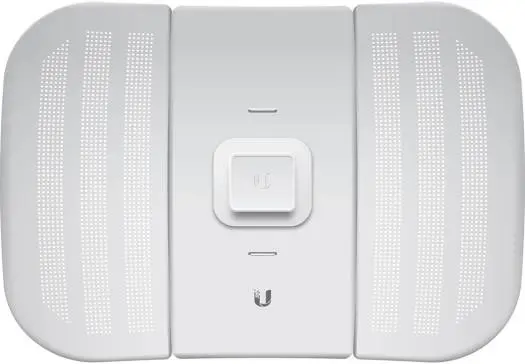

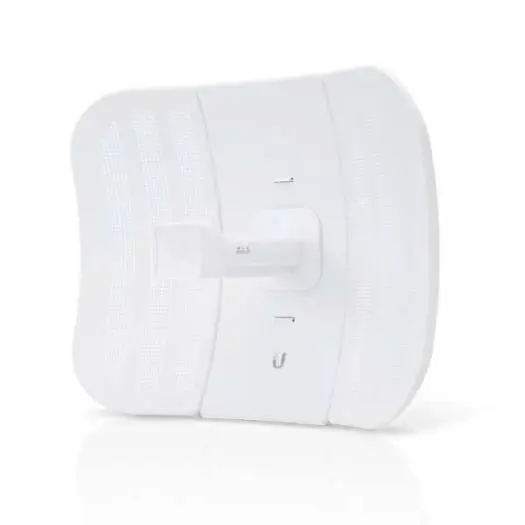

Ubiquiti LiteBeam M5 LBE-M5-23 – Long-Range airMAX Wireless CPE (5 GHz)
The LiteBeam M5 LBE-M5-23 from Ubiquiti is a lightweight, high-gain airMAX CPE engineered for long-distance Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links. Operating on the license-free 5 GHz band, it delivers 100+ Mbps throughput over distances of up to 30+ km, making it ideal for WISPs, rural connectivity, and building-to-building links.
Its 23 dBi directional antenna provides excellent beam focus for strong noise immunity, while airMAX TDMA technology maximizes airtime efficiency, reduces latency, and improves scalability. The innovative snap-and-lock, tool-less assembly and three-axis alignment enable fast, precise installations. Built with UV-stabilized outdoor plastic and rated for high wind survivability, the LiteBeam M5 is both durable and easy to deploy.
Key Highlights
100+ Mbps throughput for long-range wireless links
Up to 30+ km range (18+ miles)
23 dBi high-gain directional antenna for superior noise rejection
airMAX TDMA for low latency, intelligent QoS, and scalability
Ultra-lightweight design with snap-and-lock, tool-less assembly
Three-axis alignment for precise aiming
Outdoor-rated with high wind survivability
Technical Specifications
Performance & RF
| Feature | Specification |
| Frequency Band | 5 GHz |
| Operating Frequency | Worldwide: 5150–5875 MHz / USA: 5725–5850 MHz |
| Max Throughput | 100+ Mbps |
| Max Range | Up to 30+ km |
| Antenna Gain | 23 dBi |
| Output Power | 25 dBm |
| Max VSWR | 1.5 : 1 |
Hardware
| Feature | Specification |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
| Network Interface | 1 × 10/100 Ethernet |
| Power Method | Passive PoE (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.2A PoE adapter (included) |
| Max Power Consumption | 4 W |
Physical & Environmental
| Feature | Specification |
| Dimensions (No Mount) | 362 × 267 × 184 mm |
| Weight (No Mount) | 750 g |
| Enclosure | Outdoor UV-stabilized plastic |

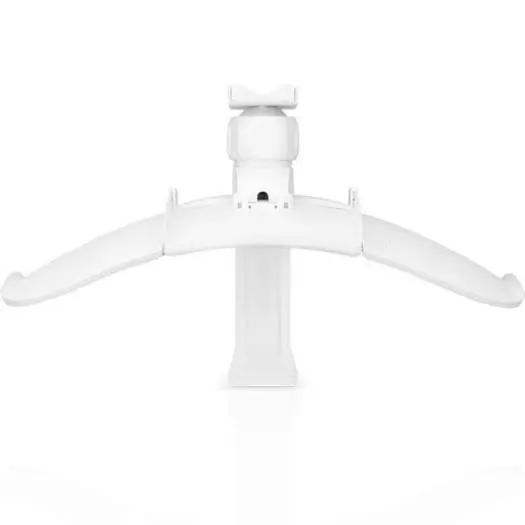

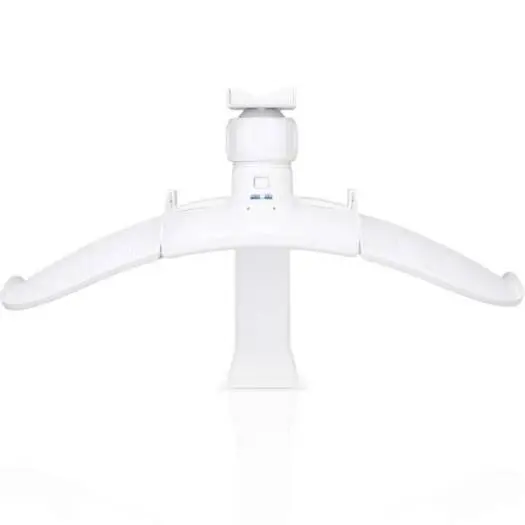

| Mounting | Pole-mount kit included |
| Wind Survivability | Up to 125 mph |
| Operating Temperature | −40 to 70 °C |
| Operating Humidity | 5–95% non-condensing |
| ESD/EMP Protection | ±24 kV (air/contact) |
Compliance
FCC, IC, CE
RoHS compliant
ETSI EN 302 326 DN2
ETSI300-019-1.4 (Shock & Vibration)
