Product Description

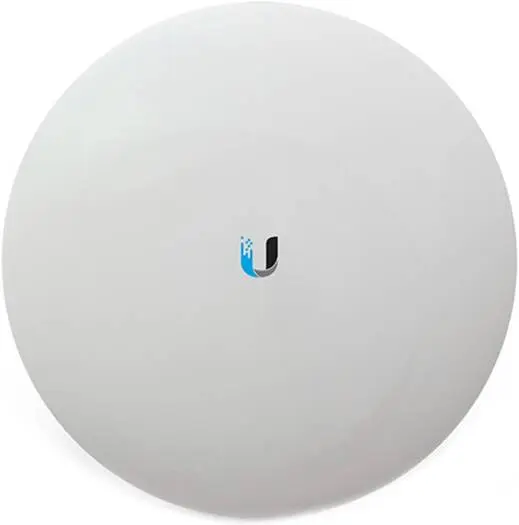

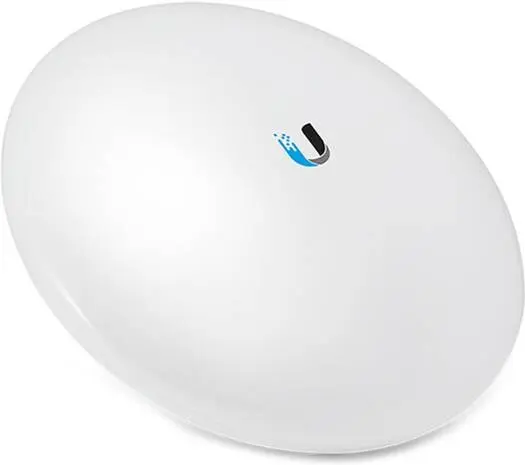

Ubiquiti NanoBeam AC Gen2 (NBE-5AC-GEN2)
High-Performance airMAX ac CPE with Dedicated Management Wi-Fi
The Ubiquiti NanoBeam AC Gen2 is a compact yet powerful 5 GHz airMAX ac CPE engineered for high-capacity point-to-point (PtP) and point-to-multipoint (PtMP) wireless links. Delivering 450+ Mb/s real-world throughput, advanced noise immunity, and excellent beam directivity, it’s ideal for WISPs, enterprise backhaul, and long-range outdoor connectivity.
With a dedicated Wi-Fi management radio, setup and maintenance are fast and convenient using a mobile device—without disrupting the main wireless link. Powered by airOS® 8 and Ubiquiti’s custom airMAX TDMA engine, the NanoBeam AC Gen2 offers low latency, high scalability, and rock-solid performance even in high-interference environments.
Key Features
450+ Mb/s throughput with airMAX ac
Dedicated Wi-Fi radio for easy management
2× Gigabit Ethernet ports
High-gain 19 dBi integrated antenna
airMAX TDMA for low latency & high scalability
airOS® 8 with real-time RF analytics
Enhanced ESD/EMP surge protection
Tool-free, plug-and-play mounting
Why Choose NanoBeam AC Gen2?
Superior beam performance for noisy RF environments
Hardware-accelerated airMAX scheduler for dense networks
Quick deployment with three-axis alignment
Proven reliability with military-grade environmental testing
Specifications
Mechanical
| Item | Details |
| Dimensions | 189 × 189 × 125 mm |
| Weight | 530 g |
| Enclosure | UV-stabilized plastic |
| Mounting | Pole mount kit (included) / Wall mount (optional) |
| Wind Survivability | 200 km/h (125 mph) |
Hardware
| Item | Details |

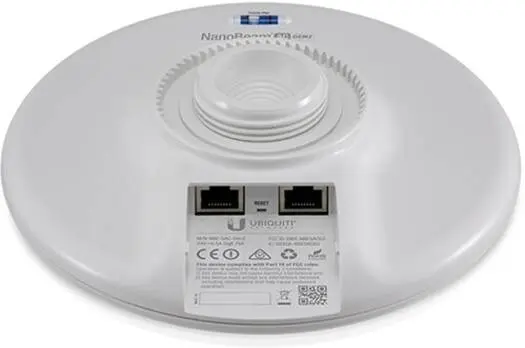

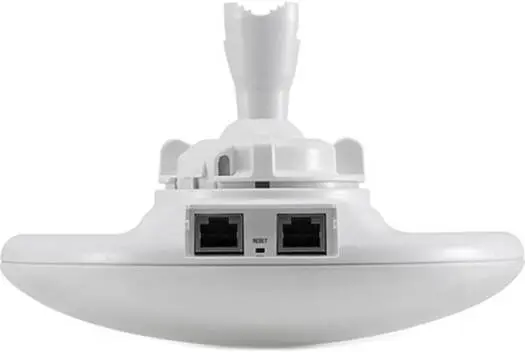

| Ethernet Ports | 2× GbE RJ45 |
| Power Method | 24V Passive PoE |
| Power Supply | 24V 0.5A Gigabit PoE adapter (included) |
| Max Power Consumption | 8W |
| ESD/EMP Protection | ±24 kV (air/contact) |
| LEDs | Power, Ethernet, Signal Strength |
Wireless & RF
| Item | Details |
| Wireless Technology | airMAX ac (TDMA) |
| Operating Frequency | 5.15–5.85 GHz |
| Antenna Gain | 19 dBi |
| Polarization | Dual Linear |
| Channel Widths | PtP: 10–80 MHz / PtMP: 10–40 MHz |
| Max VSWR | 1.5 : 1 |
Environmental
| Item | Details |
| Operating Temperature | -40 to 80°C |
| Operating Humidity | 5–95% (non-condensing) |
| Environmental Tests | Salt fog, vibration, temperature shock, UV, wind-driven rain |
Certifications
CE • FCC • IC • RoHS
