Product Description

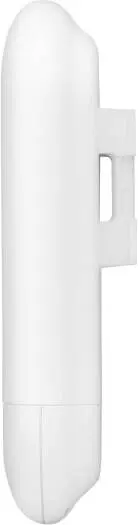

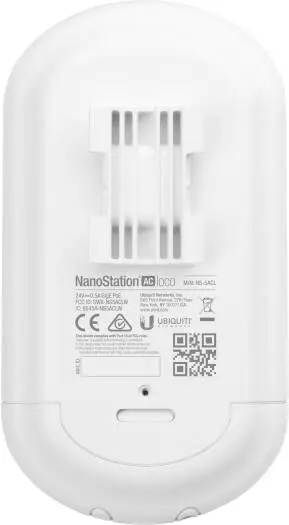

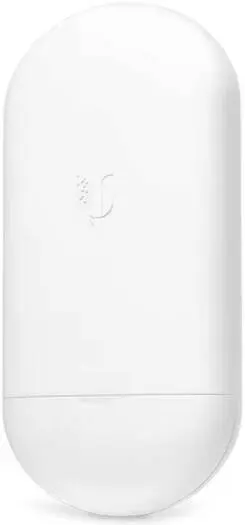

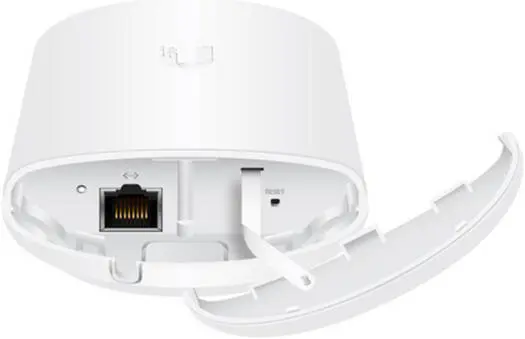

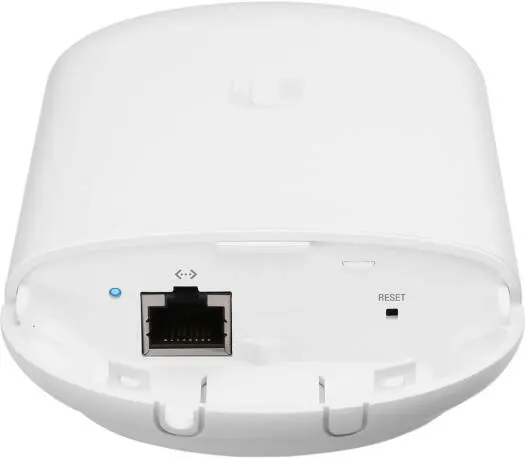

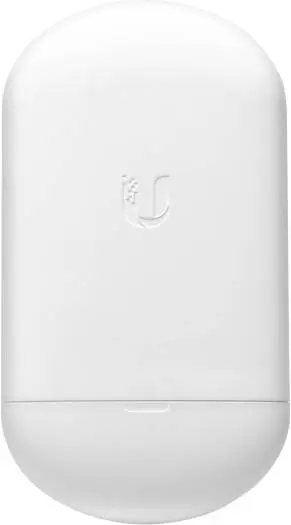

Ubiquiti NanoStation AC Loco – 5 GHz airMAX AC Compact Wireless Radio | Loco-5AC
The NanoStation AC Loco (Loco-5AC) from Ubiquiti is a compact, high-performance 5 GHz airMAX AC radio designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) deployments. Powered by an updated airMAX AC chipset and airOS 8, it delivers 450+ Mbps real throughput with a 10+ km link range, making it an excellent choice for WISPs, building-to-building links, and last-mile connectivity.
Despite its small footprint, the Loco-5AC packs serious performance: a Gigabit Ethernet port, wide channel bandwidth support up to 80 MHz, and a 13 dBi dual-polarity antenna with a 45° beamwidth for stable, interference-resistant links. The UV-stabilized outdoor enclosure and included pole-mount kit ensure fast, reliable installation in almost any environment.
Key Benefits
450+ Mbps throughput with airMAX AC technology
10+ km link range (line-of-sight)
Gigabit Ethernet port for high-speed backhaul
Flexible channel widths: 10–80 MHz
13 dBi dual-linear antenna with 45° beamwidth
airOS 8 for advanced RF analytics & easy management
Compact, outdoor-ready design with pole-mount included
Technical Specifications
Performance & Wireless
| Feature | Specification |
| Frequency Band | 5 GHz |
| Max Throughput | 450+ Mbps |
| Max Link Range | 10+ km |
| Antenna Gain | 13 dBi |
| Beamwidth | 45° |
| Polarization | Dual Linear |
| Channel Bandwidth | 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz |
| Max VSWR | 1.8 : 1 |
Hardware
| Feature | Specification |
| Processor | Atheros MIPS 74K, 560 MHz |
| Memory | 128 MB |
| Network Interface | 1 × 10/100/1000 Mbps Ethernet |
| LED Indicators | Power, Ethernet, 4× Signal Strength |
| Power Method | Passive PoE (Pairs 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE (not included) |
| Max Power Consumption | 8.5 W |
Physical & Environmental
| Feature | Specification |
| Dimensions | 179 × 77.5 × 59.1 mm |
| Weight | 0.18 kg |
| Enclosure | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount kit included |
| Operating Temperature | −40 to 70 °C |
| Operating Humidity | 5–95% non-condensing |
Certifications
CE, FCC, IC
