Product Description

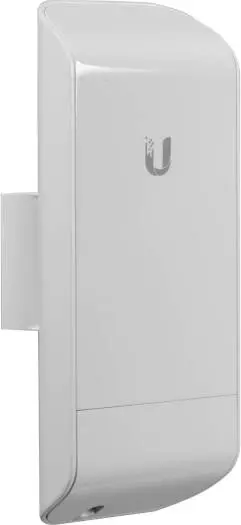

Ubiquiti NanoStation locoM5 – 5 GHz airMAX Indoor/Outdoor CPE (UBLOCO-M5)
The NanoStation locoM5 from Ubiquiti is a compact, cost-effective 5 GHz airMAX CPE designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) wireless links. With a high-efficiency 13 dBi dual-polarity MIMO antenna and airOS software, it delivers stable links over 5+ km (up to ~10 km line-of-sight) with dependable throughput—ideal for WISPs, building-to-building connectivity, and last-mile access.
Built for easy deployment, the locoM5 integrates the radio and antenna into a slim, weather-resistant enclosure, powered via 24V passive PoE. Its airMAX TDMA protocol improves latency and scalability compared to standard Wi-Fi, ensuring reliable performance even in congested RF environments.
Key Benefits
5 GHz airMAX CPE for PtP / PtMP deployments
13 dBi dual-polarity MIMO antenna in a compact form factor
5+ km range (up to ~10 km LOS) with clean spectrum planning
airOS for intuitive setup, monitoring, and spectrum tools
Low power consumption and 24V passive PoE powering
Indoor/Outdoor rated, pole-mount ready
Technical Specifications
Wireless & RF
| Feature | Specification |
| Frequency Band | 5 GHz |
| Operating Frequency | Worldwide: 5170–5875 MHz / US: 5725–5850 MHz / USA DFS: 5250–5850 MHz |
| Antenna Gain | 13 dBi |
| Polarization | Dual linear |
| Beamwidth | 45° (H) / 45° (V) / 45° (Elevation) |
| Cross-Pol Isolation | ≥ 20 dB |
| Max VSWR | 1.4:1 |
Hardware
| Feature | Specification |
| Processor | Atheros SoC, MIPS 4KC, 180 MHz |
| Memory | 16 MB SDRAM |
| Flash | 4 MB |
| Network Interface | 1 × 10/100 BASE-TX Ethernet |
| Power Method | Passive PoE (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A PoE |
| Max Power Consumption | 5.5 W |
Physical & Environment
| Feature | Specification |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180 g |
| Enclosure | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount kit included |
| Operating Temperature | −30 to 75 °C |
| Operating Humidity | 5–95% non-condensing |
Compliance
FCC, IC, CE, RoHS
ETSI300-019-1.4 (Shock & Vibration)
