Product Description

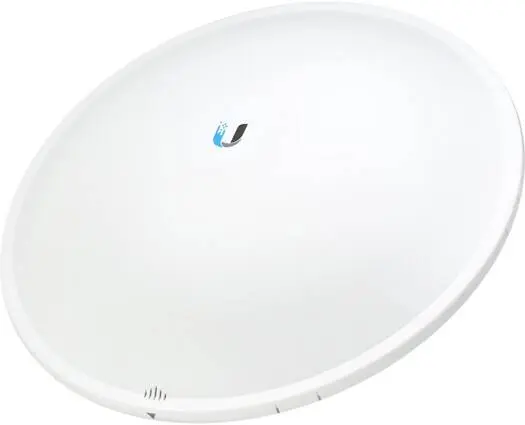

Ubiquiti PowerBeam PBE-5AC-500 – High-Performance airMAX ac Wireless Bridge (5 GHz)
The PowerBeam PBE-5AC-500 from Ubiquiti is a carrier-class 5 GHz airMAX ac wireless bridge built for long-range, high-throughput Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) deployments. Delivering 450+ Mbps real throughput and a range of up to 25+ km, it’s an ideal solution for ISPs, enterprise backhaul, and remote site connectivity.
At the core is next-generation airMAX ac technology powered by airOS v7, which uses TDMA scheduling to improve latency, noise immunity, and scalability. InnerFeed® Technology integrates the radio directly into the antenna feedhorn—eliminating RF cable losses and maximizing signal efficiency. The 27 dBi high-gain dish provides excellent beam directivity, ensuring clean links even in high-noise RF environments, while the protective radome shields the radio from harsh weather.
Key Highlights
450+ Mbps throughput for demanding wireless backhaul
25+ km long-distance range (16+ miles)

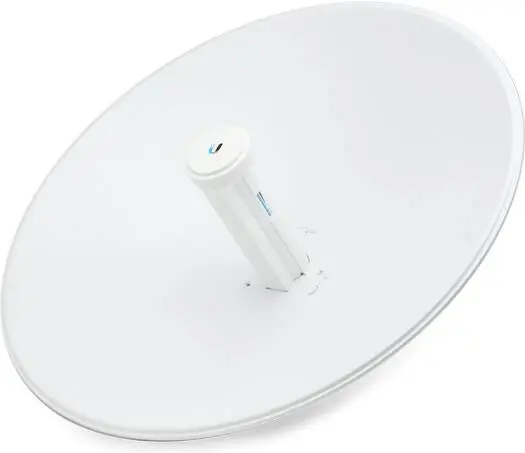

27 dBi high-gain dish antenna with narrow beam focus

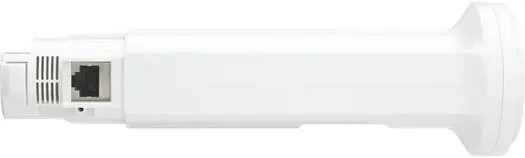

InnerFeed® integrated radio design – no RF cable loss
airMAX ac with TDMA for low latency & high scalability
airOS v7 with advanced monitoring & spectrum tools

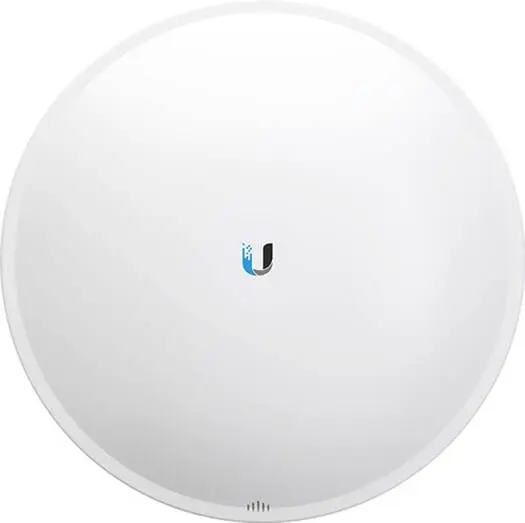

Outdoor-rated design with protective radome
Technical Specifications
Performance & RF
| Feature | Specification |
| Operating Frequency | Worldwide: 5150–5875 MHz / USA: 5725–5850 MHz |
| Max Throughput | 450+ Mbps |
| Max Range | 25+ km |
| Antenna Gain | 27 dBi |
| Technology | airMAX ac, TDMA |
| Channel Width | Selectable |
Hardware
| Feature | Specification |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 |
| Flash | 8 MB |
| Network Interface | 1 × Gigabit Ethernet (10/100/1000) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE (included) |
| Max Power Consumption | 8 W |
Physical & Environmental
| Feature | Specification |
| Dimensions (Radome Excluded) | 520 × 520 × 308 mm |
| Dimensions (Radome Included) | 525 × 525 × 315 mm |
| Weight (Radome Excluded) | 2.35 kg |
| Weight (Radome Included) | 3.15 kg |
| Enclosure | Outdoor UV-stabilized plastic |
| Wind Survivability | 96 km/h (60 mph) |
| Mounting | Pole-mount kit included |
| Operating Temp | −40 to 70 °C |
| Operating Humidity | 5–95% non-condensing |
Certifications
CE, FCC, IC
ETSI300-019-1.4 (Shock & Vibration)
