Product Description

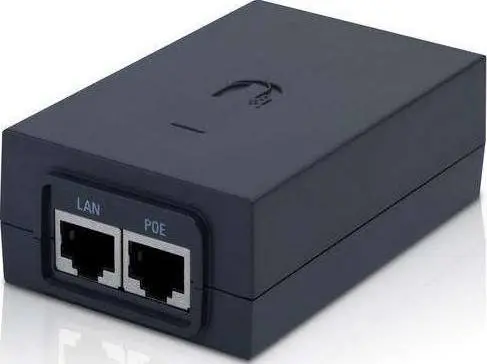

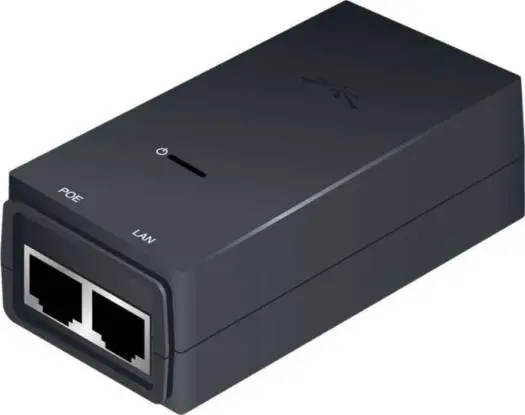

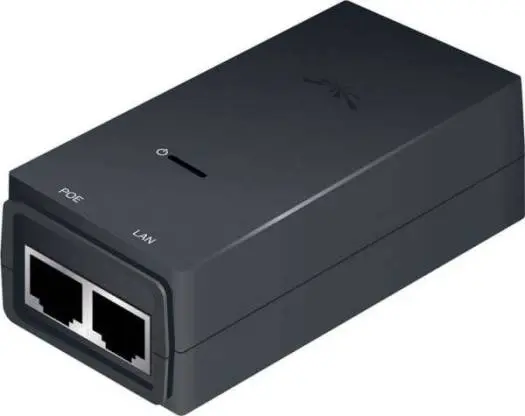

Ubiquiti Networks POE-24-12W (24V / 0.5A) – Passive Power over Ethernet Adapter
The POE-24-12W from Ubiquiti is a reliable 24V passive PoE injector designed to safely power compatible Ubiquiti airMAX, airFiber, and wireless CPE devices. Delivering 12W of stable output power (24V DC @ 0.5A), it ensures consistent performance for outdoor and indoor deployments.
When paired with Ubiquiti TOUGHCable, the adapter provides enhanced grounding and surge protection, helping safeguard connected devices against ESD and electrical surges. It also supports remote reset capability, making field maintenance faster and easier. The compact design supports optional wall mounting, making it ideal for clean, professional installations.
Key Features
24V Passive PoE output (12W) for compatible Ubiquiti devices
ESD & surge protection when used with TOUGHCable
Remote reset capability for easier device management
AirGateway compatible for bridging airMAX links to Wi-Fi
Wide AC input range (90–260VAC)
Compact, wall-mountable design (optional bracket)
Technical Specifications
Power & Electrical
| Item | Specification |
| Output Voltage | 24V DC @ 0.5A |
| Max Output Power | 12W |
| Input Voltage | 90–260VAC, 47–63 Hz |
| Efficiency | 75%+ |
| Output Ripple | 1% max |
| Line Regulation | ±1% |
| Load Regulation | ±3% |
| Switching Frequency | 50 kHz |
PoE & Interfaces
| Item | Specification |
| PoE Type | Passive PoE (2-Pair) |
| Pinout | Pins 4,5 (+) / Pins 7,8 (−) |
| Data In / PoE Out | Shielded RJ45 |
| Gigabit Support | No |
| Remote Reset | Yes |
| Reset Button | Yes |
Protection
| Item | Specification |
| Surge Protection | Differential & common mode |
| Max Surge Discharge | 1500A (8/20 µs) power |
| Clamping Protection | 11V (data), 60V (power) |
| Response Time | < 1 ns |
Physical & Environment
| Item | Specification |
| Dimensions | 87 × 44 × 29 mm |
| Weight | 92 g |
| Operating Temp | 0 to 40 °C |
| Storage Temp | −30 to 70 °C |
| Operating Humidity | 35–95% non-condensing |
| AC Connector | IEC-320 C6 |
Certifications
| Compliance | IEC 60950-1, UL60950-1, EN55022/24, FCC Class B |
