SKU:
POE-24-24W
Product Description

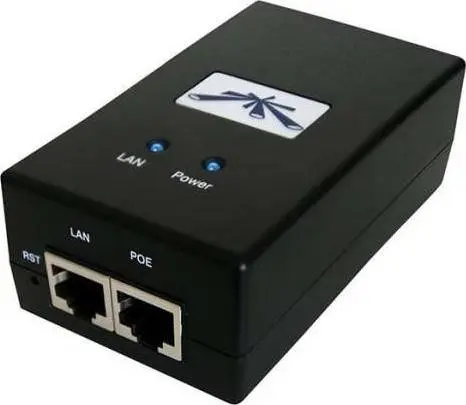

Ubiquiti Networks POE-24-24W (24V / 1.0A) – Passive Power over Ethernet Adapter
The POE-24-24W from Ubiquiti is a high-power 24V passive PoE injector engineered to reliably power demanding Ubiquiti devices that require higher wattage. Delivering 24W of stable output (24V DC @ 1.0A), it’s ideal for outdoor radios, CPEs, and base stations where consistent power and protection matter.
Designed for professional deployments, the POE-24-24W provides robust surge and ESD protection—especially when paired with Ubiquiti TOUGHCable—to help safeguard equipment in electrically noisy environments. A remote reset capability and reset button simplify maintenance, while the wide AC input range ensures dependable operation worldwide.
Key Features
24V Passive PoE output (24W) for higher-power devices
Enhanced surge & ESD protection (with TOUGHCable)
Remote reset capability plus local reset button
Wide input range (90–260VAC) for global use
Compact, durable design for clean installations
Technical Specifications
Power & Electrical
| Item | Specification |
| Output Voltage | 24V DC @ 1.0A |
| Max Output Power | 24W |
| Input Voltage | 90–260VAC, 47–63 Hz |
| Input Current | 0.6A @ 120VAC / 0.4A @ 240VAC |
| Efficiency | 80%+ |
| Output Ripple | 1% max |
| Line Regulation | ±1% |
| Load Regulation | ±3% |
| Switching Frequency | 65 kHz |
PoE & Interfaces
| Item | Specification |
| PoE Type | Passive PoE (2-Pair) |
| Pinout | Pins 4,5 (+) / Pins 7,8 (−) |
| Data IN / PoE OUT | Shielded RJ45 |
| Gigabit Support | No |
| Remote Reset | Yes |
| Reset Button | Yes |
Protection
| Item | Specification |
| Surge Protection | Differential & common mode |
| Clamping Protection | 11V (data), 60V (power) |
| Max Surge Discharge | 1500A (8/20 µs) power |
| Peak Pulse Current | 36A (10/1000 µs) data |
| Response Time | < 1 ns |
Physical & Environment
| Item | Specification |
| Dimensions | 88 × 57 × 33 mm |
| Weight | 135 g |
| Operating Temp | 0 to 40 °C |
| Storage Temp | −30 to 70 °C |
| Operating Humidity | 35–95% non-condensing |
| AC Connector | IEC-320 C6 |
Compliance
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
