Ubiquiti Networks PowerBeam AC PBE-5AC-Gen2 5 GHz High Performance airMAX ac Bridge PBE-5AC-Gen2

Ubiquiti PowerBeam AC Gen2 airMAX ac Bridge, 5GHz, 25 dBi, Gigabit PoE | PBE-5AC-Gen2

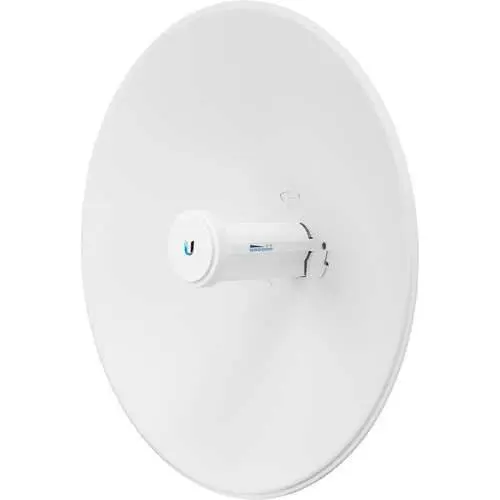

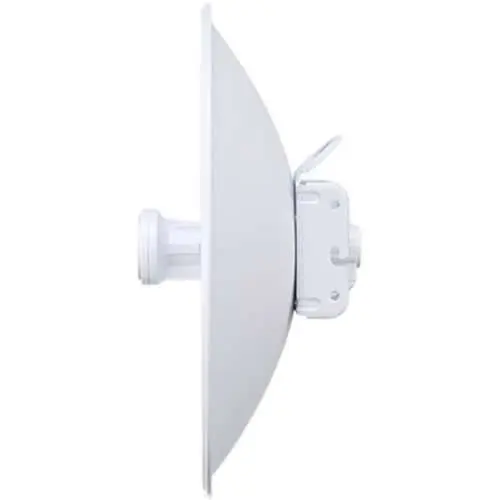

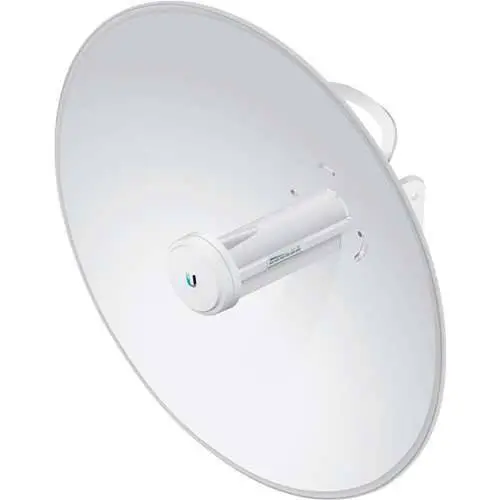

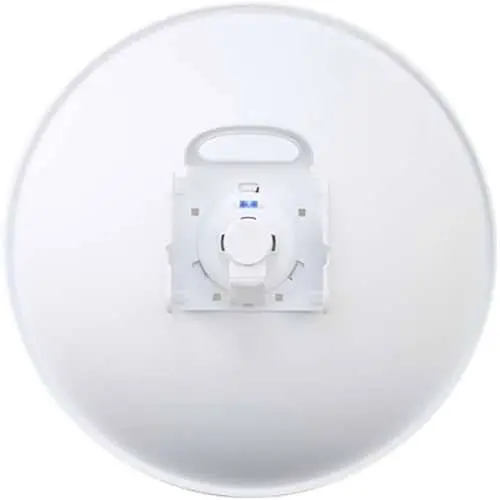

The Ubiquiti PowerBeam AC Gen2 is a high-performance 5 GHz airMAX ac wireless bridge engineered for long-range Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments.

With a 25 dBi high-gain directional antenna, InnerFeed™ integrated radio design, and airOS 8, it delivers exceptional throughput, low latency, and strong noise immunity even in challenging RF environments.

Key Features

• 5 GHz airMAX ac Technology

• 25 dBi High-Gain Directional Dish Antenna

• 2×2 MIMO for Long-Distance Links

• Dedicated Management Wi-Fi Radio

• Gigabit Ethernet Port

• InnerFeed™ Integrated Radio (No RF Cable Loss)

• airOS 8 with airView Real-Time RF Analytics

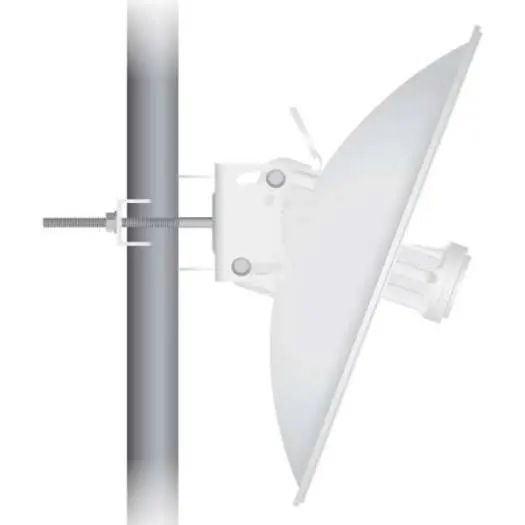

• Tool-Free Assembly & Easy Alignment

• Extreme Wind Survivability up to 125 mph

• ±24 kV ESD / EMP Protection

High-Performance Wireless Bridging

The PowerBeam AC Gen2 offers superior beam directivity, making it ideal for noisy RF environments and long-distance links.

• Antenna Gain: 25 dBi

• Channel Widths:

  • PtP: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz

  • PtMP: 10 / 20 / 30 / 40 MHz

• Low Latency & High Throughput thanks to airMAX ac TDMA protocol and custom silicon acceleration.

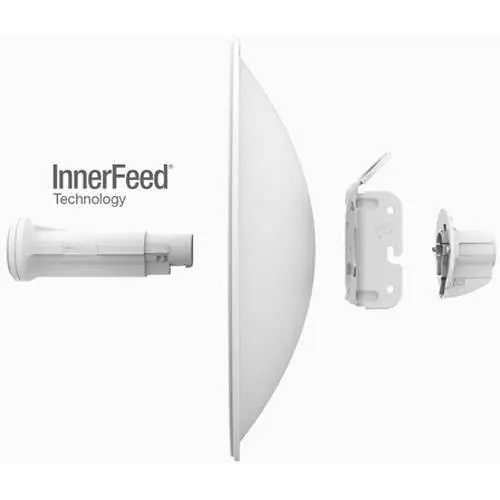

InnerFeed™ Integrated Radio Design

Ubiquiti’s InnerFeed™ technology integrates the radio directly into the antenna feedhorn, eliminating RF cables and reducing signal loss—resulting in higher efficiency and better overall performance.

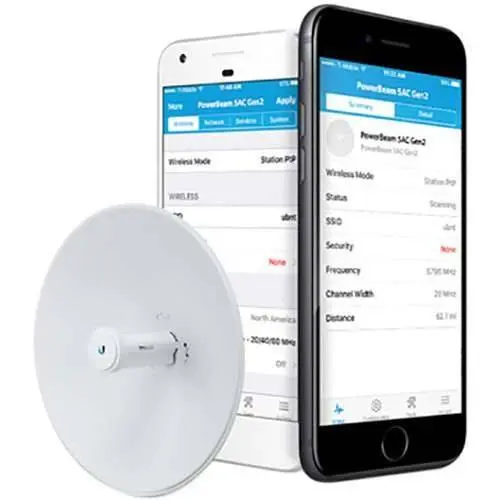

Dedicated Management Wi-Fi

A separate management Wi-Fi radio allows quick configuration and alignment using a smartphone or tablet without disrupting the main wireless link.

Rugged Outdoor Design

Built for extreme outdoor conditions:

• Wind Loading: 380 N @ 200 km/h

• Wind Survivability: 125 mph (200 km/h)

• Operating Temperature: -40°C to +70°C

• ESD/EMP Protection: ±24 kV (Air & Contact)

• Tested for UV, salt fog, vibration, temperature shock, and wind-driven rain

Technical Specifications

Hardware

• Processor: MIPS 74Kc

• Memory: 64 MB

• Network Interface: 1× Gigabit Ethernet (10/100/1000)

• LED Indicators: Power, Ethernet, 4× Signal Strength

Power

• Power Method: Passive PoE

• Voltage Range: 20–26 VDC

• Power Supply: 24V 0.5A Gigabit PoE Adapter (Included)

• Max Power Consumption: 8.5W

Physical Specifications

Certifications & Compliance

• CE

• FCC

• IC

• RoHS Compliant

• MIL-STD-810G Environmental Testing
