Product Description

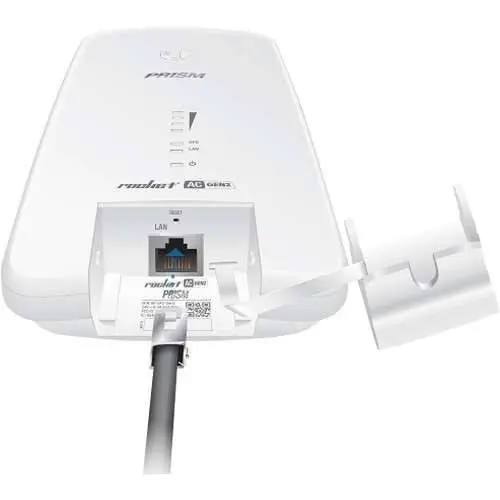

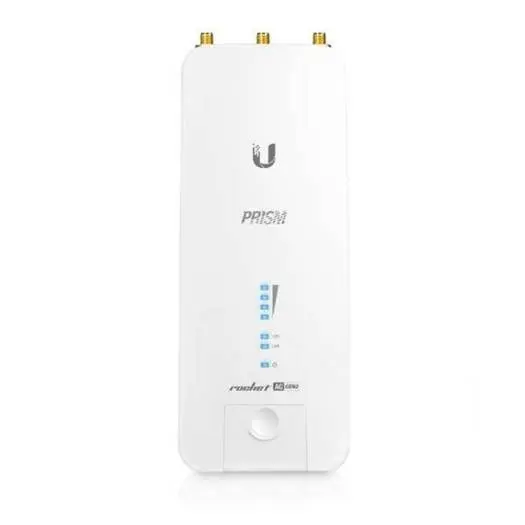

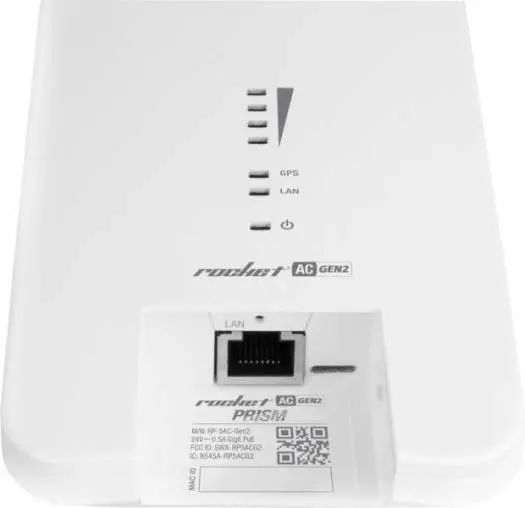

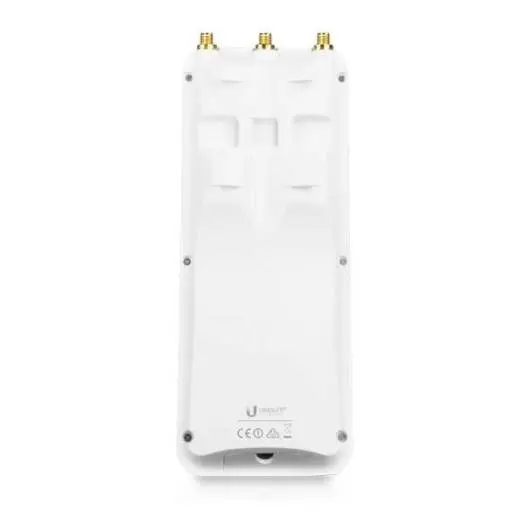

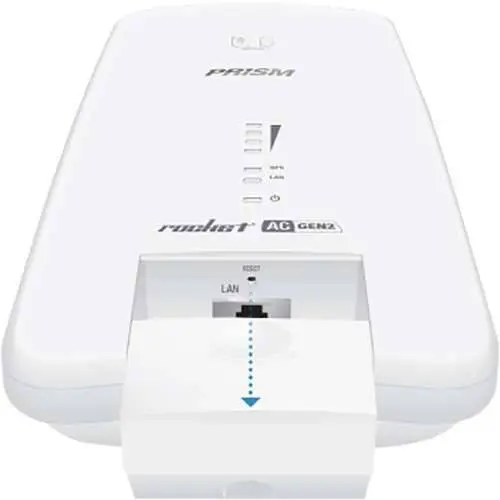

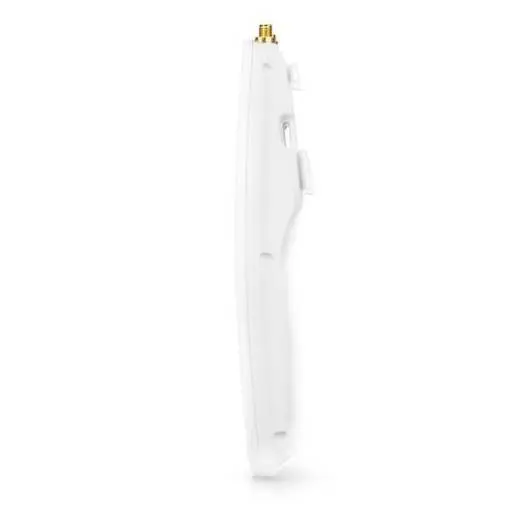

Ubiquiti Networks Prism RP-5AC-Gen2 5 GHz airMAX ac BaseStation | airPrism Technology
The Rocket Prism 5AC Gen2 (RP-5AC-Gen2) from Ubiquiti is a high-performance 5 GHz airMAX ac BaseStation engineered for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) wireless deployments in high-noise and high-density RF environments.
It combines Ubiquiti’s airMAX ac chipset with patented airPrism RF filtering, delivering superior interference rejection, higher capacity, and more stable links—especially in co-location scenarios.
Designed for carrier-class performance, the RP-5AC-Gen2 features GPS synchronization for scalable PtMP networks, a dedicated management Wi-Fi radio for quick setup via the U Mobile app, and an EMI-shielded die-cast aluminum enclosure for long-term outdoor reliability. With airOS 8, operators gain real-time RF analytics, advanced spectrum analysis, and an intuitive modern UI.
Key Features
5 GHz airMAX ac BaseStation for PtP & PtMP deployments
airPrism RF filtering technology for superior noise isolation
GPS Sync support for scalable, carrier-class networks
Dedicated management Wi-Fi radio for fast mobile setup
airOS 8 with real-time RF analytics & airView spectrum analyzer
Improved surge & ESD protection
EMI-shielded die-cast aluminum housing for outdoor use
Technical Specifications
Hardware
Networking Interface: 1 × 10/100/1000 Mbps Ethernet
Processor: MIPS 74Kc
Memory: 128 MB DDR2 SDRAM
Max Power Consumption: 9.5 W
Power Method: Passive PoE (Pairs 4,5+; 7,8−)
Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
RF & Performance
Operating Frequency:
Worldwide: 5150–5875 MHz
USA: U-NII-1 / U-NII-2-A / U-NII-2C / U-NII-3
Technology: airMAX ac + airPrism RF filtering
GPS Synchronization: Supported
Physical & Environment
Dimensions: 88 × 40 × 230 mm
Weight: 400 g
Enclosure: Die-cast aluminum with white powder coating
Operating Temperature: −40 to 80 °C
Operating Humidity: 5–95% non-condensing
Certifications
CE, FCC, IC
