Product Description

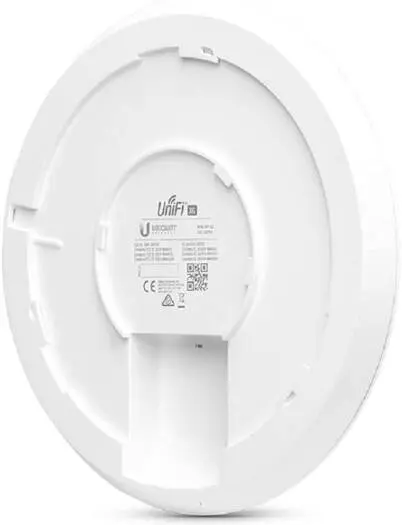

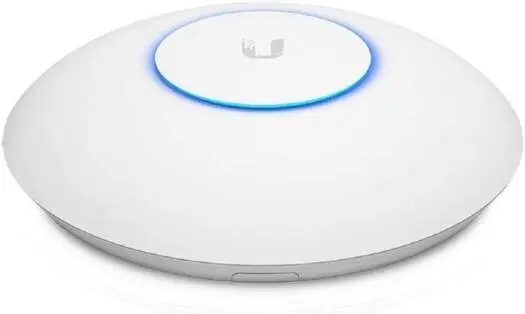

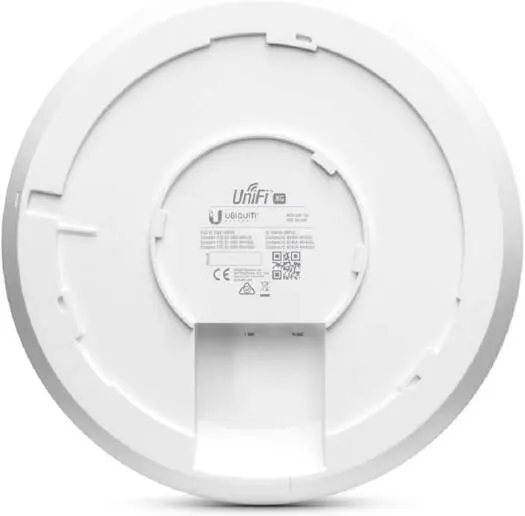

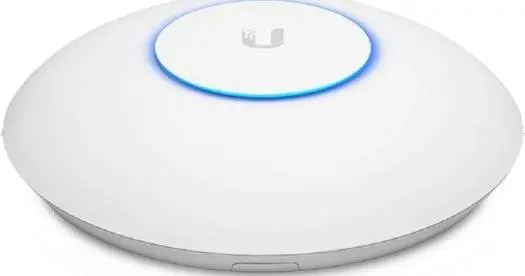

Ubiquiti UniFi XG – Quad-Radio Wave 2 Enterprise Wi-Fi 5 Access Point (UAP-XG)
The UniFi XG (UAP-XG) from Ubiquiti is a flagship, ultra-high-capacity 802.11ac Wave 2 access point built for extreme client density and mission-critical wireless environments. With four integrated radios—three dedicated to client traffic and one dedicated security radio—the UAP-XG delivers exceptional performance, security, and scalability, supporting up to 1,500+ concurrent clients from a single AP.
Designed for stadiums, convention centers, auditoriums, and large enterprise spaces, the UAP-XG pairs 4×4 MU-MIMO, beamforming, and 10GbE uplink with 802.3bt PoE++ power for simplified, single-cable deployment. Centralized management via the UniFi Controller provides deep analytics, guest portal/hotspot capabilities, VLANs, and advanced QoS—everything needed to run massive Wi-Fi networks reliably.
Key Highlights
Quad-radio design (3 client radios + 1 security radio)
Wi-Fi 5 (802.11ac Wave 2) with 4×4 MU-MIMO
Up to 1,500+ concurrent clients
10GbE (1/10 GbE ICM) uplink + 1× GbE RJ45
802.3bt PoE++ single-cable power & data
Integrated dual-polarity antennas with beamforming
Enterprise features via UniFi Controller
Built for Extreme Density & Security
Dedicated Security Radio
A separate radio continuously monitors the RF environment for threats and anomalies—enhancing network visibility and protection without impacting client performance.
High-Capacity Performance
Three client radios, each optimized with MU-MIMO and beamforming, maximize throughput and airtime efficiency in crowded venues.
Simple, Flexible Deployment
Mount on ceiling, wall, or junction box with included hardware—no separate power run required thanks to PoE++.
Enterprise Management with UniFi
Centralized provisioning, RF optimization, guest portals, VLAN segmentation, per-user rate limiting, and detailed analytics—all from a single dashboard.
Technical Specifications – UniFi XG (UAP-XG)
Mechanical
| Item | Specification |
| Dimensions | Ø228 × 50 mm (Ø9 × 2 in) |
| Weight | 1.2 kg (without mount) / 1.4 kg (with mount) |
| Mounting | Wall / Ceiling / Junction Box (included) |
| Color | White |
Interfaces & Power
| Item | Specification |

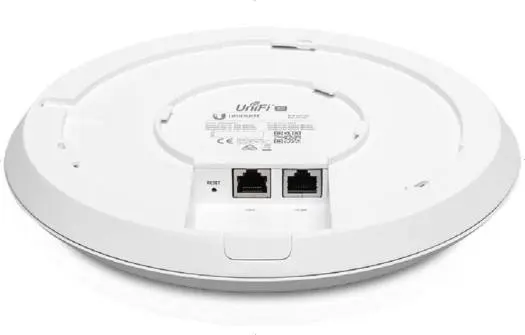

| Ethernet | 1 × GbE RJ45 |
| High-Speed Uplink | 1 × 1/10 GbE ICM |
| Power Method | PoE++ (802.3bt) |
| Power Supply | 50V DC, 1.2A PoE++ Adapter |
| Max Power Consumption | 31 W |
| Supported Voltage | 44–57 V DC |
Wireless Performance
| Band | Specification |
| Standards | 802.11 a/b/g/n/ac / ac-Wave 2 |
| MIMO | 2.4 GHz: 4×4 / 5 GHz: 4×4 |
| Throughput | 2.4 GHz: up to 800 Mbps / 5 GHz: up to 1733 Mbps |
| TX Power | 25 dBm (2.4 & 5 GHz) |
| Antenna Gain | 6 dBi (2.4 GHz) / 8 dBi (5 GHz) |
| BSSID | Up to 8 per radio |
| Concurrent Clients | 1500+ |
| Beamforming | Supported |
Security, QoS & Features
| Item | Specification |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise, 802.11w/PMF |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Isolation | Supported |
| WMM | Voice, Video, Best Effort, Background |
| LEDs | RGB |
| Button | Factory reset |
Environment & Compliance
| Item | Specification |
| Operating Temperature | −10 to 60°C (14 to 140°F) |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC |
