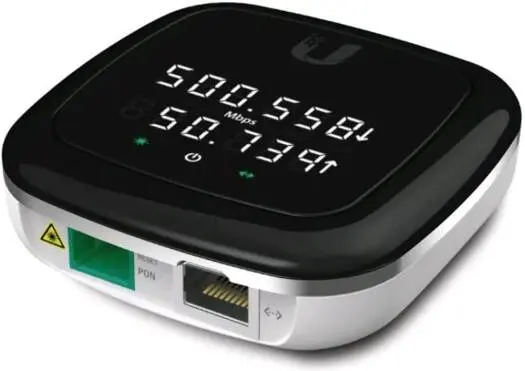

Ubiquiti UF-NANO UFiber GPON Optical Network Unit – Gigabit Fiber Internet Terminal

The Ubiquiti UF-NANO UFiber GPON is a compact Gigabit Passive Optical Network (GPON) terminal designed to deliver high-speed fiber connectivity for residential and business networks. Built for reliable fiber deployments, it connects directly to a GPON fiber network through a dedicated optical port and provides a Gigabit Ethernet connection for local devices.

Supporting downstream speeds up to 2.488 Gbps and upstream speeds up to 1.244 Gbps, the UF-NANO ensures fast internet performance suitable for high-bandwidth applications such as streaming, cloud services, VoIP, and enterprise networking. The device operates using 1490 nm downstream and 1310 nm upstream wavelengths, delivering stable optical transmission and extended network reach.

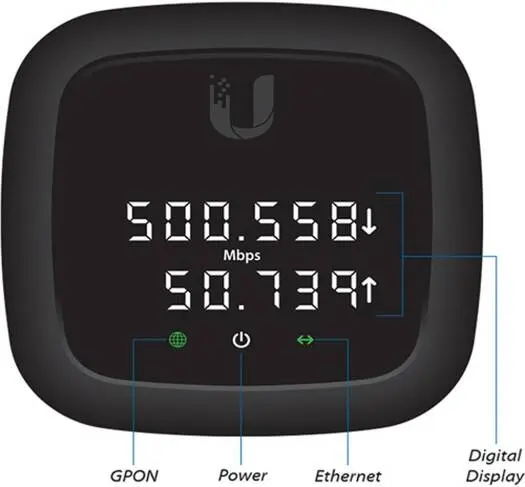

A digital LED status display allows users to easily monitor connection status and device activity. The device also supports 24V Passive PoE power, simplifying installation by allowing both power and data delivery through a single cable.

Key Features

• GPON fiber network terminal (ONT/ONU)

• Gigabit Ethernet port for high-speed device connectivity

• Supports 2.488 Gbps downstream and 1.244 Gbps upstream

• Digital LED display for real-time connection status

• 24V Passive PoE power support

• Compact wall-mountable design for easy installation

• Reliable fiber connectivity for homes and businesses

Connectivity

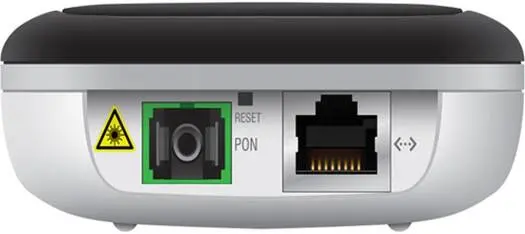

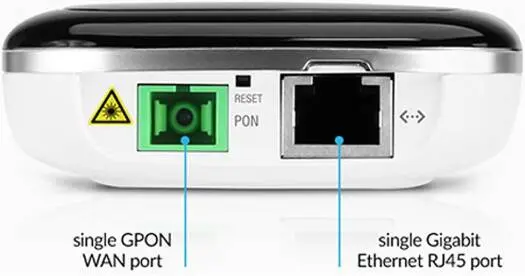

• WAN Port: 1 × GPON fiber port

• LAN Port: 1 × Gigabit Ethernet (RJ45)

Performance

• Downstream Speed: Up to 2.488 Gbps

• Upstream Speed: Up to 1.244 Gbps

• Downstream Wavelength: 1490 nm

• Upstream Wavelength: 1310 nm

Power & Installation

• Power Method: 24V Passive PoE

• Mounting: Wall-mount design for convenient placement

• Simplified installation with minimal cabling
