Product Description

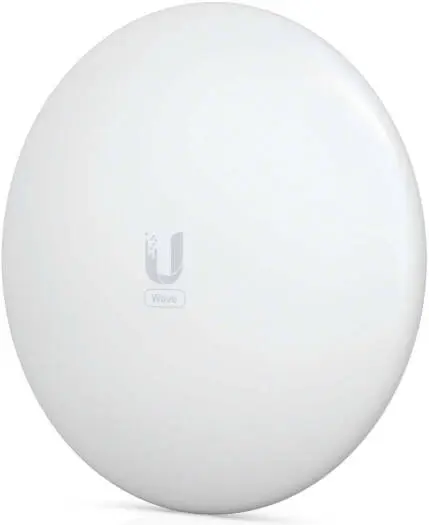

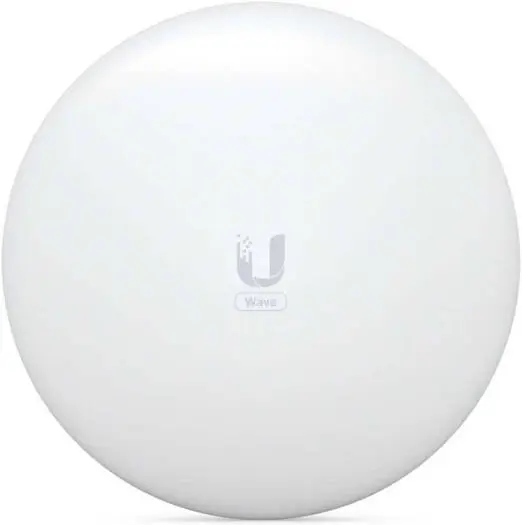

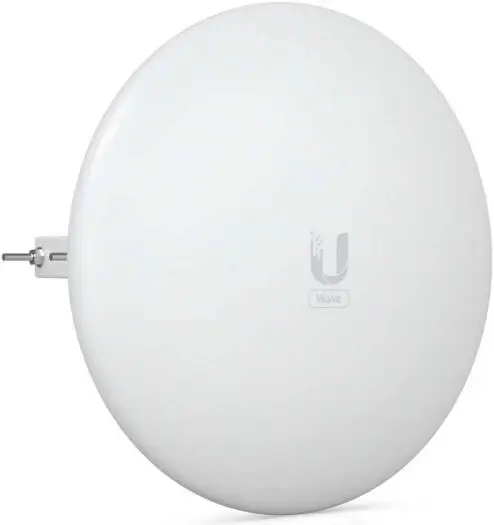

Ubiquiti UISP Wave Long-Range (Wave-LR)
Ultra-High-Capacity 60 GHz Wireless Bridge for Long-Distance Links
The Ubiquiti UISP Wave Long-Range (Wave-LR) is a next-generation 60 GHz wireless bridge designed to deliver fiber-like speeds over long distances. Built on Wave Technology, it provides up to 2 Gbps total throughput (1 Gbps full-duplex) with a reliable link range of 8+ km, making it ideal for WISPs, enterprise backhaul, campus interconnects, and PtMP deployments.

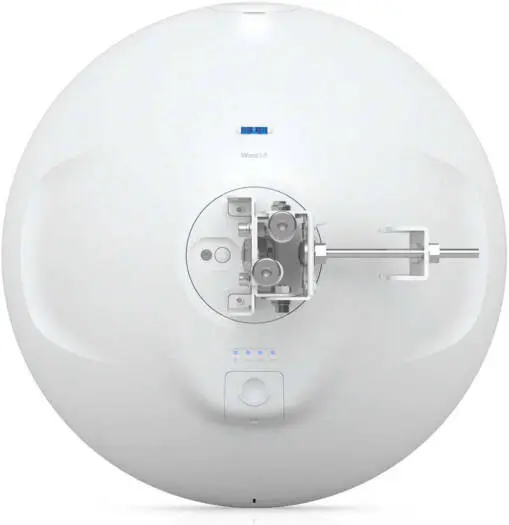

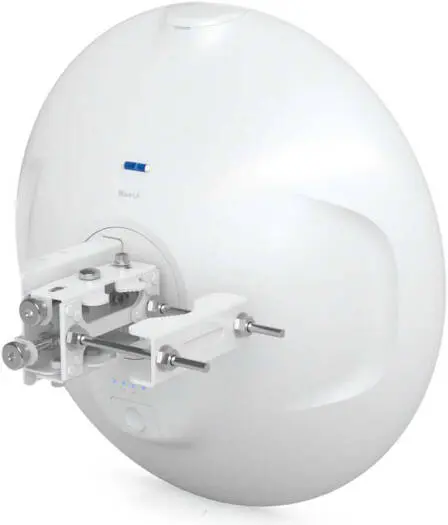

Engineered for harsh outdoor environments, the Wave-LR features a rugged IPX6-rated enclosure, precision alignment mount, and integrated GPS for accurate synchronization. A Wi-Fi 6 (5 GHz) backup radio ensures link resilience with up to 800 Mbps throughput if the 60 GHz link is interrupted. Centralized monitoring and configuration are easily handled through the UISP web and mobile applications.
Key Features
2 Gbps total throughput (1 Gbps full-duplex)
8+ km long-range 60 GHz wireless connectivity
Wi-Fi 6 (802.11ax) 5 GHz backup radio (up to 800 Mbps)
46 dBi high-gain directional antenna
Integrated GPS & Bluetooth
IPX6 weatherproof outdoor design
GbE RJ45 port with PoE power
Centralized management via UISP platform
Ideal Use Cases
Long-distance PtP & PtMP backhaul
Wireless ISP (WISP) infrastructure
Enterprise & campus network extension
High-capacity outdoor wireless bridges
Specifications
Performance
| Item | Details |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| Max Range | 8+ km |
| Encryption | WPA2-PSK (AES) |
RF – 60 GHz
| Item | Details |
| Operating Frequency | 57–71 GHz |
| Channel Bandwidth | 2160 / 1080 MHz |
| Modulation | QPSK, 16QAM |
| Antenna Gain | 46 dBi |
| Polarization | Vertical Linear |
| Beamwidth | 1° (Azimuth / Elevation) |
Backup RF – 5 GHz (Wi-Fi 6)
| Item | Details |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Max Throughput | Up to 800 Mbps |
| Channel Bandwidth | 20 / 40 / 80 MHz |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
| Beamwidth | 8° (Azimuth / Elevation) |
Hardware
| Item | Details |
| Processor | Dual-core ARM Cortex-A53 @ 1 GHz |
| Memory | 512 MB DDR3L |
| Ethernet | 1× GbE RJ45 |
| Power Consumption | Max 20 W |
| Power Method | Passive PoE (44–54 V DC) |
| PoE Adapter | 48 V 0.65 A (included) |
| GPS | Yes |
Mechanical & Environmental
| Item | Details |
| Dimensions | Ø 424.4 × 166.2 mm |
| Weight | 2.59 kg (without mount) / 3.79 kg (with mount) |
| Enclosure | UV-stabilized plastic |
| Mounting | Pole mount (25–76 mm) |
| Wind Survivability | 200 km/h (125 mph) |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60 °C |
| Operating Humidity | 5–95% (non-condensing) |
Software & Management
| Item | Details |
| Operating Modes | PtMP Station, PtP* |
| Management Platform | UISP (Web & Mobile) |
| Tools | Antenna alignment, speed test, ping, traceroute |
| Application Requirement | UISP v1.4.5 or later |
