Product Description

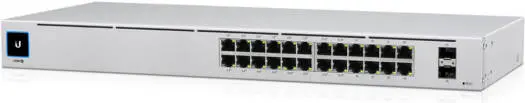

Ubiquiti UniFi Standard 24 PoE (USW-24-PoE)
24-Port Gigabit PoE+ Managed Switch with SFP & Touch Display
The Ubiquiti UniFi Standard 24 PoE is a fully managed Layer 2 Gigabit switch designed to power and connect modern business networks with ease. Featuring 24× Gigabit Ethernet ports, 16× PoE+ ports with a 95W total PoE budget, and 2× 1G SFP uplinks, it’s ideal for powering UniFi access points, IP cameras, VoIP phones, and other PoE-enabled devices.
With a 52 Gb/s switching capacity, 38.69 Mpps forwarding rate, silent passive cooling, and intuitive management via the 1.3" touchscreen or UniFi Network Controller, the USW-24-PoE delivers reliable performance, scalability, and centralized control in a sleek rack-mountable design.
Key Features
24× Gigabit Ethernet (RJ45) ports
16× PoE+ (802.3af/at) ports, up to 32W per port
95W total PoE budget
2× 1G SFP uplink ports
52 Gb/s switching capacity
38.69 Mpps forwarding rate
1.3" color touchscreen for status & quick management
Fanless, passive cooling for silent operation
Centralized management with UniFi Network Controller
Ideal Use Cases
Small to medium business networks
UniFi AP, camera, and VoIP deployments
Retail stores, offices, and hospitality environments
Quiet installations requiring fanless operation
Specifications
Mechanical
| Item | Details |
| Dimensions | 442 × 200 × 44 mm |
| Weight | 3.0 kg (without brackets) / 3.1 kg (with brackets) |
| Enclosure | SGCC steel |
| Form Factor | 1U rack-mount / desktop |
Hardware & Performance
| Item | Details |
| Ports | 24× GbE RJ45 |
| SFP Ports | 2× 1G SFP |
| PoE Ports | 16× PoE / PoE+ |
| Switching Capacity | 52 Gbps |
| Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 38.69 Mpps |
PoE Capabilities
| Item | Details |
| Total PoE Budget | 95W |
| Max PoE per Port | 32W (PoE+) |
| PoE Voltage | PoE: 44–57V / PoE+: 50–57V |
Power & Management
| Item | Details |
| Power Supply | Internal AC/DC, 120W |
| Input Voltage | 100–240V AC |
| Max Power Consumption | 25W (excluding PoE output) |
| Management | Ethernet In-Band |
| Display | 1.3" Touchscreen |
| Button | Factory reset |
Environmental & Safety
| Item | Details |
| Operating Temperature | -5 to 40°C |
| Operating Humidity | 10–90% (non-condensing) |
| ESD/EMP Protection | ±16kV air / ±12kV contact |
| Certifications | CE, FCC, IC |
