Product Description

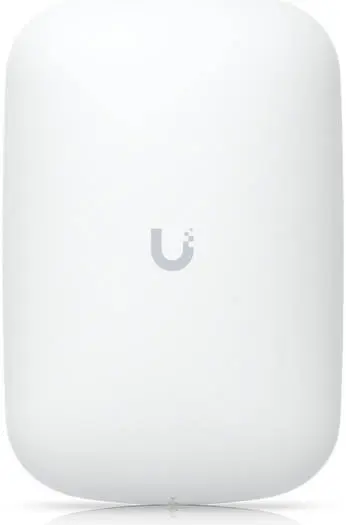

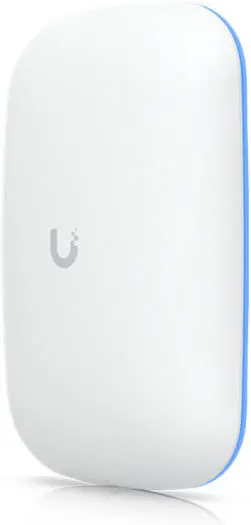

Ubiquiti UniFi U6 Extender Dual-Band Wi-Fi 6 Range Extender | Up to 4.8 Gbps | U6-Extender
The Ubiquiti UniFi U6 Extender is a compact, plug-and-play Wi-Fi 6 range extender designed to instantly expand wireless coverage in homes, offices, hotels, and small business environments.
With dual-band Wi-Fi 6 (802.11ax) technology and up to 4.8 Gbps aggregate throughput, it delivers fast, stable, and reliable connectivity even in device-dense networks.
Engineered for simplicity, the U6 Extender plugs directly into a standard wall outlet, eliminating the need for Ethernet cabling or PoE switches. It can be adopted in minutes and centrally managed through the UniFi Network web interface or UniFi Mobile App.
Key Features
Wi-Fi 6 (802.11ax) Range Extender
Up to 4.8 Gbps Aggregate Throughput
Dual-Band Operation: 2.4 GHz & 5 GHz

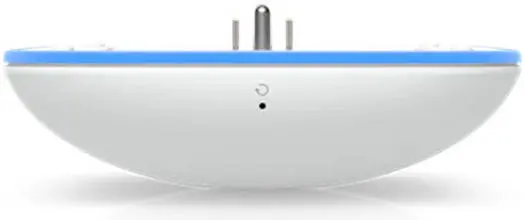

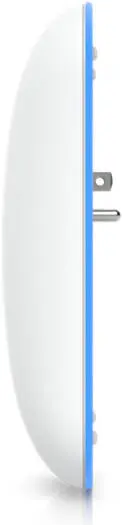

Outlet Plug-In Design (No Ethernet Required)
Supports 300+ Concurrent Clients
Advanced MU-MIMO Performance
WPA3 Enterprise-Grade Security
Guest Traffic Isolation
Managed via UniFi Network App
Includes Mounting Kit
Effortless Wi-Fi Coverage Expansion
The U6 Extender is ideal for eliminating dead zones without redesigning your network. Its wall-outlet form factor blends seamlessly into any space, while Wi-Fi 6 performance ensures smooth streaming, video calls, and cloud access across extended areas.
Perfect for:
Homes & apartments
Offices & meeting rooms
Hotels & serviced apartments
Retail spaces & cafés
Enterprise-Level Security & Control
WPA-PSK & WPA-Enterprise (WPA/WPA2/WPA3)
VLAN support (802.1Q)
Per-user rate limiting
Guest traffic isolation
Centralized management via UniFi
Specifications
Mechanical
| Item | Specification |
| Dimensions (US) | 169.7 × 112.2 × 32.2 mm (6.7 × 4.4 × 1.3") |
| Dimensions (EU) | 169.7 × 112.2 × 77.6 mm (6.7 × 4.4 × 3.1") |
| Weight (US) | 290 g (10.2 oz) |
| Weight (EU) | 340 g (12 oz) |
| Enclosure Material | Polycarbonate |
Hardware
| Item | Specification |
| Management Interface | Bluetooth |
| Power Method | Universal AC input |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Max Power Consumption | 11 W |
| LEDs | White / Blue |
| Button | Factory Reset |
Wireless Performance
| Band | Throughput | MIMO | Max TX Power | Antenna Gain |
| 2.4 GHz | 573.5 Mbps | 2×2 UL MU-MIMO | 22 dBm | 5 dBi |
| 5 GHz | 4.8 Gbps | 4×4 DL/UL MU-MIMO | 26 dBm | 6 dBi |
Total Aggregate Throughput: Up to 4.8 Gbps
Software & Wireless Standards
| Feature | Details |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero-Wait DFS | Yes* (Firmware dependent) |
Supported Data Rates
Wi-Fi 5 (802.11ac): Up to 3.4 Gbps
Wi-Fi 6 (802.11ax): Up to 4.8 Gbps
Environment & Certifications
| Item | Specification |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | 5% – 95% (Non-condensing) |
| Certifications | CE, FCC, IC |
