Product Description

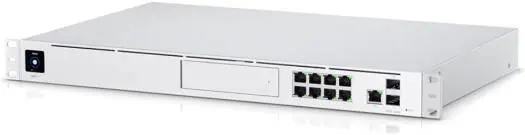

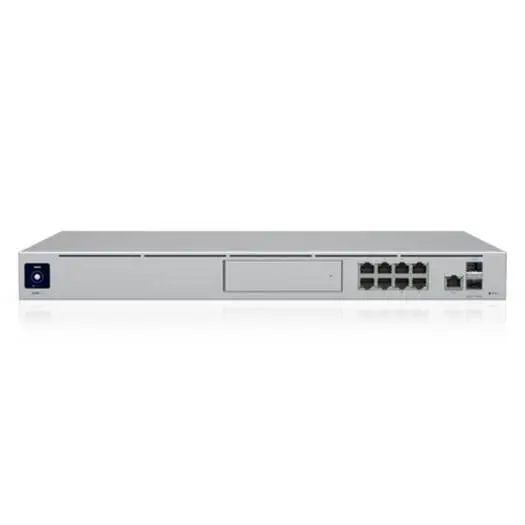

Ubiquiti UniFi Dream Machine Pro – All-In-One Enterprise Network Appliance | UDM-Pro
The UniFi Dream Machine Pro (UDM-Pro) is a powerful all-in-one enterprise network appliance designed for scalable business networks in offices, retail, hospitality, and enterprise environments. It combines a next-generation security gateway, managed switch, 10G networking, and NVR functionality into a single 1U rack-mount device.
Powered by a 1.7 GHz quad-core ARM Cortex-A57 processor, the UDM-Pro delivers advanced IDS/IPS security, dual-WAN failover, and centralized management via the built-in UniFi Network Controller. It also supports UniFi Protect, allowing secure local video storage and management using an internal HDD (sold separately).
Key Features
All-In-One Enterprise Network Appliance
Advanced Security Gateway with IDS/IPS
Dual WAN Ports (1× 10G SFP+ + 1× Gigabit RJ45)
10G SFP+ LAN Port
8-Port Gigabit Managed Switch
Built-in UniFi Network Controller
UniFi Protect NVR Support
2.5” / 3.5” HDD Bay (HDD not included)
1U Rack-Mountable Design
1.3” Touchscreen Display
Designed for Business & Enterprise Networks
The UDM-Pro is ideal for:
Corporate offices & branches
Retail & hospitality networks
Schools & campuses
Security-focused UniFi deployments
It eliminates the need for multiple devices by combining gateway, switch, controller, and NVR in one unit.
Enterprise-Grade Security & Performance
IDS/IPS throughput up to 3.5 Gbps
Application-aware firewall rules
Signature-based threat detection
Content, country, domain & ad filtering
Full stateful firewall
VLAN & subnet-based traffic segmentation
Advanced WAN, VPN & SD-WAN
Redundant WAN with failover & load balancing
License-free SD-WAN
WireGuard, L2TP & OpenVPN servers
OpenVPN & IPsec site-to-site VPN
One-click Teleport & Identity VPN
Policy-based WAN & VPN routing
LTE Backup support (via UniFi LTE)
Specifications
Hardware
| Feature | Specification |
| Processor | Quad-core ARM Cortex-A57 @ 1.7 GHz |
| Memory | 4 GB DDR4 |
| Storage | 16 GB eMMC |
| LAN Ports | 8 × GbE RJ45, 1 × 10G SFP+ |
| WAN Ports | 1 × GbE RJ45, 1 × 10G SFP+ |
| IDS/IPS Throughput | Up to 3.5 Gbps |
| HDD Bay | 2.5” / 3.5” SATA (Not Included) |
| Display | 1.3” Touchscreen |
| Form Factor | 1U Rack-Mount |
Power & Environment
| Item | Details |
| Power Supply | Internal AC/DC, 50W |
| Power Input | 100–240V AC |
| Max Power Consumption | 33W |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 5–95% non-condensing |
| ESD Protection | ±15kV Air / ±8kV Contact |
Physical
| Item | Value |
| Dimensions | 442.4 × 43.7 × 285.6 mm |
| Weight | 3.9 kg |
| Enclosure | Aluminum CNC & SGCC Steel |
| Certifications | CE, FCC, IC |
