Product Description

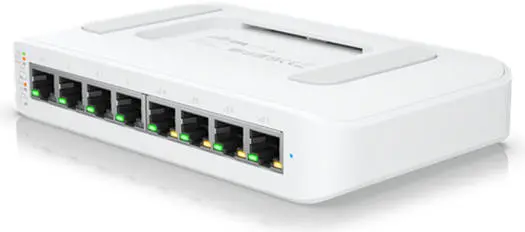

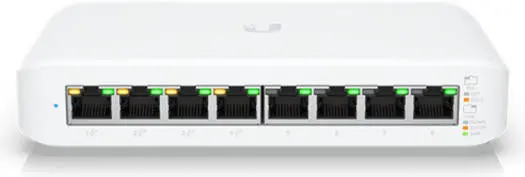

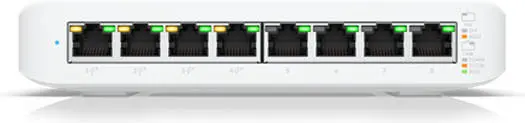

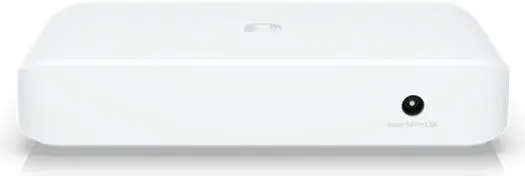

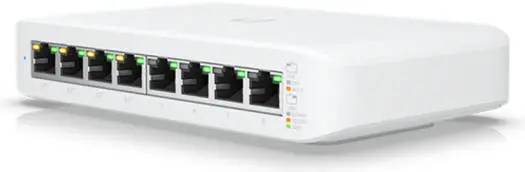

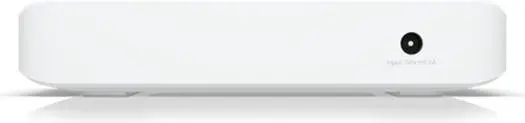

Ubiquiti UniFi Lite 8-Port Gigabit PoE+ Managed Switch | 52W | USW-Lite-8-PoE
The Ubiquiti UniFi USW-Lite-8-PoE is a compact, fully managed Layer 2 Gigabit switch designed to power and connect UniFi access points, IP cameras, VoIP phones, and other PoE-enabled devices.
With 8 Gigabit Ethernet ports and 4 auto-sensing PoE+ (802.3at) ports, it delivers up to 52W total PoE power, making it ideal for home networks, small offices, and branch deployments.
Managed centrally through the UniFi Network Controller or UniFi Mobile App, the USW-Lite-8-PoE offers enterprise-grade visibility, control, and reliability in a small, silent, desktop-friendly form factor.
Key Features
8 × Gigabit Ethernet (RJ45) Ports
4 × PoE+ (802.3at) Auto-Sensing Ports
52W Total PoE Power Budget
Layer 2 Managed Switch
8 Gbps Non-Blocking Throughput
16 Gbps Switching Capacity
Desktop or Wall-Mount Installation
Centralized Management via UniFi Network
Includes Wall-Mounting Kit
Reliable Power & Performance
Designed to support UniFi access points and other PoE devices, the USW-Lite-8-PoE provides stable power delivery with up to 30W per PoE+ port, ensuring dependable performance for demanding network environments.
Perfect for:
UniFi AP deployments
IP cameras & VoIP phones
Smart offices & retail spaces
Home labs & SMB networks
Centralized UniFi Management
Configure VLANs, port profiles, and traffic policies
Monitor power usage and network performance
Manage remotely via UniFi Controller or Mobile App
Seamless integration into UniFi ecosystems
Specifications
Mechanical
| Item | Specification |
| Dimensions | 99.6 × 163.7 × 31.7 mm (4 × 6.4 × 1.3") |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Desktop / Wall Mount (Kit Included) |
Hardware
| Item | Specification |
| Management Interface | Ethernet (In-Band) |
| Networking Interfaces | 8 × Gigabit Ethernet (RJ45) |
| PoE Interfaces | 4 × PoE / PoE+ (802.3at) |
| Total Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Max PoE Output | 52W Total |
| Max PoE per Port | 30W (PoE+) |
| Power Supply | External 54V DC, 60W |
| Max Power Consumption | 8W (excluding PoE output) |
| Button | Factory Reset |
Power
| Item | Specification |
| Power Method | 54V DC, 1.1A |
| Supported Voltage Range | 50–57V DC |
| Total Available PoE | 52W* |
| * With included 60W power adapter |
LED Indicators
| LED | Function |
| System | Status |
| Ethernet | Speed / Link / Activity |
| PoE | PoE Status & Activity |
Environment & Certifications
| Item | Specification |
| Operating Temperature | -15°C to 40°C (5°F to 104°F) |
| Operating Humidity | 10% – 90% (Non-condensing) |
| Certifications | CE, FCC, IC |
