Product Description

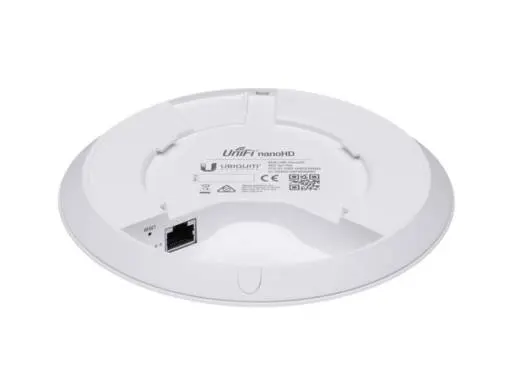

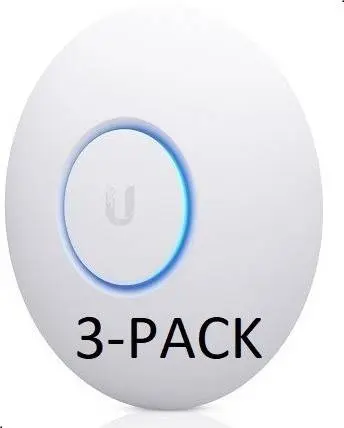

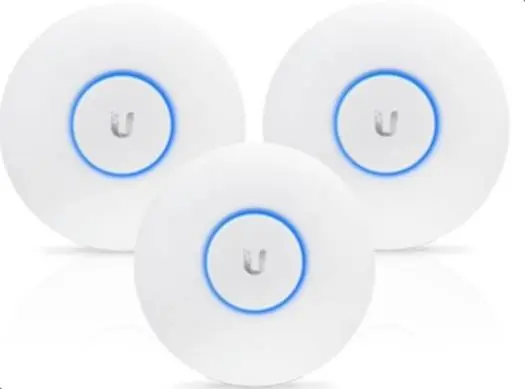

Ubiquiti UniFi nanoHD – Wave 2 MU-MIMO Enterprise Wi-Fi 5 Access Point (3-Pack) | UAP-nanoHD-3
The UniFi nanoHD (UAP-nanoHD) from Ubiquiti is a compact, high-density enterprise Wi-Fi 5 (802.11ac Wave 2) access point designed to deliver exceptional performance where space, aesthetics, and capacity matter. This 3-pack bundle is ideal for offices, hotels, retail spaces, classrooms, and high-traffic indoor environments requiring powerful wireless coverage with a minimal visual footprint.
Powered by 4×4 MU-MIMO on 5 GHz, the nanoHD delivers up to 1.73 Gbps of wireless throughput, enabling simultaneous communication with multiple clients and significantly improving performance in congested networks. Dual-band operation (2.4 GHz & 5 GHz), advanced RF optimization, and enterprise-grade QoS ensure smooth streaming, fast roaming, and reliable connectivity.
Managed through the UniFi Controller, the nanoHD offers centralized control, deep analytics, guest portal & hotspot features, VLAN support, and seamless scalability—making it a future-ready solution for growing networks.
Key Highlights
Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO
Up to 1733 Mbps wireless throughput
4×4 spatial streams (5 GHz) for high-density use
Compact, low-profile design (ideal for discreet installs)
Powered via 802.3af PoE
Centralized management via UniFi Controller
3-Pack – perfect for multi-room or multi-zone coverage
Designed for High-Density & Modern Spaces
Wave 2 MU-MIMO Performance
Unlike Wave 1 access points, the nanoHD communicates with multiple devices simultaneously, dramatically increasing overall capacity and user experience in crowded environments.
Advanced RF & Traffic Management
Airtime fairness & band steering
Spectral analysis & RF environment scanning
Per-user rate limiting & VLAN tagging
Enterprise-Grade Guest Experience
Customizable guest portal & hotspot
Voucher-based and payment-based authentication
Traffic isolation and bandwidth control
Scalable UniFi Ecosystem
Deploy one site or thousands—UniFi’s SDN platform allows centralized management across multiple locations and tenants using a single controller.
Technical Specifications – UniFi nanoHD (UAP-nanoHD-3)
Hardware & Interfaces
| Item | Specification |
| Ethernet Port | 1 × 10/100/1000 Mbps |
| Button | Reset |
| Power Method | 802.3af PoE |
| Max Power Consumption | 10.5 W |
| Supported Voltage | 44–57 VDC |
Wireless Performance
| Item | Specification |
| Wi-Fi Standards | 802.11a/b/g/n/ac / ac-Wave 2 |
| MIMO Technology | 2.4 GHz: 2×2 / 5 GHz: 4×4 |
| Max Data Rates | 2.4 GHz: 300 Mbps / 5 GHz: 1733 Mbps |
| TX Power | 2.4 GHz: 23 dBm / 5 GHz: 26 dBm |
| Antennas | 2.4 GHz: 2.8 dBi / 5 GHz: 3 dBi |
| BSSID | 8 per radio |
| Concurrent Clients | 200+ |
Security & QoS
| Item | Specification |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Isolation | Supported |
| WMM | Voice, Video, Best Effort, Background |
Mechanical & Environmental
| Item | Specification |
| Dimensions | 160 × 160 × 32.65 mm |
| Weight | 300 g (315 g with mounting kits) |
| Mounting | Wall / Ceiling (kits included) |
| Operating Temperature | −10 to 70°C (14 to 158°F) |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC |
