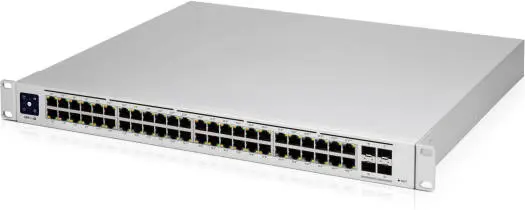

Ubiquiti UniFi Pro 48-Port Gigabit PoE++ Managed Switch with 10G SFP+ | USW-Pro-48-PoE
The UniFi Switch Pro 48 PoE (USW-Pro-48-PoE) is a high-performance, enterprise-grade Layer 3 managed switch designed for demanding business networks, data centers, and large UniFi deployments.
It delivers massive power and throughput with 48 Gigabit Ethernet ports, including 40 PoE+ ports and 8 high-power PoE++ ports, backed by an impressive 600W total PoE budget.
With 176 Gbps switching capacity, 130.94 Mpps forwarding rate, and 4× 10G SFP+ uplink ports, this switch ensures ultra-low latency and high scalability for access points, IP cameras, VoIP systems, and other power-hungry devices.
Key Features
48 × Gigabit Ethernet (RJ45) Ports
40 × PoE+ (802.3at) Ports
8 × PoE++ (802.3bt) High-Power Ports (Up to 64W per Port)
600W Total PoE Power Budget
4 × 10Gb SFP+ Uplink Ports
176 Gbps Switching Capacity
130.94 Mpps Forwarding Rate
Layer 3 Switching Support
1.3" Color Touchscreen Display
Passive Cooling (Silent Operation)
Rack-Mountable (1U)
Managed via UniFi Network Controller
Enterprise-Class Power & Performance
Built for large-scale deployments, the USW-Pro-48-PoE powers and connects:
High-density UniFi Access Points
4K / PTZ IP security cameras
VoIP phones and access control systems
Servers and aggregation switches
With PoE++ support, it easily handles next-generation devices requiring higher wattage—without external injectors.
Advanced UniFi Management
Centralized cloud or local management via UniFi Network Controller
Real-time monitoring from the 1.3" touchscreen
VLANs, ACLs, QoS, and traffic segmentation
Layer 3 routing for inter-VLAN communication
Redundant power support via USP-RPS
Specifications
Mechanical
| Item | Specification |
| Dimensions | 442 × 400 × 44 mm (17.4 × 15.7 × 1.7") |
| Weight | 6.2 kg (without brackets) / 6.3 kg (with brackets) |
| Form Factor | Rack-Mountable (1U) |
| Enclosure Material | SGCC Steel |
Hardware
| Item | Specification |
| Management Interface | Ethernet In-Band |
| Ethernet Ports | 48 × Gigabit RJ45 |
| SFP+ Ports | 4 × 1/10 GbE |
| Total Non-Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Display | 1.3" Touchscreen (LCM) |
| Button | Factory Reset |
PoE Capabilities
| Item | Specification |
| PoE Standards | PoE, PoE+, PoE++ |
| PoE Ports | 40 × PoE+ / 8 × PoE++ |
| Max PoE Power Budget | 600W |
| Max Power per Port | PoE+: 32W / PoE++: 64W |
| Voltage Range | PoE: 44–57V / PoE+: 50–57V |
Power
| Item | Specification |
| Power Supply | Internal AC/DC, 660W |
| Power Method | 100–240V AC |
| Redundant Power | USP-RPS DC Input |
| Max Power Consumption | 60W (excluding PoE) |
Environment & Protection
| Item | Specification |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Operating Humidity | 10%–90% (Non-condensing) |
| ESD/EMP Protection | Air: ±16kV / Contact: ±12kV |
| Cooling | Passive (Fanless) |
LED Indicators
System Status
Ethernet Speed / Link / Activity / PoE
SFP+ Link / Activity
RPS Status
Certifications
CE
FCC
IC
