SKU:
USW-Flex
Product Description

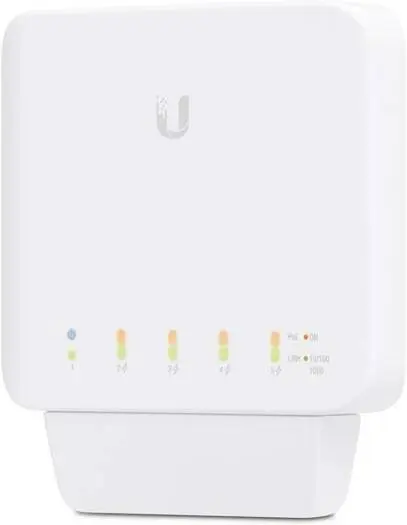

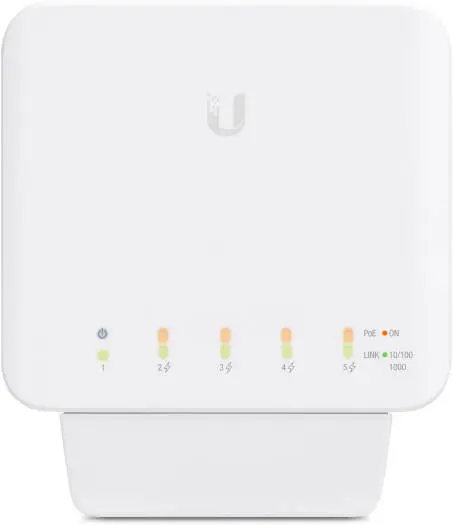

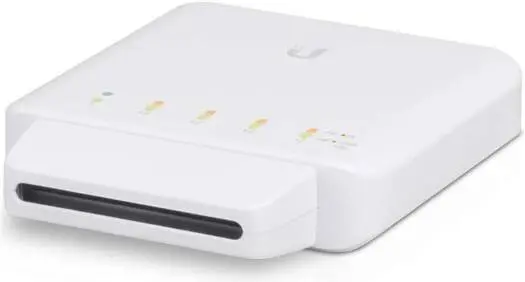

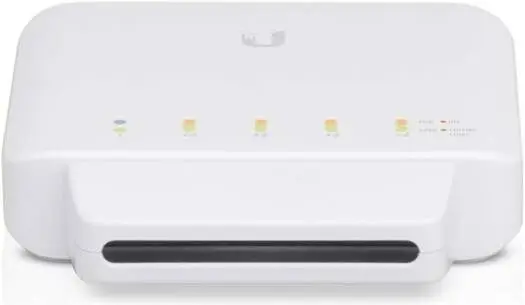

Ubiquiti UniFi Switch Flex 5-Port Managed Gigabit PoE Switch (Indoor / Outdoor) | USW-Flex
The UniFi Switch Flex (USW-Flex) is a compact, fully managed Gigabit PoE switch designed for maximum flexibility in both indoor and outdoor deployments.
With its rugged design, multiple mounting options, and PoE++ power input, it’s the ideal solution for extending UniFi networks to cameras, access points, and IoT devices in challenging locations.
Powered via a 60W 802.3bt PoE++ uplink, the USW-Flex can deliver up to 46W total PoE output across its four PoE ports—making it perfect for pole mounts, ceilings, walls, or steel surfaces using its integrated magnetic backing.
Key Features
5 × Gigabit Ethernet Ports
1 × PoE++ (802.3bt) Input Port
4 × PoE (802.3af) Output Ports
Up to 46W Total PoE Budget
Indoor & Outdoor Rated Design
Flexible Mounting Options (Wall, Pole, Ceiling, Magnetic)
Compact & Rugged Form Factor
Fully Managed via UniFi Network Controller
Flexible Power & Deployment
The UniFi Switch Flex is designed for installations where traditional switches can’t reach:
Outdoor IP cameras
UniFi access points
IoT and access control devices
Remote network extensions
When powered by a compatible PoE++ (60W) source, the switch intelligently distributes power to connected devices—eliminating the need for local power outlets.
Built for Versatile Mounting

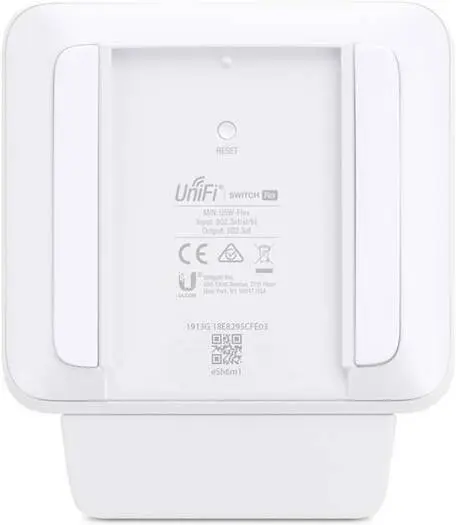

Magnetic backing for quick attachment to steel surfaces
Wall & ceiling mounting for indoor use
Pole mounting for outdoor installations
This makes the USW-Flex ideal for warehouses, parking areas, factories, retail stores, and smart buildings.
Centralized UniFi Management
Full monitoring and configuration via UniFi Network Controller
VLANs, traffic management, and device statistics
Seamless integration into existing UniFi ecosystems
Remote management from web or mobile app
Specifications
Hardware Overview
| Feature | Specification |
| Ethernet Ports | 5 × Gigabit Ethernet |
| PoE Input | 1 × 802.3bt PoE++ (60W) |
| PoE Output | 4 × 802.3af PoE |
| Total PoE Budget | Up to 46W |
| Management | UniFi Network Controller |
| Environment | Indoor / Outdoor |
PoE Capabilities
| Item | Specification |
| PoE Standards | 802.3af (Output), 802.3bt (Input) |
| Max Power Input | 60W PoE++ |
| Max PoE Output | 46W Total |
| PoE Ports | 4 |
