Product Description

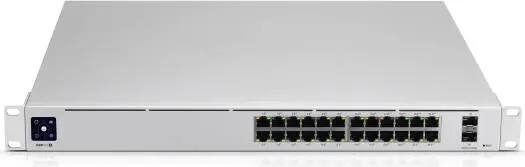

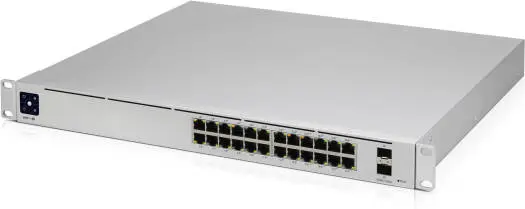

Ubiquiti UniFi Switch Pro 24 (USW-Pro-24)
Enterprise-Grade 24-Port Gigabit Managed Switch with 10G SFP+ Uplinks
The Ubiquiti UniFi Switch Pro 24 is a high-performance enterprise managed switch built for scalable business and campus networks. Equipped with 24× Gigabit Ethernet ports and 2× 10Gb SFP+ uplinks, it delivers fast, reliable connectivity for access layers while providing high-speed fiber aggregation to core switches or servers.
Designed with advanced Layer 2 and Layer 3 features, near-silent passive cooling, and an integrated 1.3" touchscreen, the USW-Pro-24 offers powerful control, flexibility, and resilience. Optional support for UniFi SmartPower RPS adds redundant power capability, making it a dependable choice for mission-critical environments.
Key Features
24× Gigabit Ethernet (RJ45) ports
2× 10Gb SFP+ ports for high-speed uplinks
Layer 2 & Layer 3 capabilities (inter-VLAN routing, static routing, DHCP)
88 Gbps switching capacity
65.472 Mpps forwarding rate
1.3" color touchscreen for system status & monitoring
Rack-mountable 1U steel enclosure
Fanless, passive cooling for quiet operation
Supports UniFi SmartPower RPS for power redundancy
Managed via UniFi Network Controller & mobile app
Ideal Use Cases
Enterprise and campus access layers
SMB and corporate office networks
Aggregation for UniFi APs and switches
Environments requiring 10G uplinks and quiet operation
Specifications
Mechanical
| Item | Details |
| Dimensions | 442 × 285 × 44 mm |
| Weight | 3.5 kg (without brackets) / 3.6 kg (with brackets) |
| Enclosure | SGCC steel |
| Form Factor | 1U rack-mount |
Hardware & Performance
| Item | Details |
| Ports | 24× GbE RJ45 |
| Uplinks | 2× 1/10G SFP+ |
| Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Layer Support | Layer 2 + Layer 3 |
Power & Management
| Item | Details |
| Power Supply | Internal AC/DC, 36W |
| Input Voltage | 100–240V AC |
| Max Power Consumption | 30W |
| Redundant Power | UniFi SmartPower RPS (optional) |
| Management Interface | Ethernet In-Band |
| Display | 1.3" Touchscreen |
| Button | Factory reset |
Environmental & Safety
| Item | Details |
| Operating Temperature | -5 to 45°C |
| Operating Humidity | 10–90% (non-condensing) |
| ESD/EMP Protection | ±16kV air / ±12kV contact |
| Certifications | CE, FCC, IC |
