Product Description

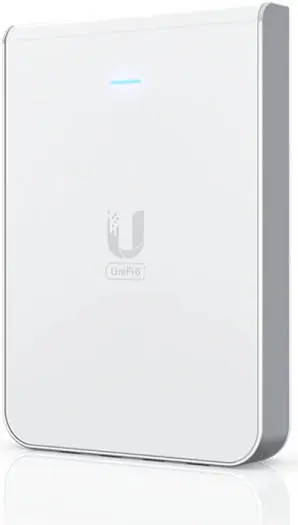

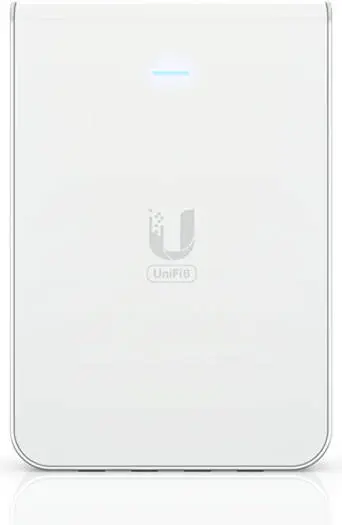

Ubiquiti UniFi U6 In-Wall Wi-Fi 6 Access Point with 4-Port Gigabit PoE Switch | U6-IW
The UniFi U6 In-Wall (U6-IW) is a sleek, wall-mounted Wi-Fi 6 access point that combines high-performance wireless connectivity with a built-in 4-port Gigabit switch, making it ideal for hotels, offices, apartments, and smart homes.
Delivering up to 5.3 Gbps aggregate throughput, the U6-IW provides powerful dual-band Wi-Fi 6 performance while discreetly replacing a standard Ethernet wall outlet. With MU-MIMO support, advanced QoS, and seamless UniFi integration, it ensures fast, reliable connections for both wireless and wired devices.
Key Features
Wi-Fi 6 (802.11ax) Dual-Band Access Point
Up to 5.3 Gbps Total Wireless Throughput
Built-in 4-Port Gigabit Ethernet Switch
1 × Gigabit PoE Uplink Port
1 × PoE Output Port (Requires PoE+ Input)
4×4 MU-MIMO on 5 GHz Band
Supports 300+ Concurrent Clients
In-Wall Mount Design – Clean & Discreet
Managed via UniFi Network Application
Ideal for Modern Spaces
The U6-IW is perfect for environments that need both Wi-Fi and wired connectivity in one compact unit, such as:
Hotel rooms & serviced apartments
Office meeting rooms
Residential smart homes
Classrooms & training centers
It allows you to connect TVs, IP phones, PCs, or cameras directly—without adding extra switches.
High-Performance Wi-Fi 6
2.4 GHz: Up to 573.5 Mbps
5 GHz: Up to 4.8 Gbps (160 MHz channel width)
Advanced MU-MIMO for better performance in high-density environments
Per-user rate limiting & guest traffic isolation
Integrated PoE Switching
Powered via PoE+ uplink
Provides PoE output to power an additional device (when PoE+ is used)
Eliminates extra adapters and cabling
Centralized UniFi Management
Full configuration & monitoring via UniFi Network Controller
VLAN support (802.1Q)
WPA3 security, guest isolation, and QoS
Remote management via web & mobile app
Specifications
Hardware
| Feature | Specification |

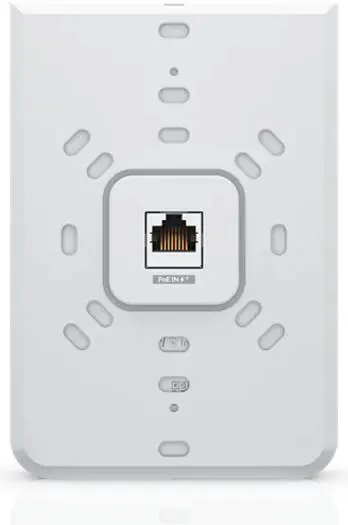

| Ethernet Ports | 1 × GbE PoE In, 4 × GbE Data Out |
| PoE Output | 1 × PoE (Requires PoE+ input) |
| Max Power Consumption | 13W (excluding PoE output) |
| Mounting | In-Wall (Included) |
| Management | Ethernet, Bluetooth |
Wireless Performance
| Band | Specification |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| 2.4 GHz | 573.5 Mbps, 2×2 MU-MIMO |
| 5 GHz | 4.8 Gbps, 4×4 MU-MIMO |
| Concurrent Clients | 300+ |
| Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
Physical & Environment
| Item | Details |
| Dimensions | 139.7 × 96 × 31.2 mm |
| Weight | 460 g |
| Operating Temp | -30°C to 60°C |
| Certifications | CE, FCC, IC |
