Product Description

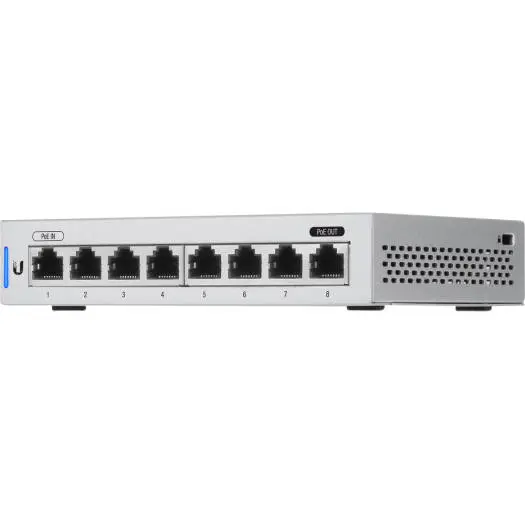

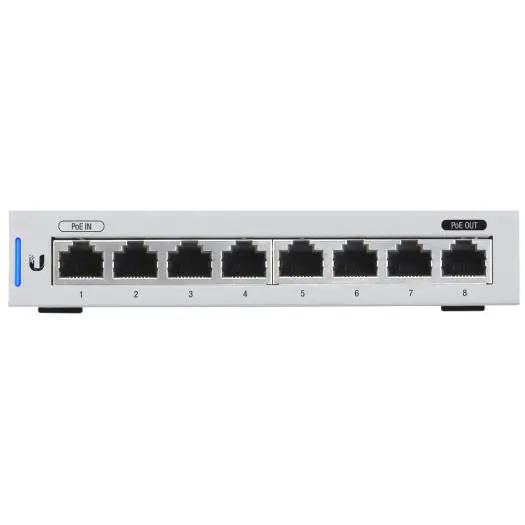

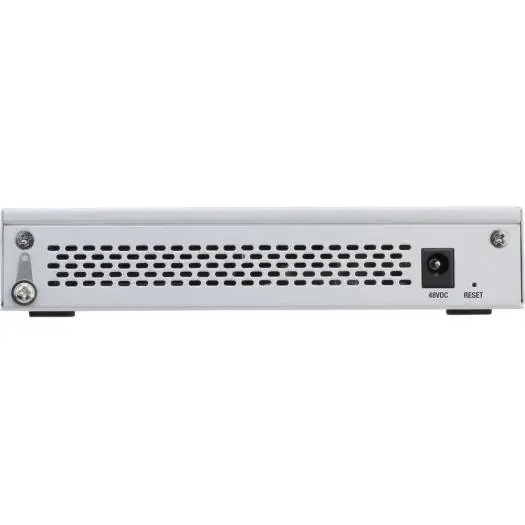

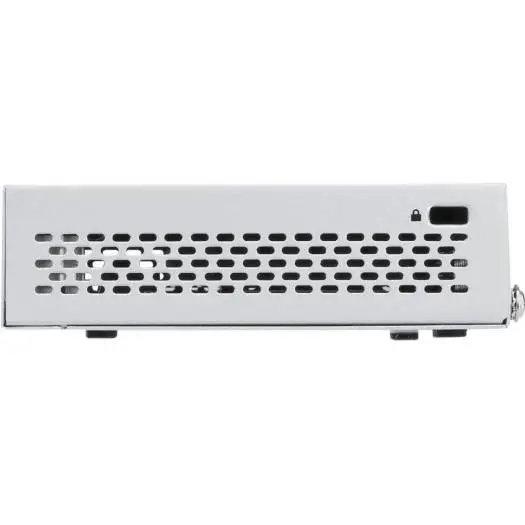

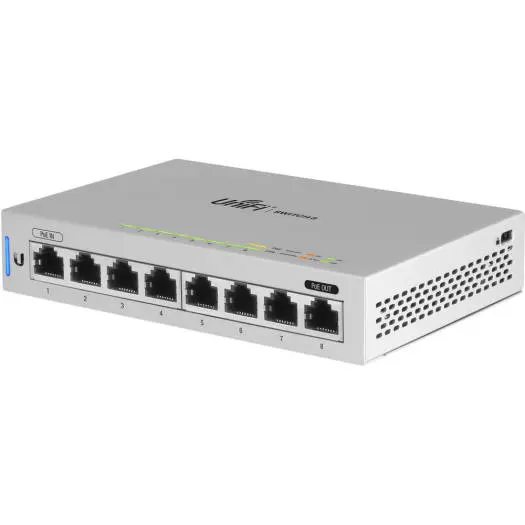

Ubiquiti Networks UniFi Switch 8 – 60W (US-8-60W) | 5-Pack Managed Gigabit PoE Switch
The UniFi Switch 8 (US-8-60W) from Ubiquiti is a compact, fully managed Gigabit Layer-2 switch designed to expand UniFi networks with reliable performance and flexible PoE options. This 5-pack bundle is ideal for multi-room, branch, or distributed deployments where clean PoE-powered switching is required.
Each switch provides 8× Gigabit Ethernet ports, including 4 auto-sensing 802.3af PoE ports, delivering up to 15.4W per PoE port. With 8 Gbps non-blocking throughput, 16 Gbps switching capacity, and a 11.9 Mpps forwarding rate, the US-8-60W handles line-rate traffic without packet loss. It supports PoE passthrough, allowing the switch itself to be powered via PoE while continuing to power downstream devices—perfect for IP cameras, UniFi APs, and VoIP phones.
Management is centralized through the UniFi Network Controller, offering VLANs, port profiles, traffic monitoring, storm control, spanning tree, and 802.1X/RADIUS features—all without licensing fees.
Key Features
5-Pack of fully managed 8-port Gigabit switches
8× RJ45 Gigabit Ethernet ports
4× Auto-Sensing 802.3af PoE ports
PoE passthrough for flexible powering
8 Gbps non-blocking throughput
16 Gbps switching capacity
11.9 Mpps forwarding rate
Low power consumption (12W, excluding PoE output)
Centralized management via UniFi Controller
Technical Specifications
Performance
| Item | Specification |
| Non-Blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
Ports & PoE
| Item | Specification |
| Ethernet Ports | 8× 10/100/1000 Mbps RJ45 |
| PoE Ports | 4× 802.3af auto-sensing |
| Max PoE Output | Up to 15.4W per port |
| Total Available PoE | 12W |
| PoE Modes | 802.3af / Passive 48V / DC Passthrough |
Power
| Item | Specification |
| Power Method | 48V DC or PoE/PoE+ In |
| Max Power Consumption | 12W (excluding PoE output) |
| Voltage Range | 40–56V (PoE mode) |
Mechanical & Environment
| Item | Specification |
| Dimensions | 148 × 99.5 × 30.7 mm |
| Weight | 432 g |
| Enclosure | SGCC steel |
| Operating Temperature | −5 to 45 °C |
| Operating Humidity | 5–95% non-condensing |
Management & Features
UniFi Network Controller (Web & Mobile)
VLANs, port mirroring, aggregation
Jumbo frames & flow control
Storm control & Spanning Tree
802.1X authentication & RADIUS VLAN
Multi-site cloud management
