Product Description

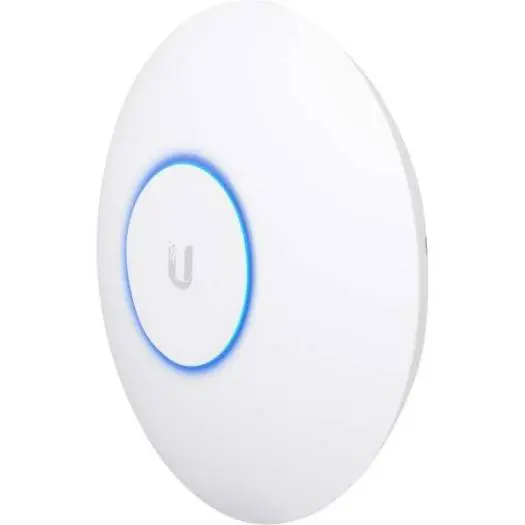

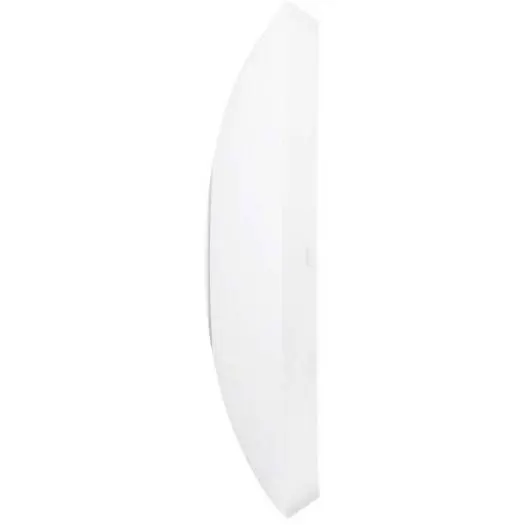

Ubiquiti UniFi AC HD – Wave 2 Enterprise Wi-Fi 5 Access Point (UAP-AC-HD)
The UniFi AC HD (UAP-AC-HD) from Ubiquiti is a high-density enterprise-grade Wi-Fi 5 (802.11ac Wave 2) access point engineered for environments with a large number of simultaneous users. Designed to deliver exceptional performance, reliability, and scalability, it supports up to 500+ concurrent clients with blazing-fast combined throughput of up to 2.53 Gbps.
Powered by 4×4 MU-MIMO technology and advanced beamforming, the UAP-AC-HD communicates with multiple devices at the same time—dramatically improving capacity, reducing latency, and ensuring a smooth user experience in demanding deployments such as offices, hotels, campuses, conference halls, and retail spaces.
Managed centrally via the UniFi Controller, this access point provides enterprise-level features including guest portals, hotspot control, VLANs, QoS, and detailed analytics—all with a clean, scalable Software-Defined Networking (SDN) approach.
Key Highlights
Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO
Up to 2.53 Gbps aggregate throughput
4×4 spatial streams on both 2.4 GHz & 5 GHz
Supports 500+ concurrent clients
Dual Gigabit Ethernet ports
Centralized management via UniFi Controller
Sleek design with ceiling/wall mounting
Built for High-Density Environments
MU-MIMO Wave 2 Performance
Multi-User MIMO allows the UAP-AC-HD to serve multiple clients simultaneously, maximizing airtime efficiency and delivering consistent speeds even in crowded networks.
Hardware Acceleration
Dedicated radio hardware offload for both 2.4 GHz & 5 GHz bands
CPU offloading for QoS, guest control, and client management
Reduced latency and improved multi-user throughput
Optimized Antenna System
Integrated omni-directional antennas are fine-tuned for Wave 2 MU-MIMO beamforming, increasing range, stability, and overall network efficiency.
Enterprise Control with UniFi
The UniFi Controller provides:
Centralized configuration & monitoring
Guest portal & hotspot support
Advanced traffic management
Seamless scalability across sites
Technical Specifications – UniFi AC HD (UAP-AC-HD)
Mechanical
| Item | Specification |
| Dimensions | 220 × 220 × 48.1 mm |
| Weight | 700 g (830 g with mounting kits) |
| Mounting | Wall / Ceiling (kits included) |
Interfaces & Hardware
| Item | Specification |
| Ethernet Ports | 2 × 10/100/1000 Mbps RJ45 |
| USB Port | 1 × USB Type-C |
| Button | Reset |
| Antennas | Internal omni (dual-polarity) |
| Max TX Power | 25 dBm |
Wireless
| Item | Specification |
| Wi-Fi Standards | 802.11a/b/g/n/ac / ac-Wave 2 |
| Spatial Streams | 4×4 |
| BSSID | 4 per radio |
| Max Throughput | Up to 2.53 Gbps |
| Concurrent Clients | 500+ |
| Beamforming | Supported |
| MU-MIMO | Supported |
Power
| Item | Specification |
| Power Method | PoE 802.3at |
| Power Supply | 48V PoE Injector (Included) |
| Max Power Consumption | 17 W |
Security & Traffic Management
| Item | Specification |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Isolation | Supported |
| WMM | Supported |
Environmental & Compliance
| Item | Specification |
| Operating Temperature | −10 to 70°C (14 to 158°F) |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC |
