Product Description

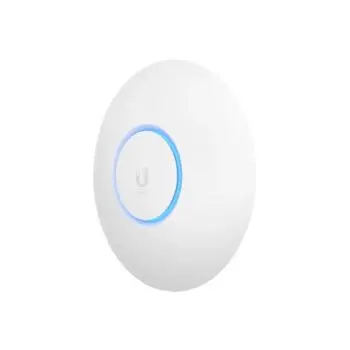

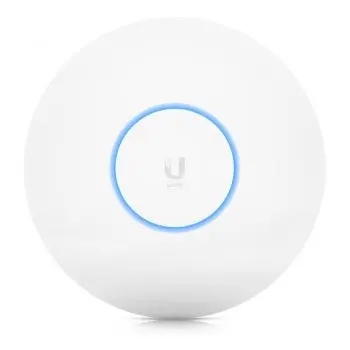

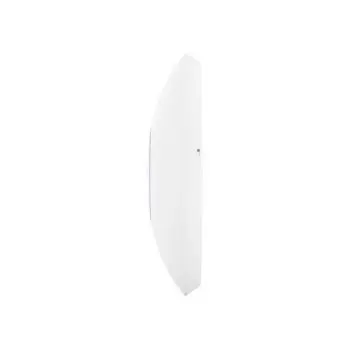

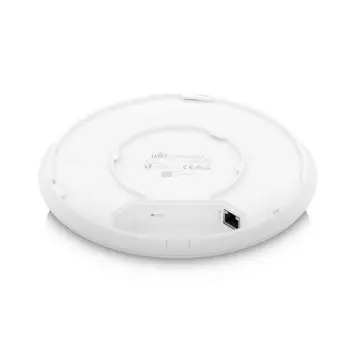

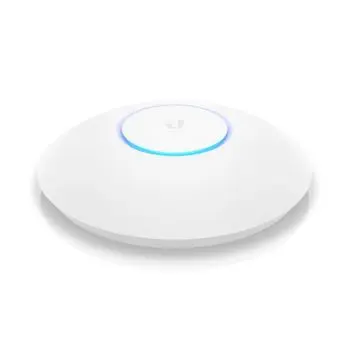

Ubiquiti UniFi WiFi 6 Pro Dual-Band Access Point | U6-Pro
The UniFi WiFi 6 Pro (U6-Pro) is a high-performance dual-band Wi-Fi 6 access point engineered for demanding home, office, and enterprise environments. With advanced 4×4 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz, it delivers an aggregate throughput of up to 5.3 Gbps, ensuring fast, stable, and low-latency wireless connectivity for dense client deployments.
Designed to support 300+ concurrent clients, the U6-Pro maintains consistent performance even in high-traffic scenarios. It also features guest traffic isolation, enterprise-grade security, and IP54-rated protection, making it suitable for both indoor and semi-outdoor deployments.
Fully managed through the UniFi Network Application, the U6-Pro can be deployed and configured in minutes.
Key Features
Wi-Fi 6 (802.11ax) Technology
Up to 5.3 Gbps Total Throughput
Dual-Band: 2.4 GHz & 5 GHz
5 GHz: 4×4 MU-MIMO with 160 MHz Channels
2.4 GHz: 2×2 MU-MIMO
Supports 300+ Concurrent Clients
Guest Traffic Isolation
IP54 Weather-Resistant Rating
PoE Powered (PoE+ Compatible)
Wall & Ceiling Mounting Kit Included
Managed via UniFi Network Application
Built for High-Density Wireless Environments
The U6-Pro is ideal for:
Corporate offices & co-working spaces
Educational institutions
Retail & hospitality
High-performance home networks
Its 4×4 MIMO on 5 GHz with 160 MHz channels enables high-capacity uplinks, faster data rates, and smoother roaming across large deployments.
Enterprise-Grade Security & Network Control
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
VLAN support (802.1Q)
Guest traffic isolation
Advanced QoS with per-user rate limiting
Centralized monitoring & configuration via UniFi Controller
Specifications
Mechanical
| Feature | Specification |
| Dimensions | Ø197 × 35 mm (Ø7.8 × 1.4 in) |
| Weight | 580 g (without mount) / 720 g (with mount) |
| Enclosure | Polycarbonate |
| Mount Material | Stainless Steel (SUS304) |
| Weather Rating | IP54 |
Hardware
| Feature | Specification |
| Network Interface | 1 × Gigabit Ethernet (PoE+) |
| Power Method | PoE |
| Voltage Range | 44–57V DC |
| Max Power Consumption | 13W |
| Management | Ethernet, Bluetooth |
Wireless Performance
| Band | MIMO | Max Data Rate | TX Power | Antenna Gain |
| 2.4 GHz | 2×2 UL MU-MIMO | 573.5 Mbps | 22 dBm | 4 dBi |
| 5 GHz | 4×4 DL/UL MU-MIMO | 4.8 Gbps | 26 dBm | 6 dBi |
Total Aggregate Throughput: Up to 5373 Mbps
Concurrent Clients: 300+ (350+ supported)
Environmental
| Item | Value |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC |
