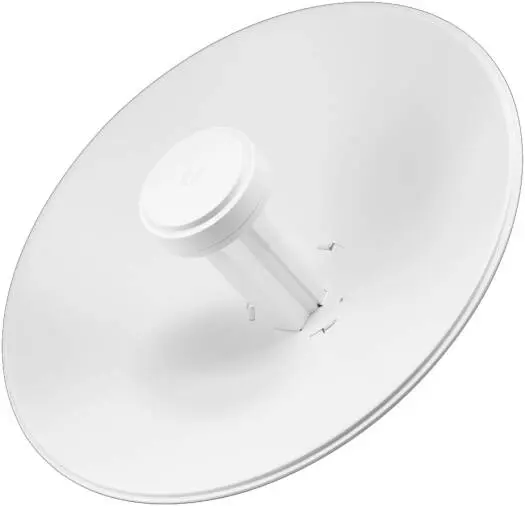

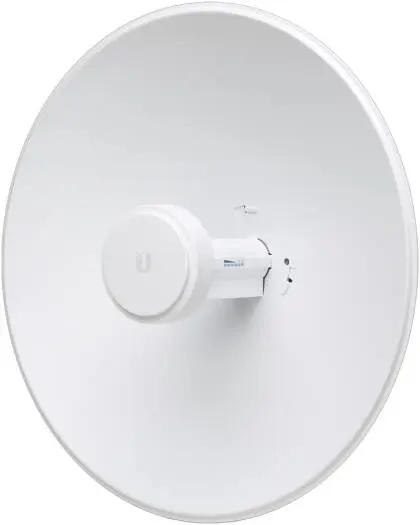

Ubiquiti PowerBeam M2 – High-Performance airMAX® Wireless Bridge (PBE-M2-400)
The PowerBeam M2 (PBE-M2-400) from Ubiquiti is a cost-effective, carrier-class wireless bridge designed for long-distance Point-to-Point (PtP) links in the 2.4 GHz band. Its advanced mechanical design focuses RF energy into a tight beamwidth, significantly reducing interference and improving noise immunity—ideal for congested RF environments.
Featuring InnerFeed® technology, the radio is integrated directly into the antenna feedhorn, eliminating RF cables and minimizing signal loss. Combined with airMAX® TDMA technology, the PowerBeam M2 delivers 150+ Mbps real TCP/IP throughput, low latency, and reliable performance for WISPs, CCTV backhaul, and remote site connectivity.
The device runs airOS®, an intuitive yet powerful firmware platform, and includes airView® spectrum analysis for real-time RF planning. Installation is fast and flexible thanks to the quick-assembly design and a mounting system with built-in mechanical tilt.
Key Advantages
airMAX® TDMA for superior throughput & low latency
Tight beamwidth for enhanced noise rejection
InnerFeed® design eliminates cable losses
Ideal for long-range PtP wireless bridges
Quick installation with built-in tilt adjustment
Technology Overview
airMAX® Technology
TDMA-based protocol eliminates hidden-node collisions
Optimized airtime efficiency and scalability
Intelligent QoS prioritizes voice & video traffic
Designed for high-capacity, long-distance links
airOS® Firmware
User-friendly web interface (HTML5-based)
Automatic channel selection & dynamic configuration
airMAX protocol support
Mobile-optimized management
airView® Spectrum Analyzer
Waterfall, waveform, and real-time spectral views
Identify noise sources and optimize channel planning
Recording & reporting for RF analysis
airControl® (Optional Central Management)
Centralized monitoring and device mapping
Mass firmware upgrades
Group management & task scheduling
Hardware & Design Features

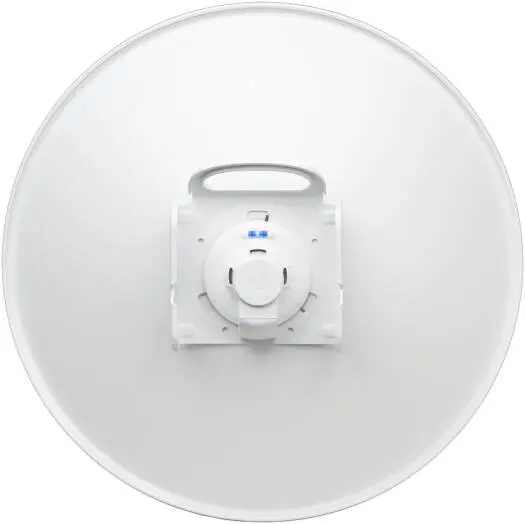

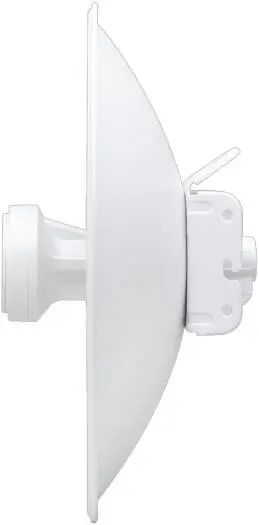

Built-in Mechanical Tilt: +20° up-tilt / −20° down-tilt
Quick Assembly: Reduced fasteners for faster deployment
Outdoor-Ready: Engineered for long-term external installations
Technical Specifications – PowerBeam M2 (PBE-M2-400)
| Category | Specification |
| Model | PBE-M2-400 |
| Wireless Technology | airMAX® |
| Frequency Band | 2.4 GHz |
| Mode | Point-to-Point Wireless Bridge |
| Throughput | 150+ Mbps (real TCP/IP) |
| Antenna Design | Integrated dish with InnerFeed® |
| Noise Immunity | High (focused beamwidth) |
| Firmware | airOS® 5 |
| Spectrum Analysis | airView® (integrated) |
| Mounting | Pole mount with mechanical tilt |
| Deployment | Outdoor |
Ideal Use Cases
Long-distance wireless backhaul
WISP Point-to-Point links
CCTV & IP camera backhaul
Remote building or site connectivity
