Product Description

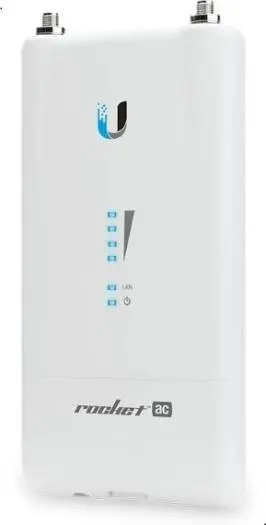

Ubiquiti Rocket 5AC Lite – High-Performance airMAX® ac Wireless Access Point (R5AC-LITE)
Boost your outdoor wireless links with the Rocket 5AC Lite, a compact yet powerful access point from Ubiquiti. Powered by airMAX® ac technology and enhanced with airPrism™, it delivers exceptional throughput and reliability for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) deployments—even in high-density RF environments.
Designed for service providers and enterprise networks, the Rocket 5AC Lite integrates seamlessly with UNMS Network Controller, giving you centralized management, remote firmware upgrades, client shaping, and billing capabilities—all from a single control plane. Its rugged, UV-stabilized outdoor enclosure and wide operating temperature range make it ideal for demanding installations.
Key Benefits
airMAX® ac + airPrism™ for superior 5 GHz performance
Ideal for PtP & PtMP wireless backhaul links
Centralized management with UNMS Network Controller
Gigabit Ethernet with passive PoE for simple deployment
Outdoor-ready design with enterprise-grade protection
Technical Specifications – Rocket 5AC Lite (R5AC-LITE)
| Category | Specification |
| Dimensions | 162 × 84 × 37 mm (6.4 × 3.3 × 1.5 in) |
| Weight | 250 g (8.82 oz) |
| Networking Interface | (1) × 10/100/1000 Mbps Ethernet |
| RF Connectors | (2) × RP-SMA (Waterproof) |
| LED Indicators | Power, LAN, (4) Signal Strength |
| Enclosure | Outdoor UV-stabilized plastic |
| Max. Power Consumption | 8.5 W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Operating Temperature | −40 to 80°C (−40 to 176°F) |
| Operating Humidity | 5% – 95% (Non-condensing) |
| ESD / EMP Protection | ±24 kV (Contact / Air for Ethernet) |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
Operating Frequency (MHz)
| Region | Frequency Band |
| Worldwide | 5150 – 5875 |
| US/CA – U-NII-1 | 5150 – 5250 |
| US/CA – U-NII-2A | 5250 – 5350 |
| US/CA – U-NII-2C | 5470 – 5725 |
| US/CA – U-NII-3 | 5725 – 5850 |
