Product Description

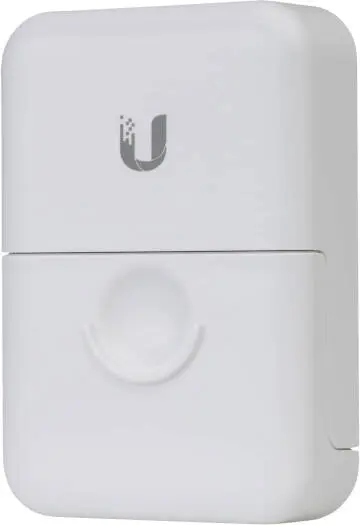

Ubiquiti Ethernet Surge Protector / ESD Suppressor for Outdoor PoE Devices | ETH-SP-G2
The Ubiquiti ETH-SP-G2 Ethernet Surge Protector is a plug-and-play ESD and surge suppression device designed to protect outdoor PoE-powered network equipment from damaging electrostatic discharge (ESD), lightning-induced surges, and transient voltage spikes. It safely diverts high-energy surges to ground before they reach your sensitive networking hardware.
Engineered for Gigabit Ethernet networks, the ETH-SP-G2 provides an additional layer of protection beyond the built-in ESD protection found in Ubiquiti airMAX® devices, making it ideal for outdoor wireless links, CCTV installations, and rooftop network deployments.
Key Features
Ethernet Surge Suppressor & ESD Protector
Designed for Outdoor PoE Network Devices
Compatible with Gigabit Ethernet (GbE)
Two RJ45 Ethernet Ports
Supports PoE Pass-Through
Plug-and-Play Installation
Diverts Surges Safely to Ground
Adds Extra Protection to airMAX® Devices
Compact, Weather-Resistant Design (IPX5)
Advanced ESD & Surge Protection
ESD Protection for Outdoor PoE Devices
The ETH-SP-G2 absorbs and redirects high-energy electrostatic discharge and surge currents away from connected devices, safely discharging them into the grounding system. This prevents permanent damage caused by lightning-induced surges and electrical noise.
Additional Layer of Defense
While Ubiquiti airMAX® devices already include built-in ESD protection, the ETH-SP-G2 provides enhanced protection at the Ethernet line level, significantly improving reliability in harsh outdoor environments.
Simple Plug-and-Play Installation
Install inline between two Ethernet cables
Connect the ground wire to a proper grounding point
No configuration or software required
Ideal for fast deployment on towers, rooftops, poles, and outdoor enclosures.
Technical Specifications
Mechanical
| Feature | Specification |
| Dimensions | 91 × 61 × 32.5 mm (3.6 × 2.4 × 1.3") |
| Weight | 80 g (2.8 oz) |
| Weatherproofing | IPX5 |
Hardware & Protection
| Feature | Specification |

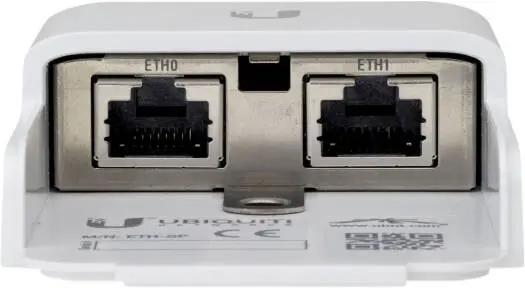

| Network Interfaces | (2) RJ45 Female Connectors |
| Data Line Protection | Gigabit Ethernet (GbE) |
| PoE Support | Yes |
| ESD / EMP Protection | Absorbs transient current (100V/s to 1kV/µs) |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Max Insulation Resistance | 1 GΩ @ 50V |
| Max Capacitance | 1.0 pF @ 1 MHz |
Environmental
| Feature | Specification |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
| Operating Humidity | 10% – 90% Non-Condensing |
| Shock & Vibration | ETSI300-019-1.4 Certified |
Ideal Use Cases
Outdoor airMAX® wireless links
Rooftop and tower-mounted radios
PoE-powered access points
Outdoor IP cameras & CCTV systems
WISP and enterprise outdoor networks
