Product Description

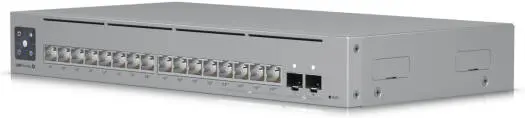

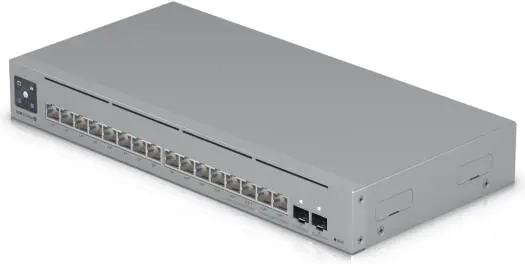

Ubiquiti Switch Pro Max 16 PoE Managed Switch, 2.5G, PoE++ 180W, 10G SFP+, Layer 3, Etherlighting™ | USW-Pro-Max-16-PoE (180W)
The Ubiquiti Switch Pro Max 16 PoE is a high-performance Layer 3 managed network switch engineered for modern enterprise, SMB, and high-density UniFi deployments. It combines multi-gigabit connectivity, high-power PoE++ output, and advanced Layer 3 routing features in a compact, versatile form factor.
With 16 total Ethernet ports, including 2.5GbE, PoE++ (60W) support, and dual 10G SFP+ uplinks, this switch is ideal for powering Wi-Fi 7 access points, IP cameras, VoIP systems, and other power-hungry network devices—while maintaining ultra-low latency and high switching performance.
Key Features
16-Port Managed Switch (Layer 3)
4 × 1/2.5GbE Ports + 12 × 1GbE Ports
PoE / PoE+ / PoE++ Support
Total PoE Budget: 180W
Up to 60W PoE++ Per Port
2 × 10G SFP+ Uplink Ports
84 Gbps Switching Capacity
62.496 Mpps Forwarding Rate
1.3" LCM Touchscreen Display
Etherlighting™ Port Identification
Managed via UniFi Network Application
High-Power PoE for Demanding Devices
The USW-Pro-Max-16-PoE delivers up to 180W total PoE output, supporting:
PoE (15.4W)
PoE+ (30W)
PoE++ (60W)
This makes it ideal for:
Wi-Fi 6E / Wi-Fi 7 access points
PTZ & 4K IP cameras
VoIP phones
IoT & smart building devices
Enterprise-Grade Performance
Non-blocking throughput: 42 Gbps
Switching capacity: 84 Gbps
Forwarding rate: 62.496 million packets per second
Ensures smooth traffic flow even in high-density and high-bandwidth environments.
Advanced Layer 3 & Network Intelligence
Supports professional routing and segmentation features, including:
Inter-VLAN routing
Static routing
DHCP server & relay
ACL-based network isolation
Advanced traffic control
Perfect for enterprise networks, offices, schools, hotels, and data-driven environments.

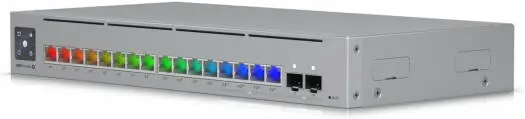

Etherlighting™ & Touchscreen Control
Etherlighting™ visually identifies port location, speed, VLAN, and network status
1.3" touchscreen display provides real-time system status and quick diagnostics
Technical Specifications
Mechanical
| Feature | Specification |
| Dimensions | 325.1 × 160 × 43.7 mm |
| Weight | 2.1 kg |
| Enclosure | SGCC Steel |
Hardware & Power
| Feature | Specification |
| Ethernet Ports | 12 × GbE, 4 × 1/2.5GbE |
| Uplink Ports | 2 × 10G SFP+ |
| PoE Ports | 12 × PoE/PoE+, 4 × PoE++ |
| Max PoE Output | 60W per PoE++ port |
| Total PoE Budget | 180W |
| Power Supply | 54V DC, 210W |
| Max Power Consumption | 30W (excluding PoE) |
Performance
| Feature | Specification |
| Non-Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
Environment & Compliance
| Feature | Specification |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10% – 90% Non-Condensing |
| Certifications | CE, FCC, IC |
Management & Software
UniFi Network Application
Ethernet In-Band Management
Etherlighting™ Support
Application Requirement: UniFi Network v8.1.127+
