Product Description

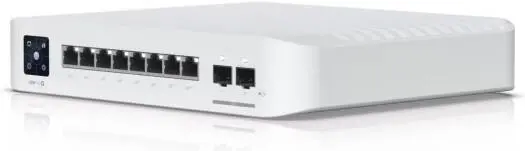

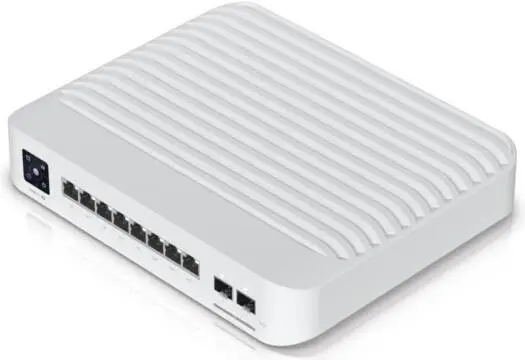

Ubiquiti UniFi Switch Pro 8 PoE (USW-Pro-8-PoE)
Compact Layer 3 Switch with PoE+, PoE++ & 10G SFP+ Uplinks
The Ubiquiti UniFi Switch Pro 8 PoE is a powerful Layer 3 managed switch designed for high-performance edge and aggregation deployments where space, power, and flexibility matter. With 8× Gigabit Ethernet ports, including PoE+ and PoE++ output, plus 2× 10G SFP+ uplinks, it delivers enterprise-grade performance in a compact, wall-mountable form factor.
Offering up to 120W total PoE availability, the USW-Pro-8-PoE can power demanding devices such as Wi-Fi 6/6E access points, PTZ cameras, and other high-power PoE++ equipment. Management is simple and intuitive via the 1.3" touchscreen, UniFi Network application, and AR switch management, providing clear visibility and control across your UniFi network.
Key Features
8× Gigabit Ethernet ports
6× PoE+ (30W) and 2× PoE++ (60W) ports
120W total PoE budget
2× 10G SFP+ uplink ports
Layer 3 switching for advanced routing
1.3" color touchscreen for real-time status
Compact & wall-mountable design
Centralized control via UniFi Network
Ideal Use Cases
Powering high-performance UniFi access points
Edge switching with PoE++ requirements
Small enterprise & branch office networks
Wall-mounted installations with limited space
Specifications
Mechanical
| Item | Details |
| Dimensions | 200 × 248 × 44 mm |
| Weight | 2.1 kg |
| Enclosure | Polycarbonate & metal |
| Mounting | Wall-mount kit included |
Hardware & Performance
| Item | Details |
| Ethernet Ports | 8× GbE RJ45 |
| SFP+ Ports | 2× 10G |
| Non-Blocking Throughput | 28 Gbps |
| Switching Capacity | 56 Gbps |
| Layer | Layer 3 |
PoE Capabilities
| Item | Details |
| Total PoE Budget | 120W |
| PoE Standards | PoE (15W), PoE+ (30W), PoE++ (60W) |
| PoE Ports | 6× PoE+ / 2× PoE++ |
Power & Management
| Item | Details |
| Power Supply | Internal AC/DC |
| Input Voltage | 100–240V AC |
| Max Power Consumption | 30W (excluding PoE output) |
| Management Interface | Ethernet In-Band |
| Display | 1.3" Touchscreen |
| Button | Factory reset |
Environmental & Compliance
| Item | Details |
| Operating Temperature | -5 to 45 °C |
| Operating Humidity | 10–90% (non-condensing) |
| Certifications | CE • FCC • IC |
