Product Description

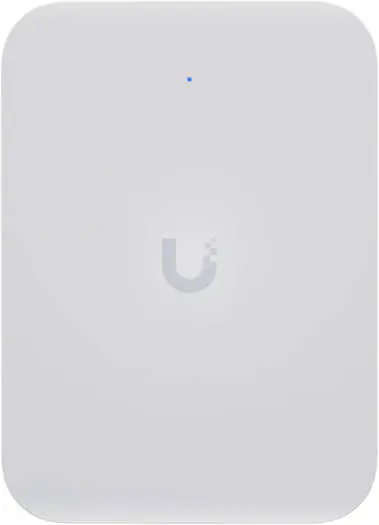

Ubiquiti U7 In-Wall WiFi 7 Access Point, Dual-Band, 2.5GbE, PoE+, MU-MIMO, AI Mesh | U7-IW
The Ubiquiti UniFi U7 In-Wall is a high-performance indoor WiFi 7 access point engineered for modern offices, hotels, campuses, and high-density residential deployments. Built on the latest WiFi 7 (802.11be) standard, it delivers ultra-fast wireless speeds, intelligent roaming, and enterprise-grade security in a compact in-wall form factor.
With dual-band connectivity, 2×2 MU-MIMO, and EHT channel support up to 240 MHz, the U7-IW provides combined wireless speeds of up to 4.3 Gbps, ensuring smooth performance for bandwidth-intensive applications. A 2.5GbE uplink and built-in PoE+ input/output switch simplify installation while supporting wired devices directly from the access point.
Key Features
WiFi 7 (802.11be) In-Wall Access Point
Dual-Band 2.4 GHz & 5 GHz
Up to 4.3 Gbps Total Wireless Throughput
2×2 DL/UL MU-MIMO on Both Bands
2.5GbE Uplink for Multi-Gigabit Networks
Built-In PoE+ Input & PoE Output
Supports 200+ Concurrent Clients
AI-Enhanced Mesh & Seamless Roaming
Advanced Security & Guest Networking
Managed via UniFi Network & Mobile Apps
High-Speed WiFi 7 Performance
The U7-IW leverages next-generation WiFi 7 features to deliver:
5 GHz speeds up to 4.3 Gbps (240 MHz channels)
2.4 GHz speeds up to 688 Mbps
Improved efficiency, lower latency, and higher capacity
Ideal for high-density environments such as hotels, offices, apartments, and enterprise spaces.

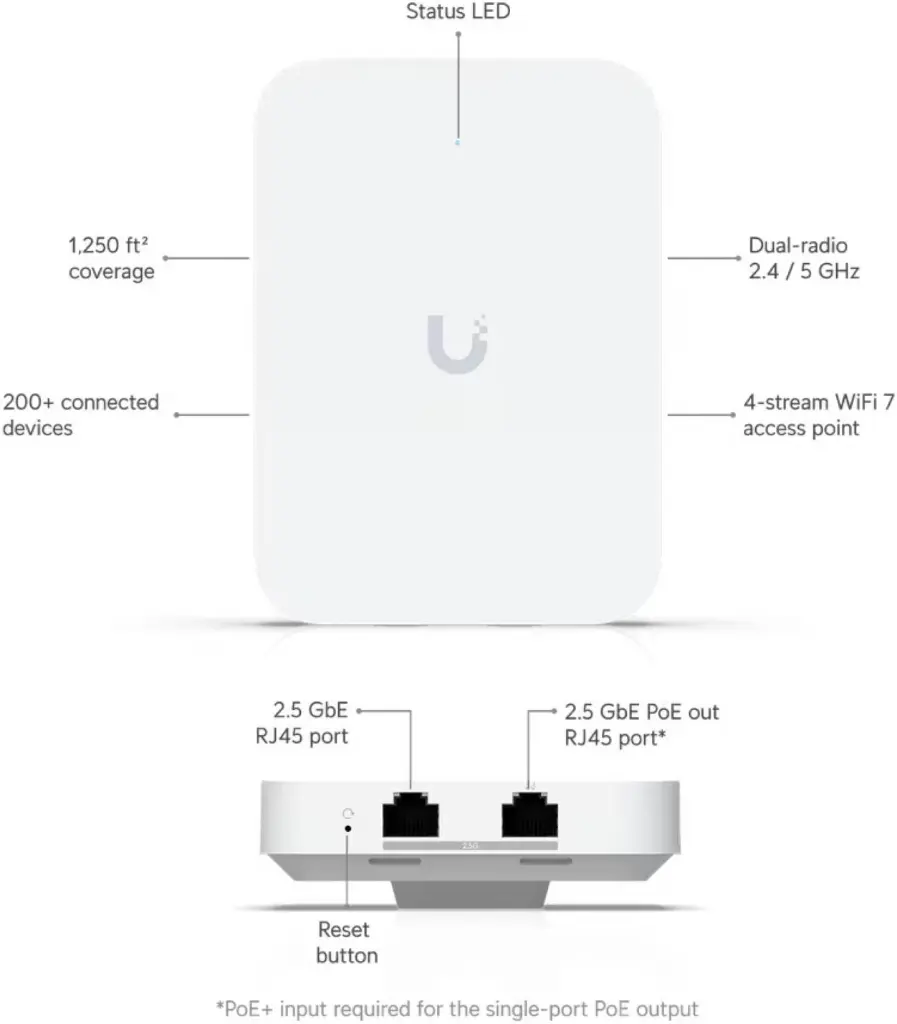

Integrated 2.5GbE & PoE+ Switching
2.5GbE uplink ensures full utilization of WiFi 7 speeds

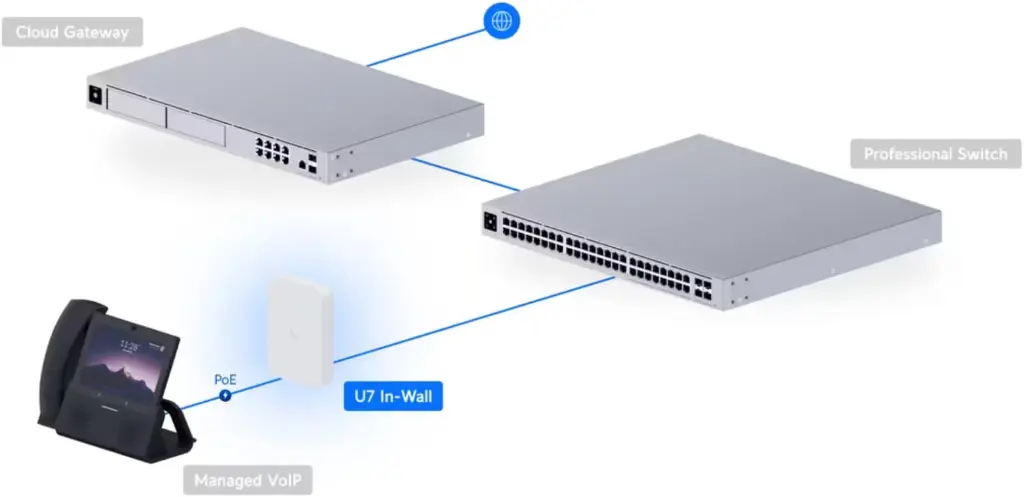

Built-in PoE+ input and PoE output allows powering downstream devices
Replaces the need for a separate wall switch in many installations
Perfect for clean, professional in-wall deployments.
Enterprise-Grade Wireless Intelligence
Supports advanced UniFi features including:
AI-enhanced wireless meshing
Band steering & load balancing
Fast roaming (802.11r / 802.11k / 802.11v)
Passpoint (Hotspot 2.0)
Private Pre-Shared Keys (PPSK)
Dynamic VLAN assignment via RADIUS
Guest Access & Security
Guest network isolation
Custom captive portal with branding
Voucher & payment-based authentication
WPA2 / WPA3 Enterprise security
RADIUS over TLS (RadSec)
Designed for secure, scalable, and professional guest WiFi deployments.
Technical Specifications
Mechanical
| Feature | Specification |
| Dimensions | 137 × 98.7 × 30.2 mm |
| Weight | 400 g |
| Enclosure | Polycarbonate & Aluminum Alloy |

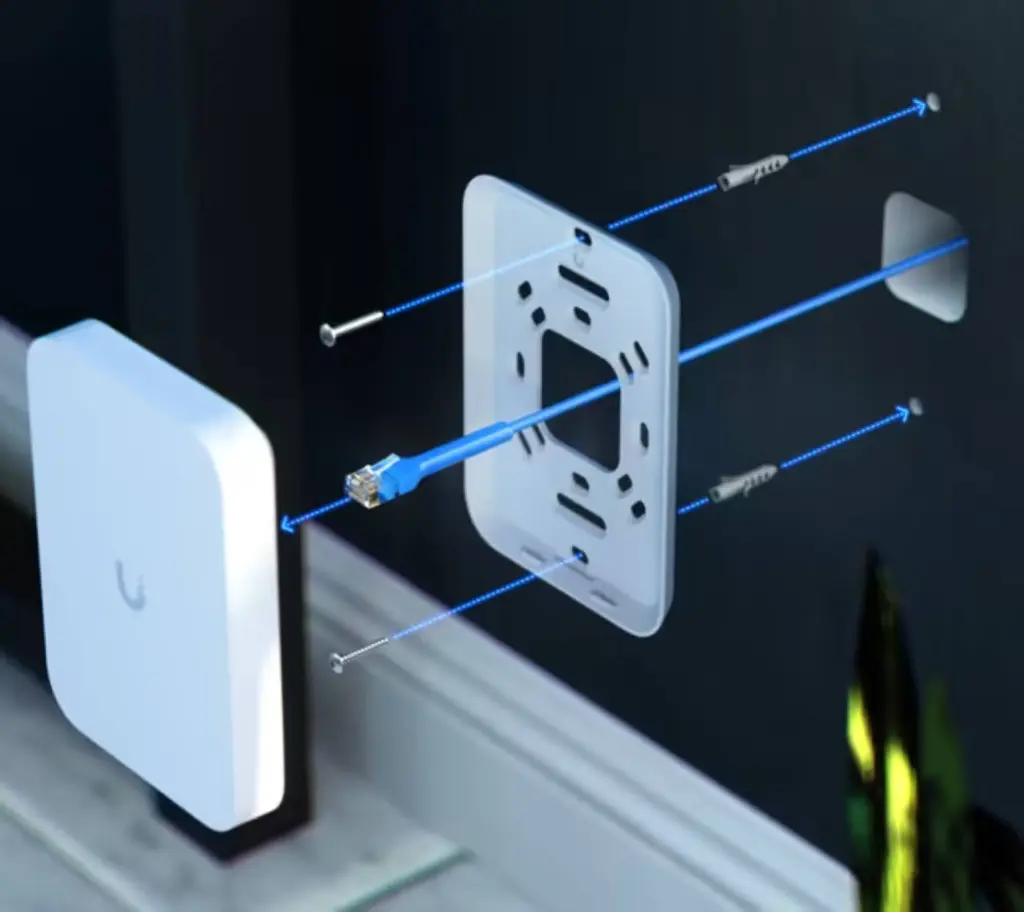

| Mounting | In-Wall (Metal Mount Included) |
Wireless
| Feature | Specification |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| MIMO | 2×2 MU-MIMO (2.4 GHz & 5 GHz) |
| Max Data Rate | 5 GHz: 4.3 Gbps / 2.4 GHz: 688 Mbps |
| Antenna Gain | 5 GHz: 8 dBi / 2.4 GHz: 4 dBi |
| Coverage Area | 115 m² (1,250 ft²) |
| Max Clients | 200+ |
Networking & Power
| Feature | Specification |
| Ethernet Ports | (3) × 2.5GbE RJ45 |
| Uplink | 2.5GbE |
| Power Method | PoE+ |
| PoE Output | Yes (Requires PoE+ input) |
| Max Power Consumption | 13W (excluding PoE output) |
| Voltage Range | 42.5–57V DC |
Environment & Compliance
| Feature | Specification |
| Operating Temperature | -30°C to 40°C |
| Operating Humidity | 5–95% Non-Condensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
