Product Description

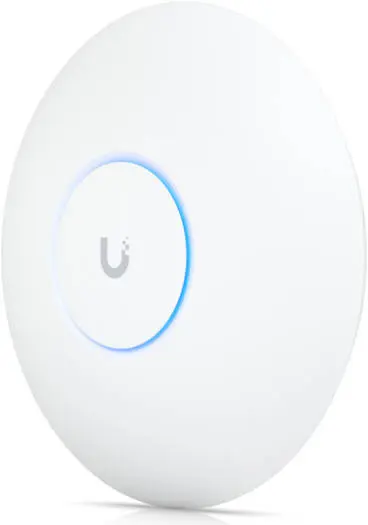

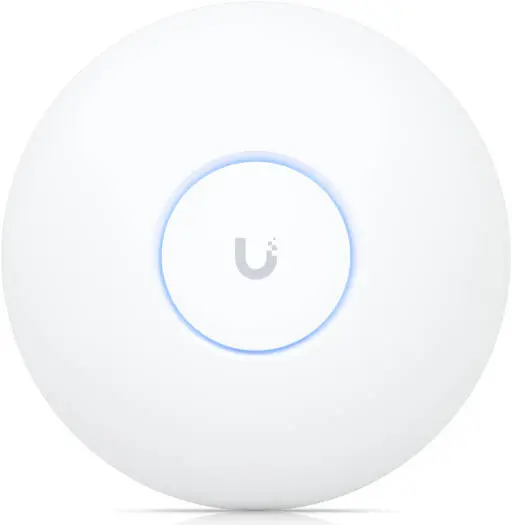

Ubiquiti U7 Pro Max Ceiling-Mounted WiFi 7 Access Point, 6 GHz, 8 Spatial Streams, 2.5GbE U7-Pro-Max
The Ubiquiti UniFi U7 Pro Max is a next-generation, enterprise-grade WiFi 7 access point engineered for high-density, large-scale environments that demand extreme performance, reliability, and intelligent RF optimization. Featuring 8 spatial streams, tri-band operation with 6 GHz support, and a dedicated spectral scanning engine, the U7 Pro Max delivers ultra-fast, interference-free wireless connectivity for modern networks.
Designed for ceiling or wall mounting, it seamlessly integrates into UniFi ecosystems, supporting 500+ concurrent devices while maintaining exceptional throughput and low latency.
Key Features
WiFi 7 (802.11be) with 6 GHz Support
Up to 15.0 Gbps Aggregate Wireless Throughput
8 Spatial Streams (Tri-Band)
500+ Concurrent Client Support
Dedicated Spectral Scanning Engine
2.5GbE High-Speed Ethernet Uplink
Advanced MU-MIMO & OFDMA
Enterprise-Grade Security (WPA3 / PPSK)
Ceiling & Wall Mounting Included
Managed via UniFi Network Application
Extreme WiFi 7 Performance
The U7 Pro Max delivers class-leading wireless speeds across all bands:
6 GHz: up to 5.7 Gbps (320 MHz channels)
5 GHz: up to 8.6 Gbps (240 MHz channels)
2.4 GHz: up to 688 Mbps
With WiFi 7 EHT channels, it enables ultra-low latency, higher capacity, and smoother performance for bandwidth-intensive applications.
Built for High-Density Environments
Designed to excel in crowded deployments such as:
Corporate offices & headquarters
Universities & educational campuses
Convention centers & auditoriums
Hospitals & enterprise facilities
With support for 500+ simultaneous clients, the U7 Pro Max ensures consistent performance even under heavy load.
Advanced RF Intelligence
A dedicated spectral scanning engine continuously analyzes the RF environment to:
Detect interference sources
Optimize channel selection
Improve stability and roaming performance
This results in cleaner spectrum usage and more reliable connections.
Enterprise-Grade Security & Control
WPA-PSK / WPA-Enterprise / WPA2 / WPA3 / PPSK
VLAN tagging (802.1Q)
Guest traffic isolation
Per-user rate limiting & QoS
Secure UniFi centralized management
Technical Specifications
Mechanical
| Feature | Specification |
| Dimensions | Ø206 × 46 mm (Ø8.1 × 1.8") |
| Weight | 680 g (1.5 lb) |
| Enclosure | Polycarbonate & aluminum |
| Mounting | Ceiling / Wall (Included) |
| Operating Temp | -30°C to 50°C |
| Certifications | CE, FCC, IC |
Wireless Performance
| Band | MIMO | Max Speed | Bandwidth |
| 2.4 GHz | 2×2 MU-MIMO | 688 Mbps | 40 MHz |
| 5 GHz | 4×4 MU-MIMO | 8.6 Gbps | 240 MHz |
| 6 GHz | 2×2 MU-MIMO | 5.7 Gbps | 320 MHz |
8 Total Spatial Streams
500+ Concurrent Clients
8 BSSIDs per Radio
Networking & Power
| Feature | Specification |
| Ethernet | (1) × 1/2.5 GbE RJ45 |
| Power Method | PoE+ |
| Voltage Range | 44–57V DC |
| Max Power Consumption | 25W |
