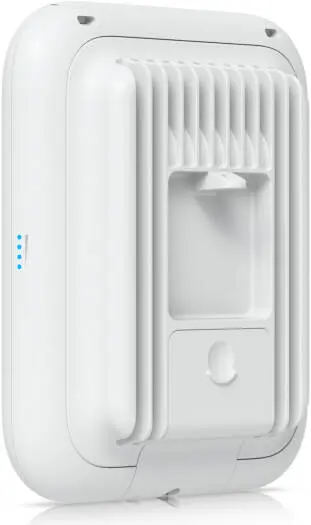

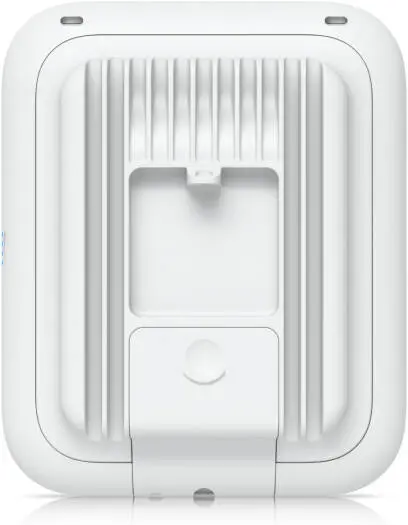

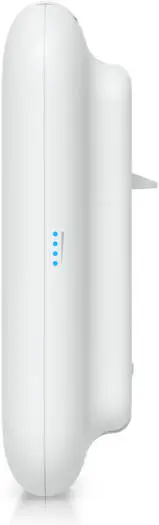

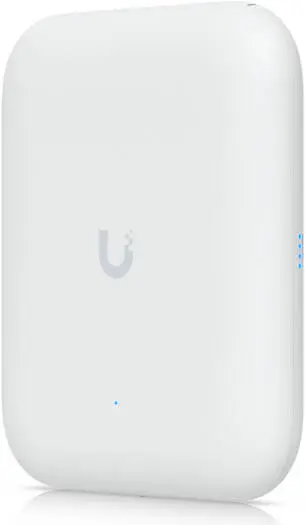

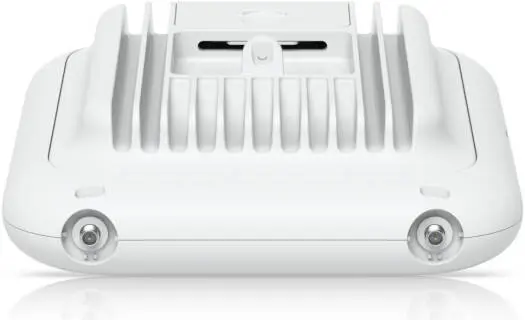

Ubiquiti U7 Pro Outdoor Wi-Fi 7 Access Point | U7-PRO-OUTDOOR
Product Description
The Ubiquiti U7 Pro Outdoor is a next-generation all-weather Wi-Fi 7 outdoor access point, purpose-built for high-density outdoor environments that demand extreme performance, long range, and rock-solid reliability. Featuring 6 spatial streams, advanced 6 GHz AFC support, and an integrated directional super-antenna, it delivers exceptional throughput and coverage for campuses, warehouses, stadiums, resorts, and smart cities.
Powered by Wi-Fi 7 (802.11be), the U7 Pro Outdoor achieves blazing-fast speeds of up to 5.8 Gbps on the 6 GHz band, while supporting wireless meshing, seamless roaming, and enterprise-grade security features. Its IP67 weatherproof design, PoE+ power, and articulating wall/pole mount ensure flexible deployment in harsh outdoor conditions.
Managed through UniFi Network, the U7 Pro Outdoor offers advanced guest access, captive portals, VLANs, and full hotspot functionality—making it ideal for both enterprise infrastructure and public Wi-Fi deployments.
Specifications
Overview
| Category | Specification |
| Model | U7-PRO-OUTDOOR |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max Client Count | 300+ |
| Uplink | 2.5 GbE |
| Power Method | PoE+ |
| Max Power Consumption | 21W |
| Weatherproofing | IPX6 / IP67 (with cable-gland door kit) |
| Mounting | Wall & Pole (Mounts Included) |
| NDAA Compliant | Yes |
Dimensions & Weight
| Category | Specification |
| Dimensions (No Mount) | 170 × 208 × 66.5 mm |
| Dimensions (With Mount) | 170 × 208 × 121.8 mm |
| Weight | 1.2 kg (Device) / 1.33 kg (With Mount) |
Wireless Performance
| Category | Specification |
| MIMO | 2×2 DL/UL MU-MIMO (All Bands) |
| Max Data Rate – 6 GHz | 5.8 Gbps (BW320) |
| Max Data Rate – 5 GHz | 4.3 Gbps (BW240) |
| Max Data Rate – 2.4 GHz | 688 Mbps (BW40) |
| Supported Data Rates | Wi-Fi 7: 7.3 Mbps – 5.8 Gbps Wi-Fi 6/6E: up to 2.4 Gbps Wi-Fi 5: up to 1.7 Gbps |
Antennas & RF
| Band | Antenna Gain |
| 6 GHz | 10 dBi internal (90° × 45°) |
| 5 GHz | 11 dBi internal (90° × 45°) 8 dBi external (360° × 15°) |
| 2.4 GHz | 8 dBi internal (90° × 90°) 6 dBi external (360° × 15°) |
| Max TX Power | 26 dBm (6 / 5 GHz), 23 dBm (2.4 GHz) |
| Max BSSIDs | 8 per radio |
Advanced Wireless Features
| Feature | Supported |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11k / v / r | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Portal & Branding | Yes |
| Voucher / Payment / Password Auth | Yes |
| External Portal Integration | Yes |
| Guest & Device Isolation | Yes |
| PPSK | Yes |
| Wi-Fi Speed Limiting | Yes |
| Wi-Fi Scheduling | Yes |
| Dynamic VLAN | Yes |
| RADIUS over TLS | Yes |
Hardware & Environment
| Category | Specification |
| Networking Interface | 1 × 1/2.5 GbE RJ45 |
| Voltage Range | 42.5 – 57V DC |
| Wind Loading | 74.6 N @ 200 km/h |
| Pole Diameter | 1–2.5" (25–63.5 mm) |
| Enclosure | UV Polycarbonate & Aluminum |
| LEDs | Power (White/Blue), Mesh ×4 (Blue) |
| Operating Temperature | -30°C to 60°C |
| Humidity | 5–95% RH (Non-condensing) |
Software & Management
| Category | Specification |
| Management Platform | UniFi Network 9.0.114+ |
| Mobile App | UniFi Network App (iOS 10.20.2+) |
Certifications
FCC
IC
NDAA Compliant
