Ubiquiti UISP Optical Transceiver, MIPS 100 MHz, GPON Port, GbE SFP Connectivity, Downstream 2.488 Gbps, Upstream 1.244 Gbps UF-Instant

Ubiquiti UISP UFiber Instant GPON Optical Transceiver | UF-Instant

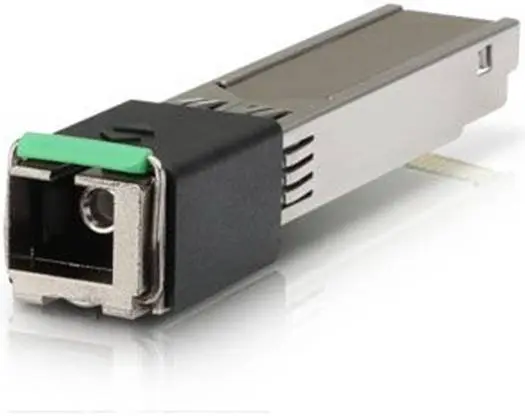

The UFiber Instant (UF-Instant) is a compact, high-performance GPON CPE built in an SFP form factor, designed for seamless fiber-to-Ethernet conversion in UISP and GPON deployments. Powered directly through the SFP interface, it delivers carrier-grade GPON performance with advanced Layer 2/3 management in a space-saving module.

High-Speed GPON Connectivity

• GPON WAN (ITU-T G.984) with SC/APC connector

• Downstream: up to 2.488 Gbps

• Upstream: up to 1.244 Gbps

• Supports point-to-multipoint GPON architectures

• Up to 20 km GPON link distance

Compact SFP Design

• Integrated SGMII Ethernet LAN over SFP

• SFP-powered (3.3V), no external power required

• Ideal for use with compatible switches and routers with SFP ports

• Ultra-small footprint for clean, efficient installations

Advanced Management & Reliability

• In-band Ethernet & PON management

• Powerful Layer 2/3 switching and control

• Stable optical performance with Class B+ optics

• Designed for service providers and ISP deployments

Key Specifications

• Processor: MIPS 100 MHz

• Memory: 32 MB DDR

• Interfaces:

  • 1 × GPON WAN (SC/APC)

  • 1 × SGMII Ethernet LAN (SFP)

• Optical Power Range:

  • TX: 1.5 to 5 dBm

  • RX: −28 to −8 dBm

• Max Power Consumption: 2 W

• Dimensions: 69.5 × 13.7 × 11.3 mm

• Weight: 30 g

• Operating Temperature: −10 to 45 °C

• Operating Humidity: 10–90% non-condensing

• Certifications: CE, FCC, IC
