Ubiquiti UniFi AC Pro – Ceiling-Mount Wi-Fi 5 Access Point | UAP-AC-PRO

The UniFi AC Pro (UAP-AC-PRO) is a high-performance Wi-Fi 5 (802.11ac) access point designed for large offices, enterprises, schools, and hospitality environments. With 6 spatial streams (3×3 MIMO on both bands), robust roaming features, and enterprise-grade security, it delivers fast, reliable wireless connectivity for high-density deployments—indoors or outdoors.

High-Capacity Dual-Band Performance

• Wi-Fi 5 (802.11ac) with 6 spatial streams

• 5 GHz: up to 1.3 Gbps (80 MHz channels)

• 2.4 GHz: up to 450 Mbps (40 MHz channels)

• 3×3 DL MU-MIMO on both 2.4 GHz and 5 GHz for efficient multi-client throughput

• Coverage up to 140 m² (1,500 ft²) and 250+ concurrent clients

Enterprise Roaming & RF Optimization

• Band Steering, Wireless Meshing

• Fast Roaming with 802.11r, 802.11k, 802.11v

• Advanced Radio Management for dynamic RF tuning

• Passpoint 2.0 support for seamless secure access

Advanced Security & Guest Access

• Up to 8 BSSIDs per radio

• Guest portals with branding, vouchers, payments, and external portal support

• WPA/WPA2-Enterprise, PPSK, RADIUS over TLS

• Dynamic VLAN, Client Isolation, Guest Network Isolation

• Speed limiting and Wi-Fi schedules

Flexible Installation & Power

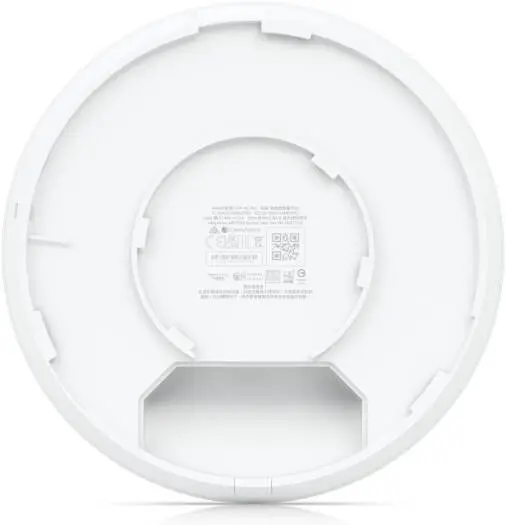

• Ceiling or wall mounting (Pro Mount supported)

• PoE powered (44–57 V DC); PoE adapter included

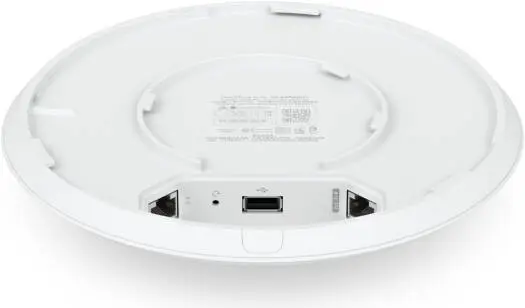

• Dual Gigabit Ethernet ports for flexible uplinks or bridging

• Durable polycarbonate enclosure suitable for indoor/outdoor use

Key Specifications

• Wi-Fi Standard: Wi-Fi 5 (802.11ac)

• MIMO: 3×3 on 2.4 GHz & 5 GHz (DL MU-MIMO)

• Max TX Power: 22 dBm (both bands)

• Antenna Gain: 3 dBi (both bands)

• Channel Widths: 20 / 40 / 80 MHz

• Max Power Consumption: 9 W

• Ports: 2 × GbE RJ45

• Dimensions: Ø196.7 × 35 mm

• Weight: 350 g (device), 450 g (with mount)

• Operating Temp: −10 to 70 °C

• Certifications: CE, FCC, IC, Anatel

• NDAA Compliant: Yes
