Product Description
Ubiquiti UniFi Express 7 – Super-Compact 10G Cloud Gateway with WiFi 7
Model: UX7
The UniFi Express 7 (UX7) is a mesh-scalable, ultra-compact 10G Cloud Gateway with integrated WiFi 7, designed for modern homes, small offices, and branch deployments that demand high performance, advanced security, and simple centralized management.
Despite its compact size, the UX7 supports 30+ UniFi devices, 300+ connected users, and delivers 2.3 Gbps IDS/IPS throughput, making it a powerful all-in-one gateway, router, and access point.
Key Features
Integrated WiFi 7 (802.11be)
10 GbE WAN Port for Ultra-Fast Internet
Mesh-Scalable UniFi Cloud Gateway
Supports 30+ UniFi Devices
300+ Concurrent Users
2.3 Gbps IDS/IPS Throughput
Advanced Firewall & Threat Protection
License-Free SD-WAN & VPN
Super-Compact Desktop Design
UniFi Network App & Cloud Management
Powerful Networking in a Compact Design
The UniFi Express 7 combines enterprise-grade routing, security, and WiFi 7 performance into a palm-sized device. It’s ideal for:
Homes with multi-gig internet
Small & medium businesses
Branch offices and retail locations
Mesh WiFi expansions
Secure remote work environments
Integrated WiFi 7 Performance
Enjoy next-generation wireless speeds with tri-band WiFi 7:
6 GHz: up to 5.7 Gbps
5 GHz: up to 4.3 Gbps
2.4 GHz: up to 688 Mbps
2×2 MU-MIMO on all bands
Coverage up to 160 m² (1,750 ft²)
Backward compatible with WiFi 6, 6E, 5, and older devices.
Enterprise-Grade Security & Control
Stateful & Layer-7 Application-Aware Firewall
IDS/IPS with 20,000+ CyberSecure signatures
Ad blocking & content filtering
VLAN & subnet segmentation
Guest traffic isolation
DPI & traffic identification
Advanced VPN & SD-WAN
License-free SD-WAN
Site-to-Site VPN (Site Magic, IPsec, OpenVPN)
One-click Teleport VPN
WireGuard, L2TP, OpenVPN servers
OpenVPN & WireGuard clients
Technical Specifications
Network & Performance
| Feature | Specification |

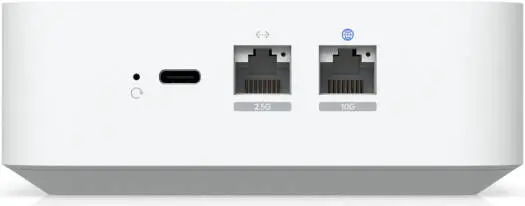

| WAN Port | 1 × 10 GbE RJ45 |
| LAN Ports | 1 × 2.5 GbE RJ45 |
| IDS/IPS Throughput | 2.3 Gbps |
| Managed Devices | 30+ UniFi devices |
| Concurrent Users | 300+ |
WiFi
| Band | Max Throughput | MIMO |
| 6 GHz | 5.7 Gbps | 2×2 MU-MIMO |
| 5 GHz | 4.3 Gbps | 2×2 MU-MIMO |
| 2.4 GHz | 688 Mbps | 2×2 MU-MIMO |
Hardware
| Feature | Specification |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| Memory | 3 GB |
| Power | USB-C (5V / 5A) |
| Max Power Consumption | 22W |

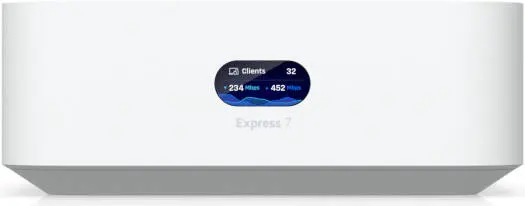

| Display | 0.96" Status Screen |
| Dimensions | 117 × 117 × 42.5 mm |
| Weight | 422 g |
