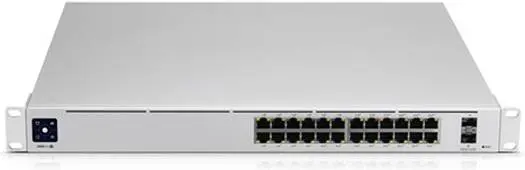

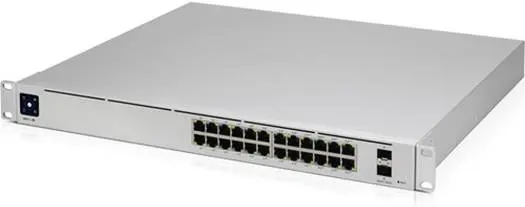

Ubiquiti Unifi Gen 2 10Gb Switch, 24xGigabit Ethernet, 88Gb/s Switching, Rack-Mountable, 65.47Mpps Forward, 2x10Gb/s SFP+ USW-PRO-24-POE

Ubiquiti UniFi Switch Pro 24 PoE Gen2 – 10Gb Layer 3 Managed Switch

Model: USW-PRO-24-POE

The UniFi Switch Pro 24 PoE (Gen 2) is a powerful enterprise-grade Layer 3 managed switch designed for high-performance UniFi networks. It combines multi-gigabit PoE power, 10G SFP+ uplinks, and advanced routing features in a rack-mountable, near-silent design—making it the ideal access-layer switch for modern offices, campuses, and commercial deployments.

Key Features

• 24 × Gigabit Ethernet Ports

• (16) 802.3at PoE+ Ports

• (8) 802.3bt PoE++ Ports

• Up to 400W Total PoE Power Budget

• 2 × 10G SFP+ Uplink Ports

• Layer 2 & Layer 3 Switching

• 88 Gb/s Switching Capacity

• 65.47 Mpps Forwarding Rate

• 1.3" Touchscreen Display

• UniFi SmartPower RPS Redundancy

• Near-Silent Cooling

• Rack-Mountable Design

• Managed via UniFi Network Controller

High-Power PoE for Demanding Devices

The USW-Pro-24-PoE delivers enterprise-class PoE performance, supporting everything from access points to power-hungry devices:

• 8 × PoE++ (802.3bt) – up to 60W per port

• 16 × PoE+ (802.3at) – up to 30W per port

• Total PoE Budget: 400W

Perfect for WiFi 6/7 APs, PTZ cameras, VoIP phones, and access control systems.

10Gb SFP+ Uplinks for High-Speed Core Connectivity

• 2 × 10Gb/s SFP+ ports

• Supports link aggregation for higher throughput and redundancy

• Ideal for core switch, router, or server uplinks

Advanced Layer 3 Networking

Beyond full Layer 2 features, the switch integrates key Layer 3 capabilities, including:

• Inter-VLAN routing

• Static routing

• DHCP server for locally managed networks

• Network isolation & ACLs

This makes it suitable for scalable enterprise and campus networks.

Smart Design & Management

• 1.3" touchscreen display for real-time status

• Near-silent cooling, suitable for offices and server rooms

• UniFi SmartPower RPS DC input for power redundancy

• Centralized management via UniFi Network Controller and UniFi Mobile App

Technical Specifications

Performance

• Switching Capacity: 88 Gb/s

• Forwarding Rate: 65.47 Mpps

Interfaces

• Ethernet: 24 × 1 GbE RJ45

• Uplink: 2 × 10G SFP+

PoE

• PoE Standards: 802.3at (PoE+) & 802.3bt (PoE++)

• Max PoE Budget: 400W

Mechanical

• Form Factor: Rack-mountable

• Display: 1.3" Touchscreen

• Cooling: Near-silent active cooling

Software

• Management: UniFi Network Controller

• Required Version: 5.10.5 or later
