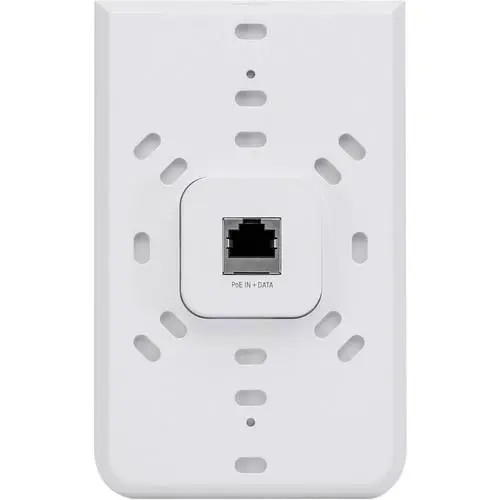

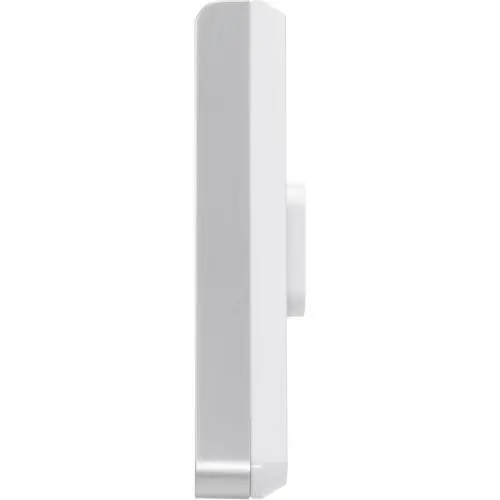

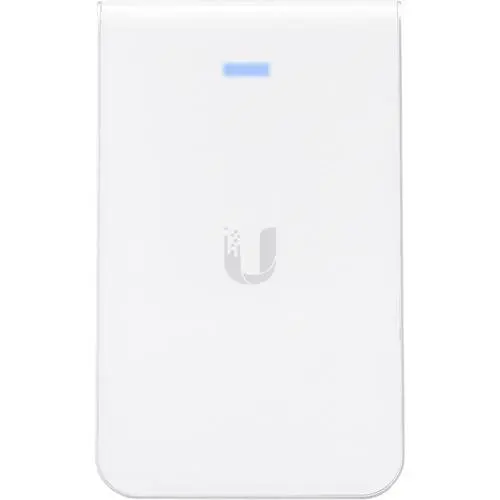

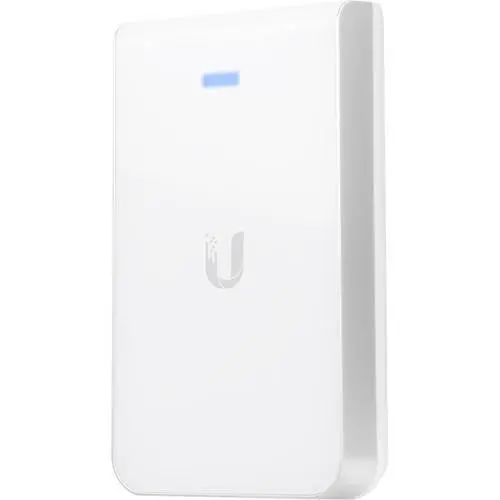

Ubiquiti UniFi In-Wall 2.4 / 5GHz AC Access Point UAP-AC-IW

Ubiquiti UniFi AC In-Wall Access Point (UAP-AC-IW) – Dual-Band 802.11ac Wi-Fi Access Point with Gigabit Ports & PoE Output

The Ubiquiti UniFi AC In-Wall (UAP-AC-IW) is a compact dual-band Wi-Fi 5 access point designed to transform an existing Ethernet wall connection into a powerful wireless access point and Gigabit switch. Ideal for hotels, offices, classrooms, and residential deployments, it provides reliable Wi-Fi coverage directly from a wall outlet while maintaining a clean, professional installation.

Powered via 802.3at PoE+, the device supports simultaneous dual-band connectivity using 2x2 MIMO technology, delivering wireless speeds of up to 300 Mbps on 2.4GHz and 867 Mbps on 5GHz. In addition to wireless connectivity, the access point includes three Gigabit Ethernet ports, allowing you to connect wired devices such as computers, VoIP phones, or switches.

One of the Ethernet ports also supports 48V PoE pass-through, enabling the device to power compatible network equipment directly from the wall-mounted access point.

Key Features

• Dual-band 802.11ac Wi-Fi access point

• Converts an Ethernet wall jack into a Wi-Fi access point and Gigabit switch

• 2x2 MIMO wireless technology for stable high-speed connections

• 3 × Gigabit Ethernet ports

• PoE pass-through to power compatible devices

• Managed through UniFi Controller software or UniFi mobile app

• Ideal for per-room Wi-Fi deployments

Wireless Performance

• Wi-Fi Standard: 802.11 a/b/g/n/ac

• 2.4GHz Speed: Up to 300 Mbps

• 5GHz Speed: Up to 867 Mbps

• Maximum TX Power:

  • 2.4 GHz: 20 dBm

  • 5 GHz: 20 dBm

• Supports 250+ concurrent clients

Networking & Power

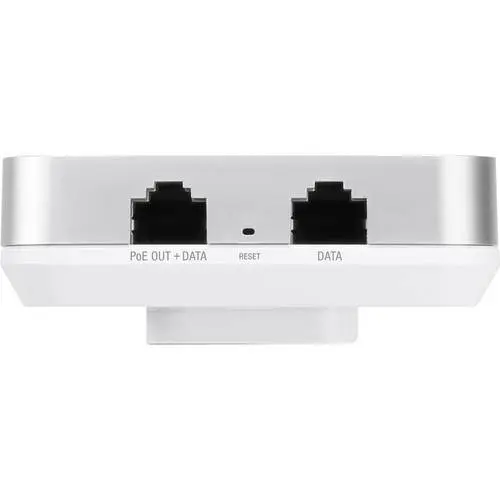

• Ports: 3 × 10/100/1000 Gigabit Ethernet

• Power Method: 802.3at PoE+

• PoE Output: 48V pass-through (PoE Out)

• Maximum Power Consumption:

  • 7W (standard)

  • 19W with PoE pass-through

Security & Network Management

• Wireless Security: WEP, WPA/WPA2-PSK, WPA-Enterprise

• VLAN Support: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest Network Isolation: Supported

• BSSID: Up to 8 per radio

Physical Specifications

• Dimensions: 139.7 × 86.7 × 25.75 mm

• Weight: 200 g

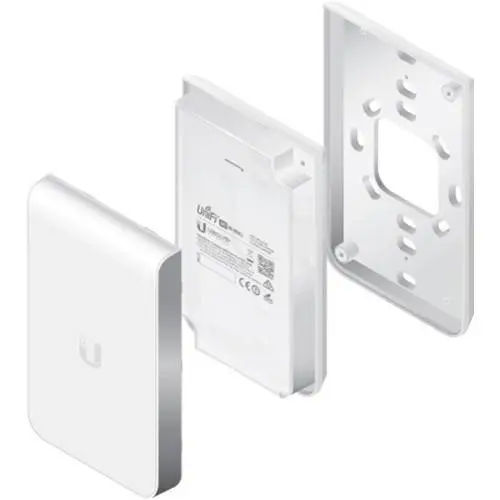

• Mounting: 1-Gang electrical wall box

• Operating Temperature: −10°C to 50°C

• Operating Humidity: 5–95% non-condensing
